Product details

Product Description

Light steel villas are characterized by safety, comfort and fast construction speed. Because the main structure is a light steel structure and the shape is particularly beautiful, this new type of house is called a light steel villa.

Light steel villa, also known as light steel structure house, its main material is light steel keel synthesized from hot-dip galvanized aluminum steel strip through cold rolling technology.

The light steel villa utilize the 100% cold-bend thin wall steel as the structure body and can be used to build buildings within 6 floors. The main building component of this system is the frame bridge,which is composed by the galvanized cold-bending high frequency welded light thin wall rectangular pipe and the triangle.C type, triangle v type connection. All these prefabricated components are transferred to the construction site to be installed into the structure body. After that the interior, exterior wall panels and roof profile panels are laid out, while the heat and sound insulation material are filled into the space in the wall and floor deck. This product solve the problem of "hot bridge, bad fire resistance".

1. Shock resistance: It can withstand 9 rare earthquakes and is suitable for areas with seismic intensity above 8

2. Wind resistance: resistant to 70m/s hurricane, wind resistance rating is 14 or above

3. Durability: The main structure can last for more than 150 years

4. Fire resistance: refractory time of up to 1~4 hours according to different designs

5. Sound insulation: the sound insulation of the external wall can reach 75dB, and the inner wall can reach 55dB.

6. Heat Insulation: The thermal resistance of 200mm thick composite wall can reach 3.2m2K/W, which is 11 times that of traditional buildings of the same thickness.

7. Environmental protection: more than 90% of steel structure materials can be recycled, and most other supporting materials can be recycled.

8. Energy-saving: using new materials for heat preservation and heat insulation, the energy required for heating and cooling is 65% more energy-efficient than traditional buildings.

9. Housing rate: Light steel integrated housing increases the practical area by about 12% compared with traditional buildings

10. Construction period: assembly and standardization of light steel structure houses is simple and fast, saving 2/3 construction period compared with traditional structure.

Place of Origin	Shandong, China
Product Type	LGS Structure, Light Steel Keel
Usage	Light Steel Villa
Material	S550GD+Z275
Length	Customized
Wide	89 mm, 140 mm, 190 mm, 240 mm, 290 mm, 350 mm, or Customized
Thickness	1 mm to 3.5 mm, or Customized
Certification	CE, ISO, SGS
Minimum Order Quantity	1 set
Packaging Details	by seaworthy package
Delivery Time	8-15 working days
Supply Ability	100000 square meters per month

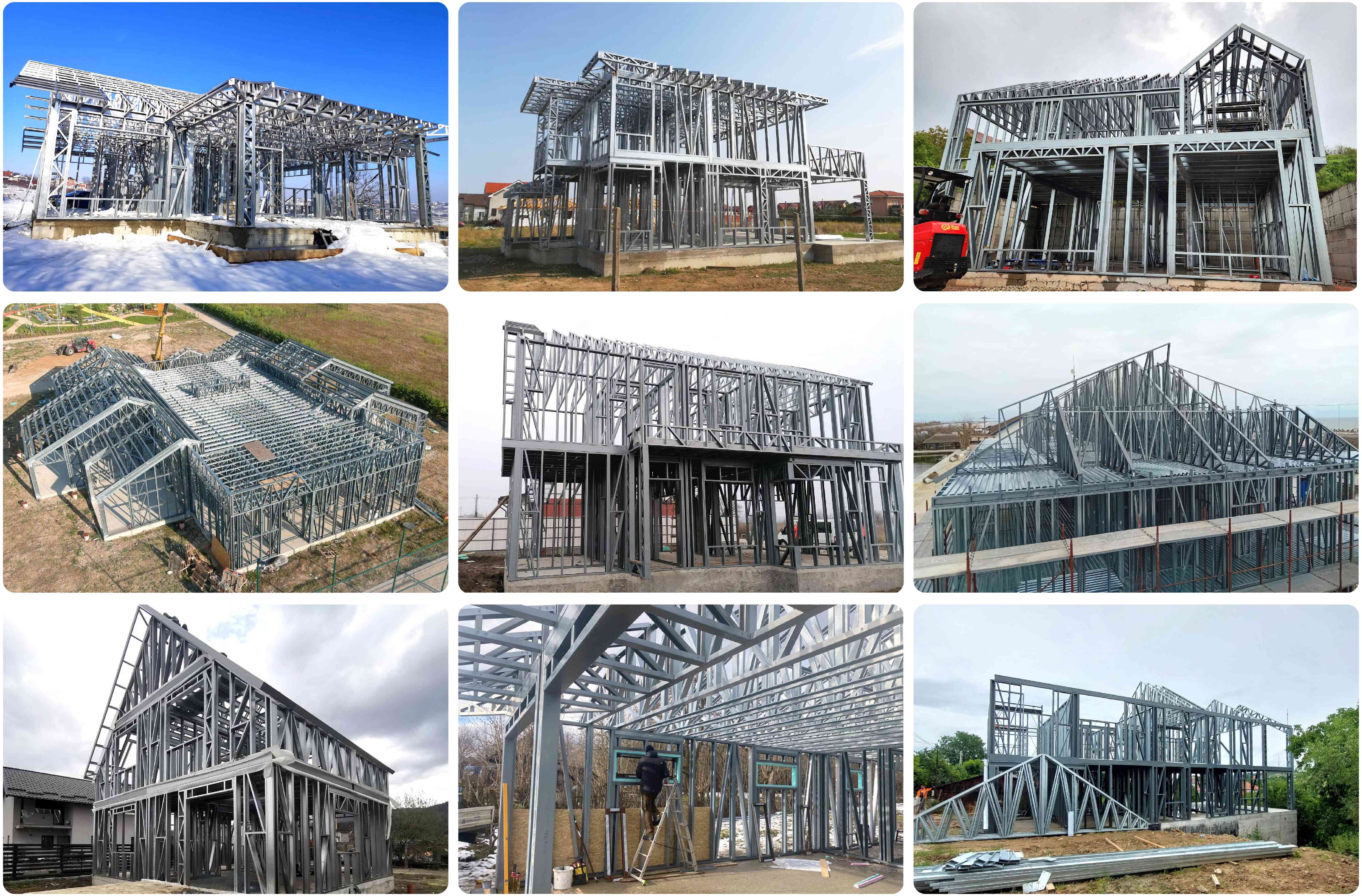

Light Steel Villa Structure Frame

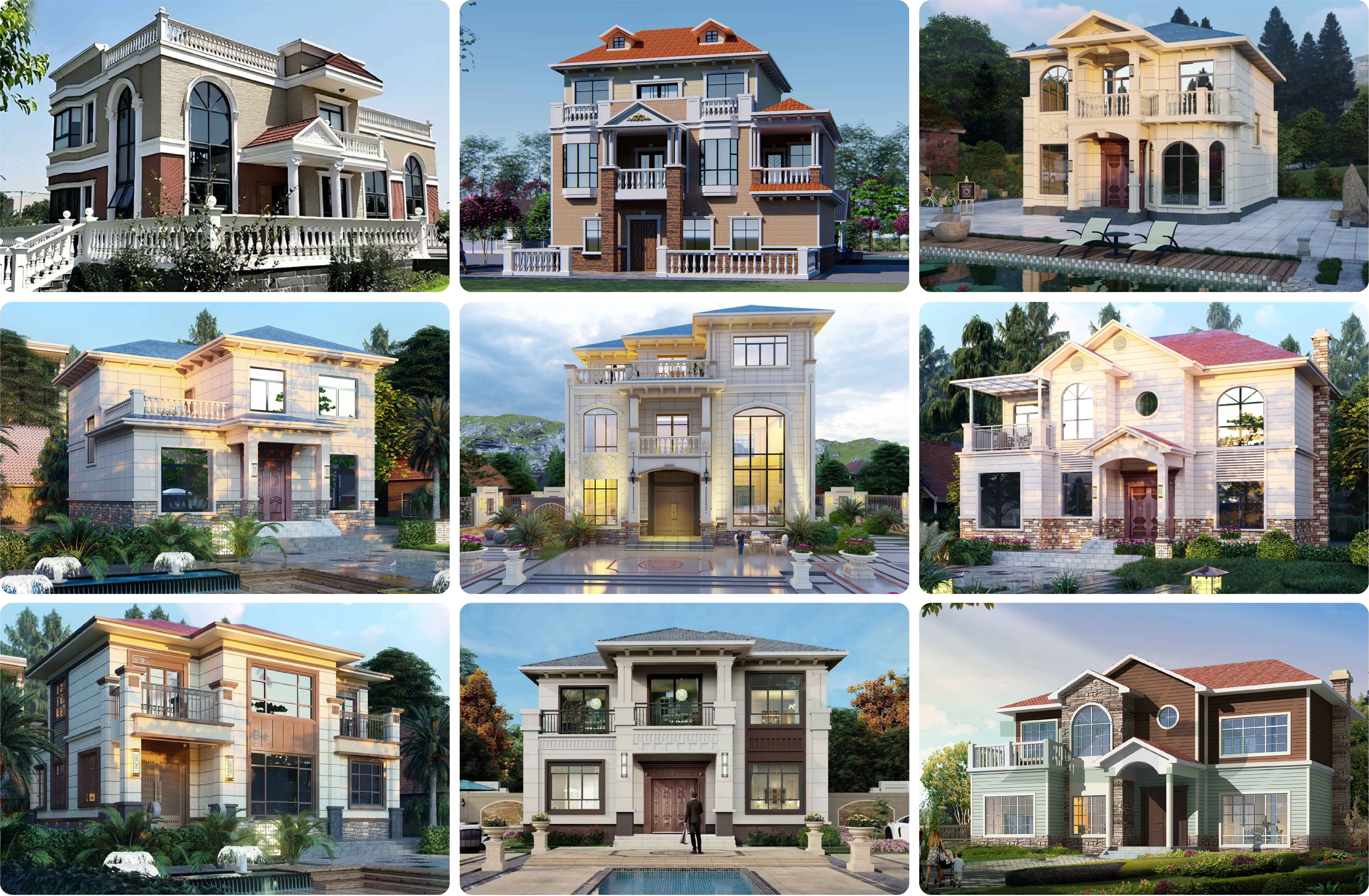

Light Steel Villa Effect Display

Our Advantages

1. Industrialized production with fast manufacturing speed and high precision;

2. Good looking, stable structure,good anti-shock and anti-corrosion property;

3. Cold-rolled thin wall light steel structure system building has lighter weight, shallow base, low pricing;

4. No need for large scale machines on the construction site. Fast installation. The construction of a 200m² two-story villa can be completed by 6-8 skilled workers in about 20 days;

5. Convenient package and transportation: the transportation process is fully considered into the product design, optimize the load method, with about 130-150 m² per 40 foot container;

6. The wall and roof panel is enclosed by multi-type material,which makes the walls of the building breathable and enhance a more comfortable residence in it.

7. The construction site is no wet, environment friendly, not seasonally restraint;

8. With the satisfaction of the functional needs, the wall is thinner,which increase the effective usage area of the building;

9. Customizable.

Wall and Floor Installation

The wall structure of the house is composed of "Galvalume light steel keel + polystyrene granular concrete + reinforced grouting mesh". The ground structure adopts "ground truss + oriented strand board+ concrete cushion", and the exterior wall is finished with real stone/water-wrapped sand, which uses advanced bonding technology to make it closely combined with the base wall, and it is not easy to produce hollowing and falling off. Ensuring seamless connections throughout the structure and guaranteeing absolute safety and stability (all water and electrical pipes are embedded before grouting). The entire wall features excellent properties such as waterproofing, fire resistance, thermal insulation, soundproofing, and heat insulation.

Roof Installation

The house features a unique layered design, with OSB board + asphalt waterproof membrane + asphalt shingle laid over the light steel framework, while the top layer of roofing tiles is customized according to the client’s requirements.

Contact us

If you have any question, please feel free to contact me by the email or whatsapp!

Our house type includes light steel structure villa, light steel structure warehouse (hotel, apartment, office building, hospital, school, mall, supermarket, farmhouse etc) and space capsule series, prefab house, container house (flat pack container house, detachable containers, folding containers).
