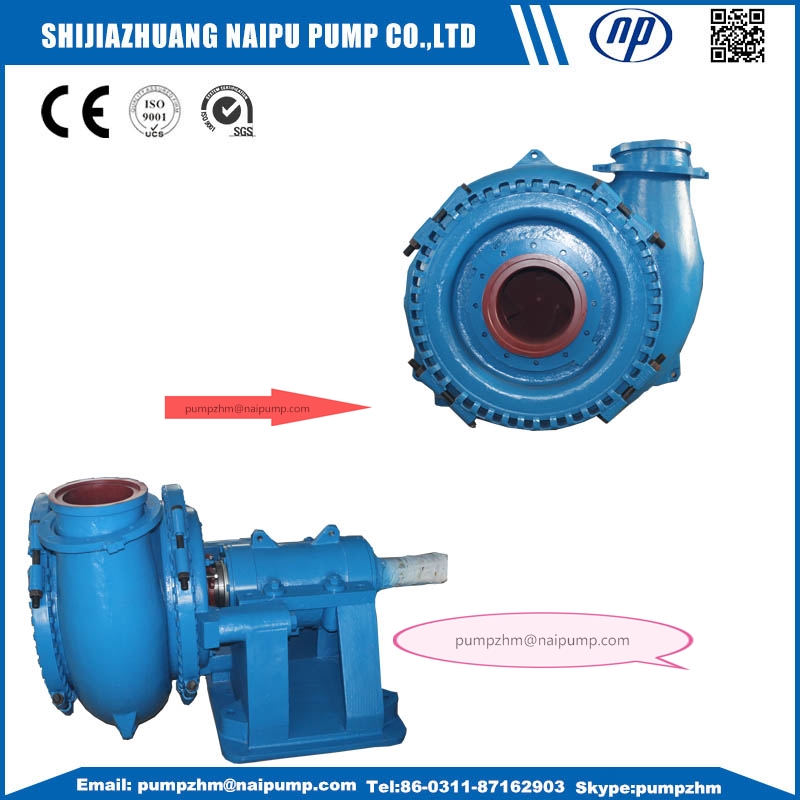

Shijiazhuang Naipu Pump CO.,LTD produce horizontal slurry pumps and SP,SPR vertaical slurry pumps. We also accept OEM orders for special slurry pumps parts with material high chrome, rubber, ducile rion, grey iron, stainless steel ect.
horizontal slurry pump features:
1) Cantilevered, horizontal, centrifugal, single stage slurry pump
2) High head, high efficiency.
3) Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
4) Long bearing life: The bearing assembly is with large diameter shaft and short overhang.
5) Wear resistant wet parts: The wet parts are made of hard metal (24-28% Chrome alloy).
6) Easily replaceable liners: Liners are bolted to the casing.
7) Simple maintenance throat-bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.
8) Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
9) Centrifugal seal, mechanical seal and packing seal are available.
The structure of our High head horizontal slurry pumps,High head horizontal centrifugal slurry pump,High head centrifugal slurry pumps
The parameter of High head horizontal slurry pumps,High head horizontal centrifugal slurry pump,High head centrifugal slurry pumps:
|
Type |
Allowable Mating Max. Power(Kw) |
Clear Water Performance |
Impeller |
|||||
|
Capacity/Q cubic meters/hr |
Head/m |
Speed/rpm |
Max Efficiency/% |
NPSH/m |
Nos of Vane |
Impeller Diameter/mm |
||
|
1.5X1C-HH |
30 |
16.2--34.2 |
25-92 |
1400--2200 |
20 |
2--5.5 |
5 |
330 |
|
3X2D-HH |
60 |
68.4--136.8 |
25-87 |
850--1400 |
47 |
3-7.5 |
5 |
457 |
|
4X3E-HH |
120 |
126-252 |
12-97 |
600-1400 |
50 |
2-5 |
5 |
508 |
|
6X4F-HH |
560 |
324-720 |
30-118 |
600-1000 |
64 |
3-8 |
5 |
711 |
|
8X6S-HH |
560 |
468-1008 |
20-94 |
500--1000 |
65 |
4-12 |
5 |
711 |
High head horizontal slurry pumps,High head horizontal centrifugal slurry pump,High head centrifugal slurry pumps
Material of HH high head slurry pump parts:
Spare parts of our AH,HH and SP horizontal and vertical slurry pump:
4/3 high head horizontal slurry pump,4/3HH high head mining pump,High head metal liner slurry pump contact information in Shijiazhuang Naipu Pump Co.,ltd.
