SPECIFICATIONS
| Max GPM: | 4 |
| Max L/Min: | 15 |
| Max PSI: | 2900 |
| MaxBar: | 200 |
| Power EBHP: | 7.9 |
| Bore Dia mm: | 18 |
| Stroke mm: | 13.8 |
| Crankshaft ID Stamp: | 2 |
| Inlet: | 1/2" F |
| Outlet: | 3/8" F |
| Max Temp: | 140° F |
| Oil Capacity (oz): | 13.35 |
| Weight: | 17 |
| RPM: | 1450 |
| Shaft Size: | 24mm |
| Shaft Version: | N |
| Shaft Type: | Solid |

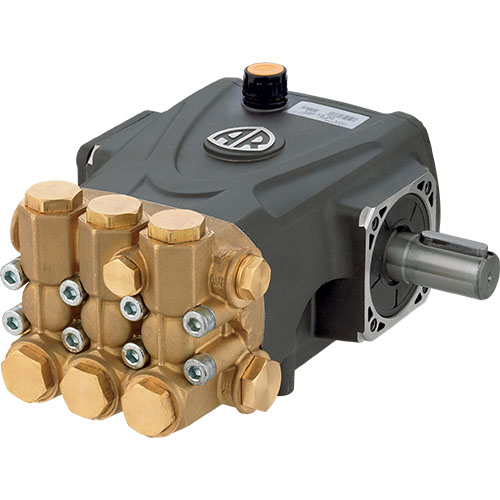

Plunger Pumps are designed for a wide variety of high pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized needle bearings on the drive side, and ball on the non-drive side together with the precision supports assure positive alignment and centering in relation to the crankcase. Valve cages of special designed Ultra-Form provide positive seating and extended life. Ball bearings on both sides of solid shaft drive pumps. One-piece connecting rods are special alloy aluminum, oversized for strength and load disbursement. These pumps are designed for, belt drive, or coupling drive systems driven by electric motor or gasoline driven systems, electric motor direct drive systems, and gasoline engine direct drive systems.
High Pressure Cleaner
High Pressure Washers
High Pressure Washer

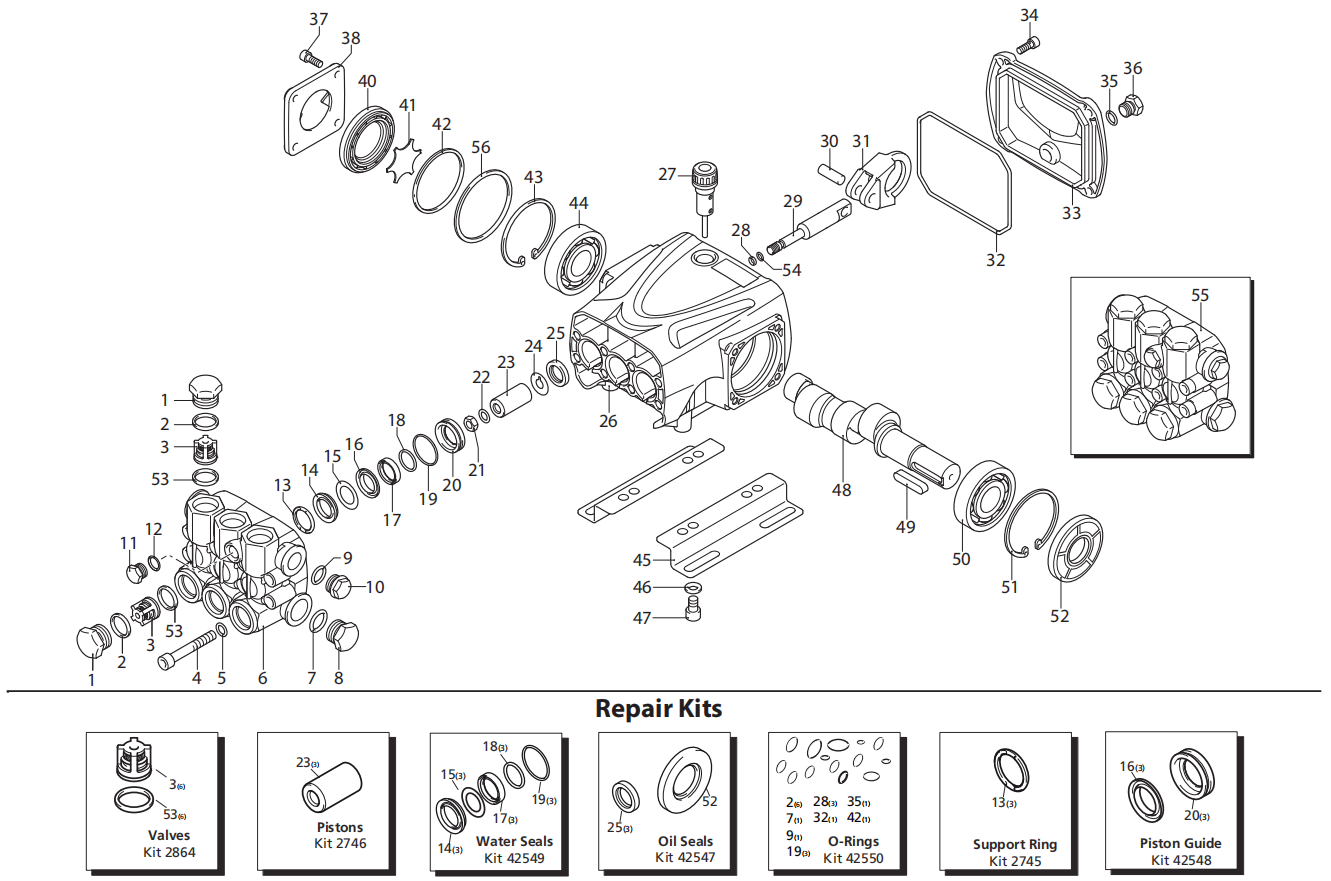

REPARE KITS:
