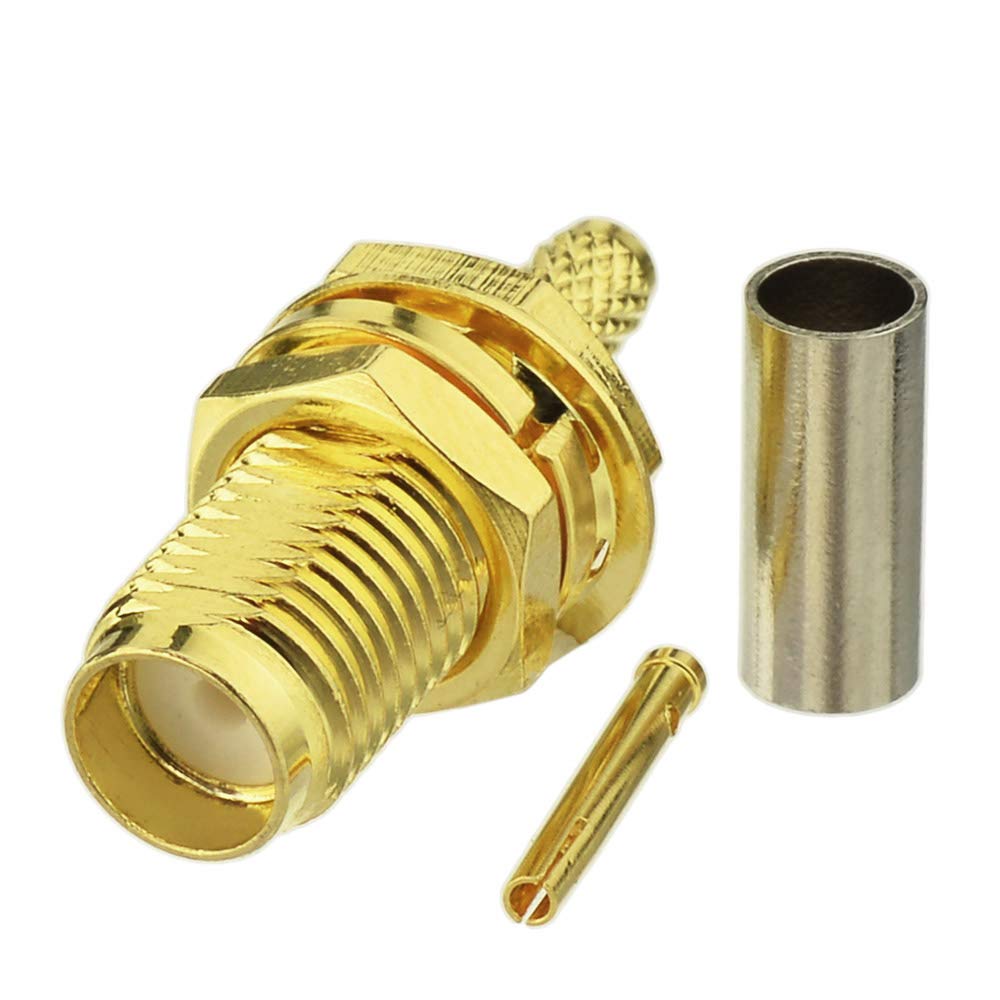

SMA SMB RF Connector

2 year ago

14 0

Changzhou Kingsun New Energy Technology Co., Ltd.

 2 year year

Product details

Electrical Data

SMA Connector
Temperature Range	-55 °C ~ +155 °C (PE Cable -40 °C ~ +105 °C)
Impedance	50Ω
Frequency range	DC-12.4 GHz (semi-rigled DC-18GHz)
Working voltage	335V r.m.s at sea level
Withstanding Voltage	1000V r.m.s at sea level
Contact resistance
Center contact	≤3mΩ
Outer contact	≤2.5mΩ
Insulation resistance	≥5000mΩ
Center conductor retention force	≥0.28N
Coupling nut retention force	≥180N
Insertion loss	0.1 x√f(GHz)dB@1GHz
Engagement force	-
Disengagement force	-
Voltage standing wave ratio
Straight	≤1.10+0.02f
Right angle	≤1.20+0.03f
Durability (mating)	≥500 cycles

Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.

Changzhou KingSun New Energy Technology Co., Ltd.

FAQ：

Q1: Are you a manufacturer?
A1: Yes, we are a manufacturer located in Changzhou city of China. We can provide OEM/OOM services for customes around the world.

Q2: Can I get a free sample?
A2: Yes,we can provide the existing items'samples without charge but freight collected. If there is any special samples
requirement, please contact us for more details.

Q3: How could I pay?
A3: We prefer T/T. If you prefer other payment terms,please contact us freely.

Q4: Is the quality of your product guaranteed?
A4: Yes, our workshop are equipped with Brand-new and Advanced Machines and Test Equipment. Besides, our worker are Professional Technicians for connector&cable production. Our production process and quality are in strictly accordance with the international standards and customers' requirements. We are warmly welcome your inspection team to examine.

Q5: What is the delivery lead time?

A5: It depends on the quantity of the purchasing order. The mass production lead time is about 10-25 days after receipt of the deposit.

Q6: What you can buy from us?

Audio And Video Connector, Mini Fakra Connector, Car Antenna Adapter, Fakra Connector, 3.5MM Connector, 3.5Mm Connector, Rca Connector, Hsd Connector
