About Hitachi CMI95M:

Can quickly and easily identified the cooper foil of CCL accurately, avoiding waster and rework costs. The soft-touch probe prevents the cooper surface from being dagamed or scratched, avoiding damage to the CCL sheet.

It can measure the surface cooper thickness of cooper foil and CCL within 1S, and the corresponding size is 1/8 oz/ft²- 4.0 oz/ft²(5-140um)

Specification:

Dimension: 2.5"(W)*1.25"(T)*4.1"(H), 66mm(W)*32mm(T)*104mm(H)

Weight: ±1% (125g)

Battery: 9V, user can change

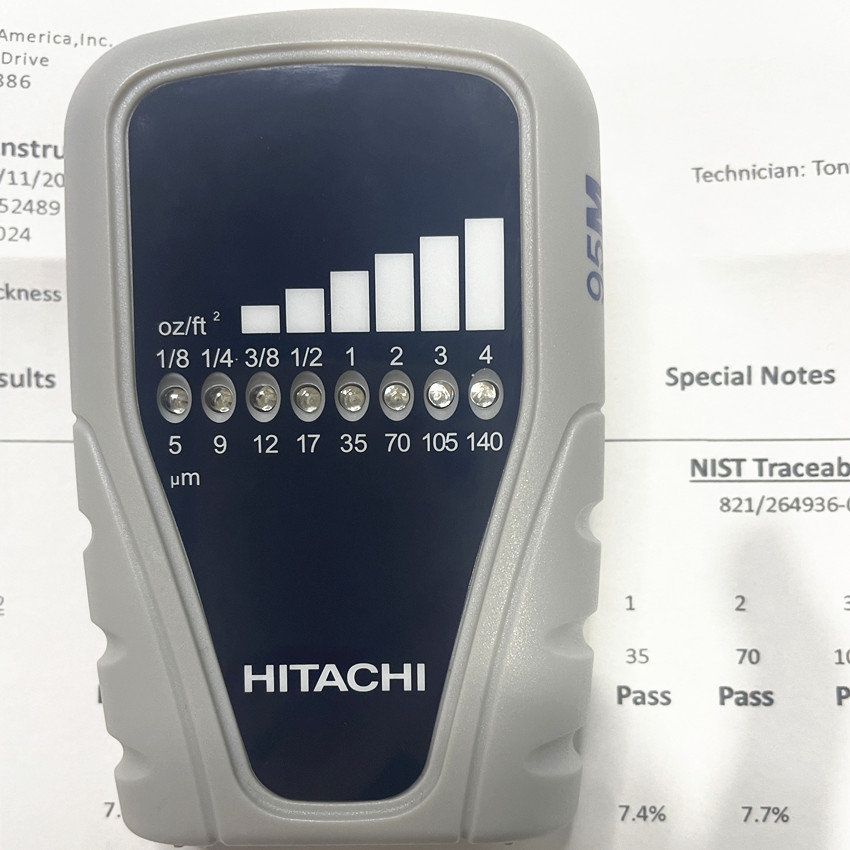

Range: oz/ft² 1/8, 1/4 , 3/8, 1/2, 1, 2, 3, 4

um: 5, 9, 12, 17, 35 ,70, 105, 140

Our CMI95 is easy to use, simply place a unique soft contact probe on the copper surface, then note the thickness measurement on the indicator, and use field-proven microresistance technology to arrange the copper foil and copper laminates by thickness. The 95M is robust and highly accurate. Since it has been calibrated at the factory, the instrument does not need to be calibrated.

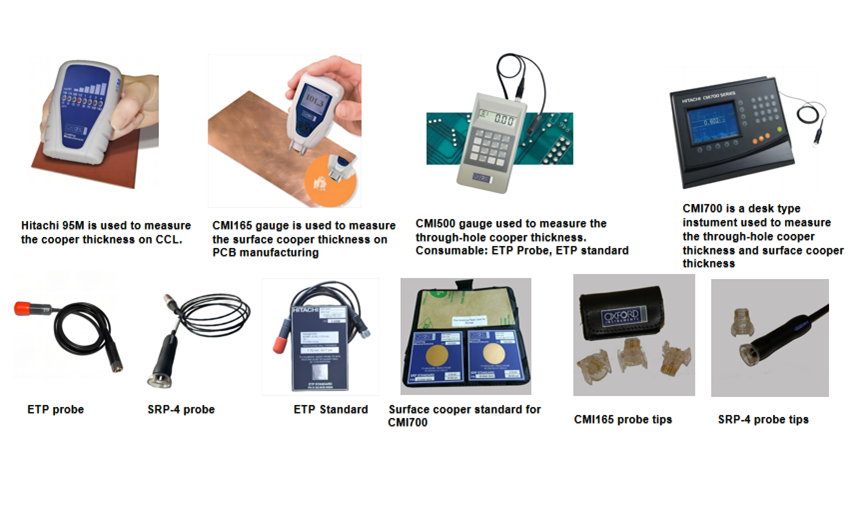

	95M	CMI165	CMI511(CMI500)	CMI563	CMI760(CMI700)
Technique	Microresistance	microresistance	Eddy curreny	microresistance	microresistance
Cooper Foil	√	√	×	√	√
Cooper Clad Laminate(CCL)	√	√	×	√	√
Cooper-Surface	×	√	×	√	√
Cooper-Fineline	×	√	×	√	√
Cooper Thru-hole	×	×	√	×	optional
Temperature Compensation	×	√	√	×	√ (ETP Probe)
Replacement Probe Tip	×	√	×	√	√ (SRP-4 Probe)
Unit Selection	oz or um	mil or um	mil or um	mil or um	mil or um

Thickness Range	8 indicator lights 1/8-4 oz 5-140 um	Electroless Cu 0.01-0.5 mil 0.25-12.7 um Electroplated Cu 0.1-10 mil 2-254 um	0.08-4.0 mil 2-102 um	Electroless Cu 0.01-0.5 mil 0.25-12.7 um Electroplated Cu 0.1-6 mil 3-152 um	Surface Cu 0.01-10 mil 0.25-254 um Thru-hole Cu 0.05-4 mil 1-102um
