Product details

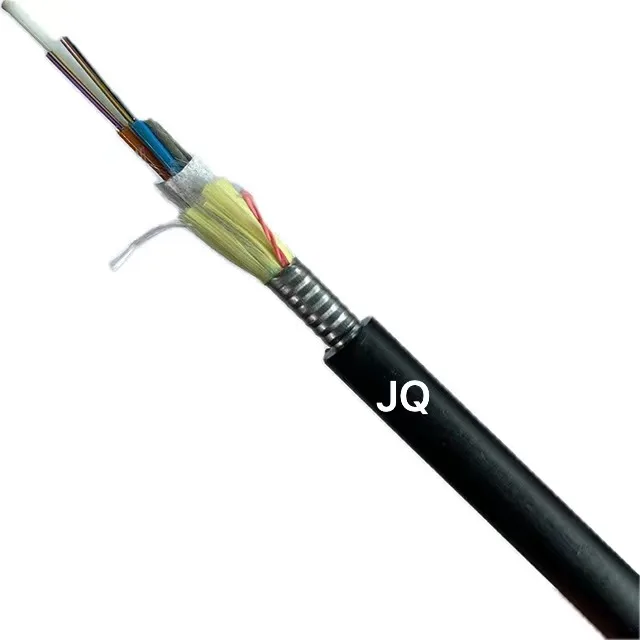

24 core Armored Anti-rodent Fiber Optic Cable ARSS

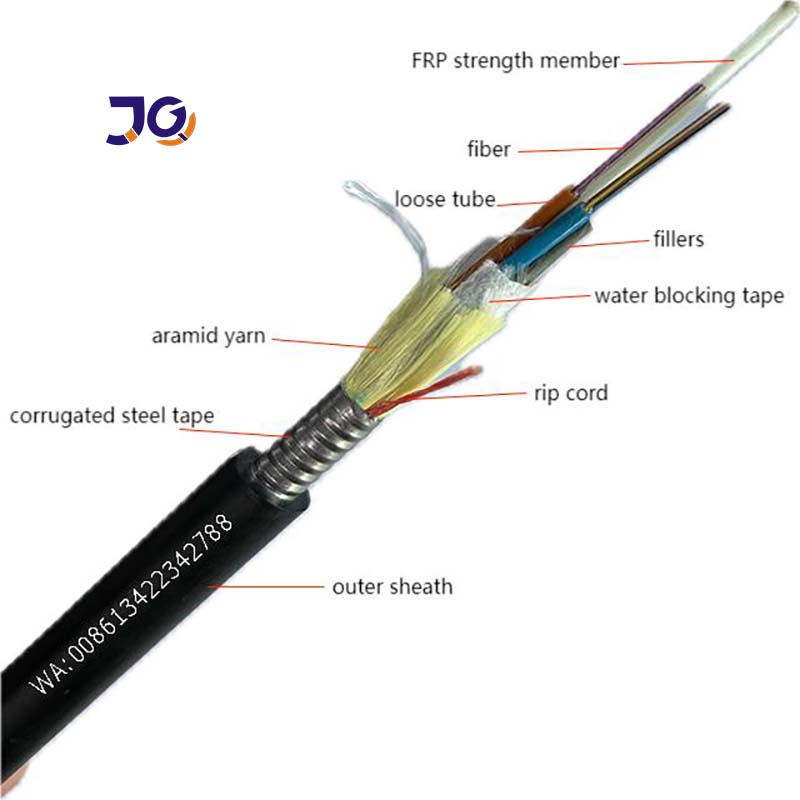

The 12 core and 24 core Armored Anti-rodent Adss Fiber Cable ARSS features rodent protection. A steel tape layer increases impact and crush resistance. Additionally, Adss Fiber Optic Cable aramid yarn provides high tensile strength and long-term reliability. The cable can be identified by a color stripe extruded on the outer sheath throughout its length (optional). This cable meets the installation standards of the Provincial Electricity Authority of Thailand.

Fiber Core	Diameter (mm)	weight(km/kg)	tensile loading N	Crush Loading N	Min. Bending radius
12-24	12	100	1800	3400	20 x D Install & 15 x D Fixed
48-60	12.5	115	1800	3400
72	13	125	2500	3400
96	15	165	2500	3400
120	17	190	2500	3400

Our Armored Anti-rodent Fiber Optic Cable ARSS features rodent protection, steel tape for impact and crush resistance, and a loose tube design for stable transmission. Aramid yarn provides high tensile strength and long-term reliability. With an operating temperature range of -10 to +70°C, it meets IEC 60793, IEC 60794, TIA/EIA, and ITU-T standards. The standard length is 1000m, with other lengths available. For quantities, please consult our sales department for a specific quote.

Our cable delivery includes a fast turnaround time: sample orders are fulfilled in 3 workdays, while bulk orders are delivered within 10 workdays. Standard lengths of up to 4,000m are available, with custom lengths possible upon request. The cable is packaged in non-returnable wooden drums.
