Product details

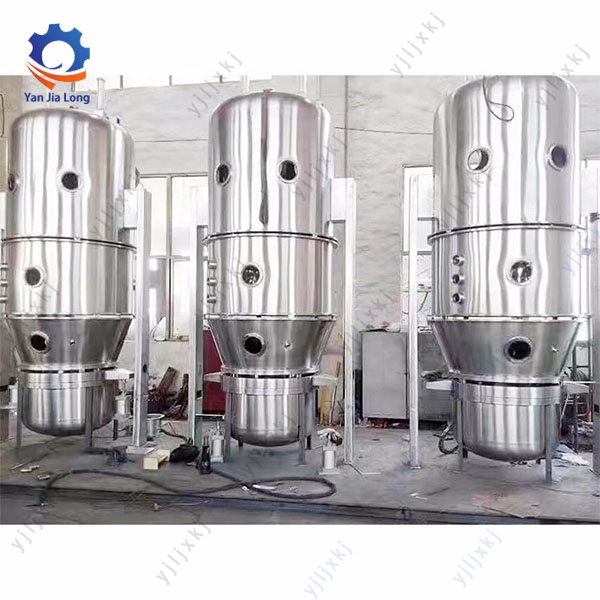

purple corncob fluidized granulating machine,crushed corncob Fluidized dry machine,corncob molasses fluidizing dry equipment

Features

1. Fluidizing and Boiling drying, good heat transfer

2. Thanks to the enclosed structure of drying equipment, there is no need to worry about dust

3. The bag-type filter adopts antistatic fiber for safe operation

purple corncob fluidized granulating machine

Technical Specifications of Fluidizing Drying Machine

Model			FG3	FG5	FG30	FG60	FG120	FG200	FG300	FG500
Item		Unit	FG3	FG5	FG30	FG60	FG120	FG200	FG300	FG500
Material container	Dia.	mm	300	400	700	1000	1200	1400	1600	1800
Material container	Volume	L	12	22	100	220	420	670	1000	1500
Production capacity	Min.	kg/batch	1.5	4	15	30	80	100	150	250
Production capacity	Max.	Kg/batch	4	6	36	72	140	240	360	600
Steam consumption		kg/batch	12	23	70	140	211	282	366	465
Compressed air amount		m3/min	0.3	0.3	0.3	0.6	0.6	0.9	0.9	0.9
Fan power		kw	2.2	4	5.5	11	18.5	22	30	45
Temperature		℃	Ambient temperature-120℃ adjustable
Material recovery rate		%	＞99
Operating time		mini	15-30(depending on material)
Final moisture content		%	0 ~ 0.2(depending on material)
Noise		db	≤75
Machine height		mm	2100	2300	2500	3000	3300	3800	4000	4400
