ISUZU crane truck 8T

4 month ago
18 0
Product details
Truck mounted crane transport vehicle, also known as truck mounted crane, and in some places, it is also commonly referred to as car crane, self elevating crane, etc. Integrating lifting and transportation, it is commonly used in places such as stations, warehouses, docks, construction sites, and field rescue. Can be equipped with cargo compartments of different lengths and cranes of different tonnages. Water tanks can also be added to the carriage to form a truck mounted sprinkler truck.
The full name of the truck mounted crane is the truck mounted lifting transport vehicle, which is a device that uses hydraulic lifting and telescopic systems to lift, rotate, and hoist goods. It is usually assembled on cargo trucks. It is generally composed of a cargo truck chassis, cargo compartment, power take-off, and crane. The chassis of the cargo truck can be selected from various tonnages such as Dongfeng, Jiefang, Ouman, Steyr, etc. Cranes can be divided into XCMG, Sany, ZOOMLION, UNIC,Yutong Heavy Industry, Stone Coal, etc. are divided into straight arm and folding arm types according to the type of crane, and into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, and 16 tons according to the tonnage.

ISUZU 5T Crane Transport Truck
Payment Term 50% T/T in advance,50% before shipment
Truck Condition New
Warranty  12 months
Port of Delivering Shanghai,Tianjing,Lianyungang,Guangzhou,China any port
Country of Origin Hubei, China
Truck Name Crane transport truck
ISUZU truck with crane
Overall Dimension 8500x2500x3450 mm
Cabin ISUZU cabin with AC
G.V.W/Curb weight 14,000/5,800 KGS
Max speed  95 km/h
Wheelbase 4,475 mm
Engine Model  ISUZU 4HK1-TC51/190hp/5,193 ml
Engine type 4 cylinder/water cooling/inter cooling
Fuel  Diesel Euro 5
Transmission Manual ISUZU MLD 6+1 gears
Brake Air brake
Steering Power assisted
Tire 235/75R17.5/6+1 pcs
Box Max Loading weight 5000-8000 KGS
Crane China brand XCMG crane/360° rotate/4 sections arm
Crane max lifting weight 5,000 KGS (when work radius=2 M)
Crane lifting max height 11.2 m
Crane Max working radius 10 m
Outrigger 2 pcs Front+2 pcs rear outrigger

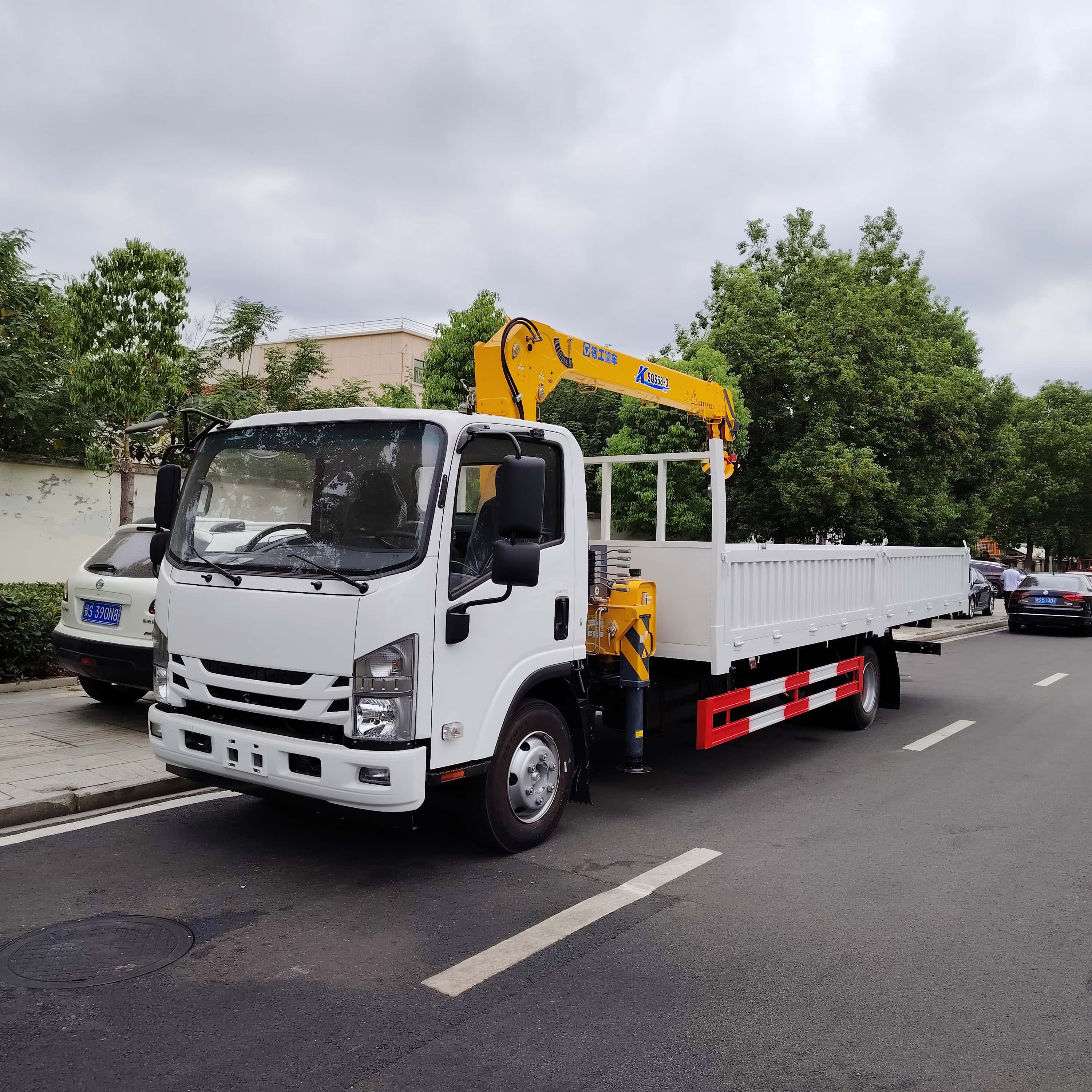

ISUZU crane truck picture
