Yokelink Oval Eye Nuts Thimble Eye Nut For Deadending Guying Poleline Hardware

2 month ago
3 0
Product details
Oval Eye Nut (1)

Oval Eye Nut


Yokelink Oval eye nut are used for deadending, back guying and attaching pole head guys on the threaded end of crossarm bolts. Drop forged steel, manufactured from ANSI/IEEE Std C135.80. Hot dip galvanized to meet ASTM A153 specification.

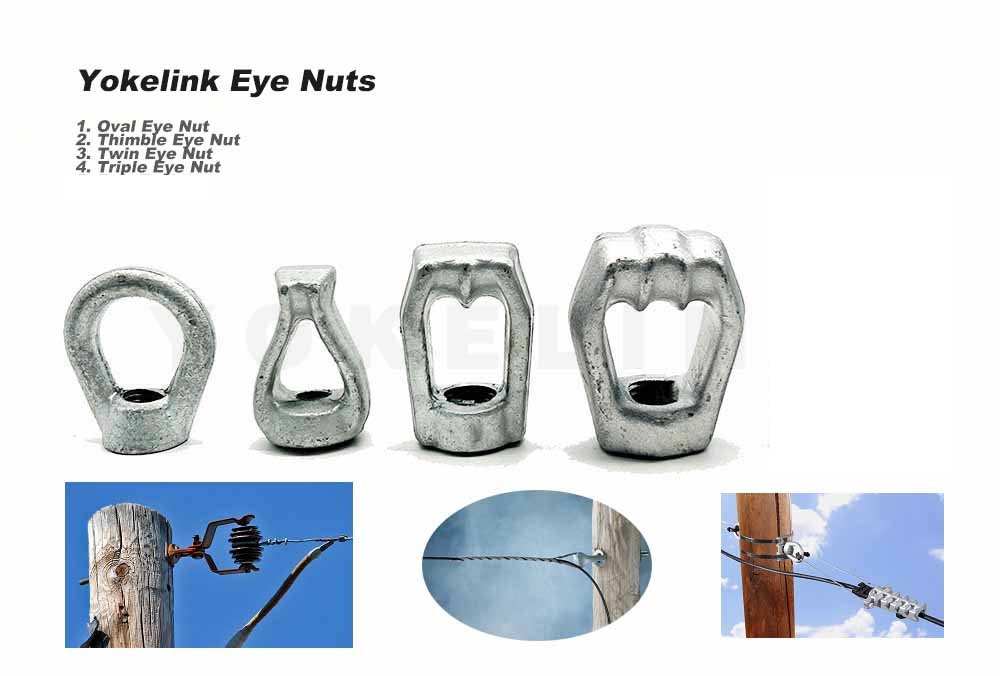

Eye nut includes thimble eye nut, oval eye nut, clevis eye nut, and angle thimble eyelet. The thimble eye nut includes a thimble eye, twin-eye.

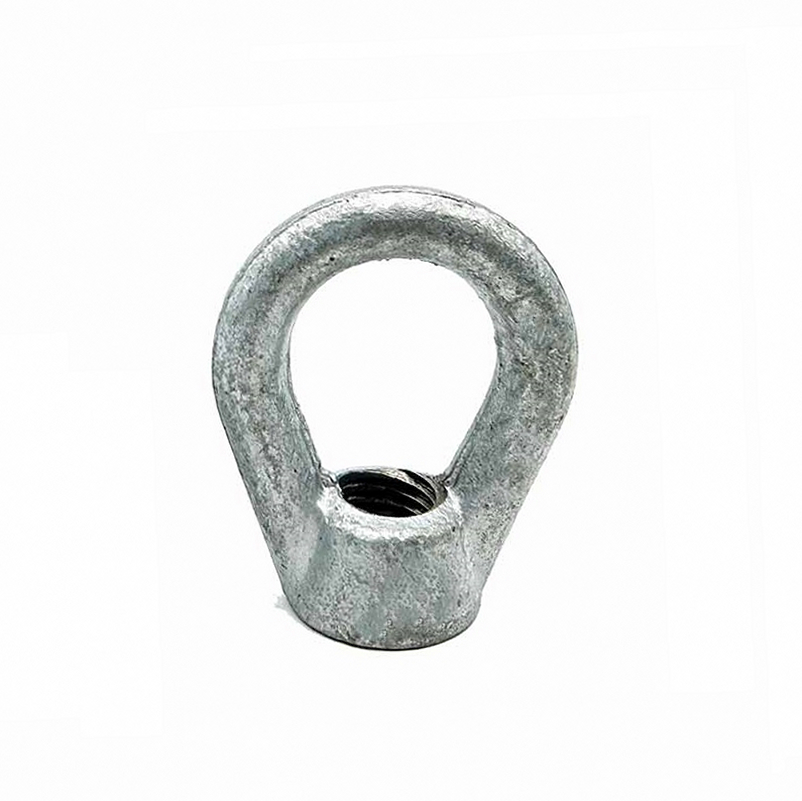

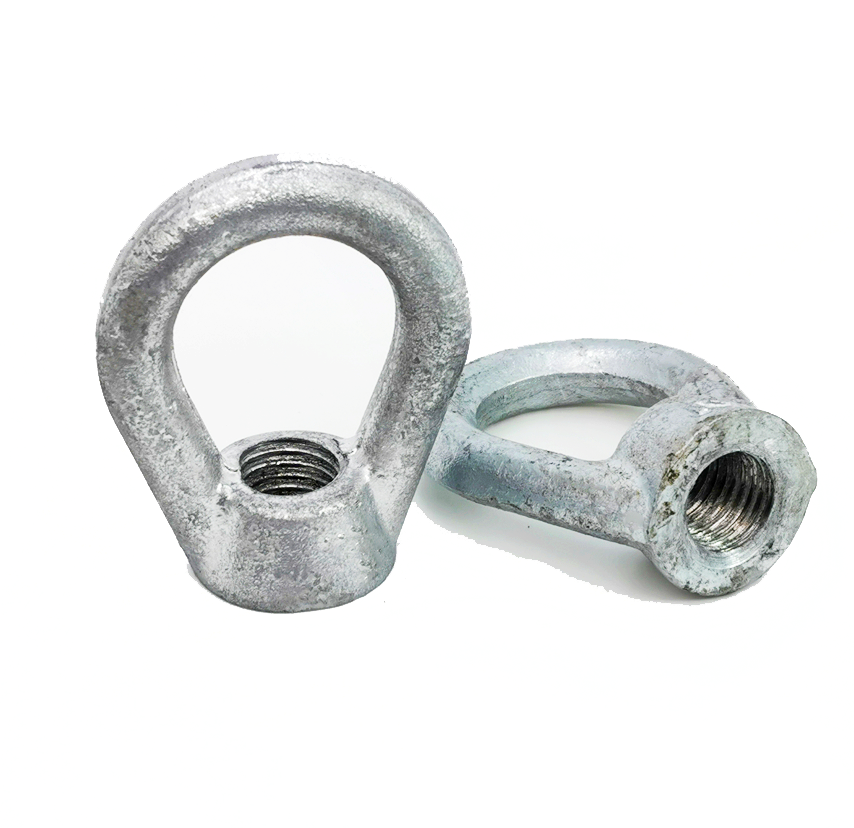

The Oval Eye Nut is designed as a termination point for a messenger or grounded conductor. This nut can be secured using a 5/8" threaded utility double arming bolt or through bolts. The Oval Eye Nut is used on applications to wood or composite poles, spacer cable brackets, or lattice tower structures.



Oval Eye Nut Specification

oval eye nut drawing    Oval Eye Nut (3)

Part No. Bolt Size A B C D Weight
Inch Inch Inch Inch Inch Kg / Pcs
D0158 5/8 1.375 0.5 1 1/2 1 3/4 0.232
D0134 3/4 1.375 0.5 1 1/2 1 3/4 0.245



Buy Oval Eye Nut From Yokelink


Other shapes and 1/2 inch Oval Eye Nuts are available. 304 & 316 Eye Nut are available per the request. When you need Oval Eye Nuts, refer to above our catalog. We offer them in a full selection of sizes, provide the diameter or part number to get a quote on these Eye Nuts, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.

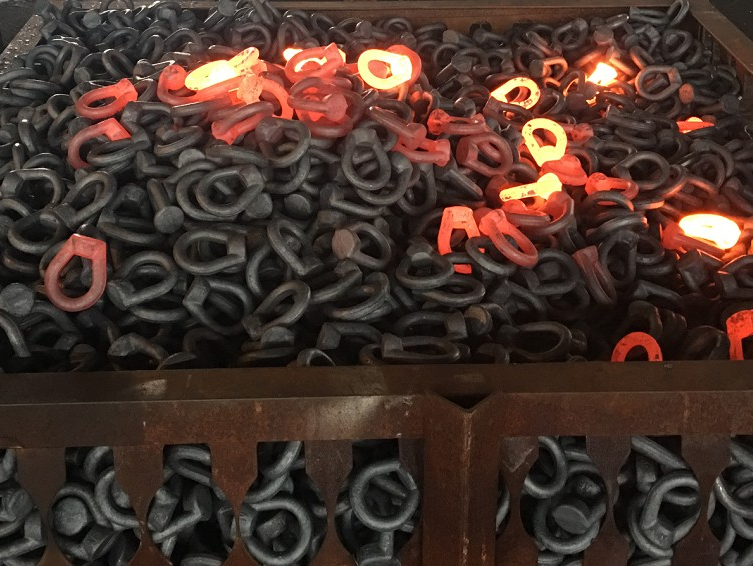

Yokelink Eye Nuts For Utility PoleForged Oval Eye Nut Production
