Parallel Groove Clamps

2 month ago
3 0
Product details

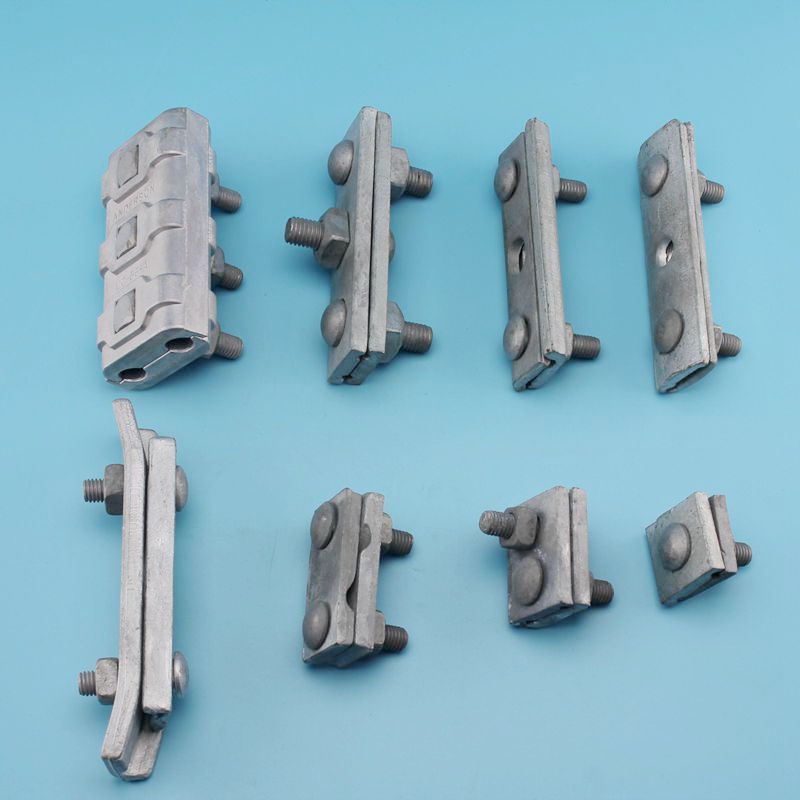

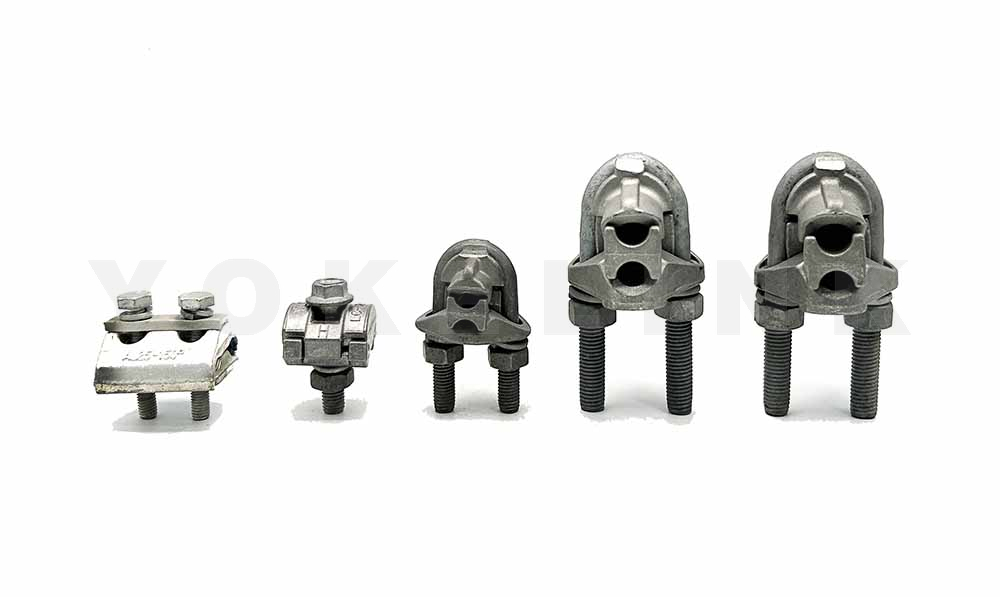

Parallel Groove Clamps


The parallel groove clamp (PG Clamp) is designed to connect two conductors in parallel and especially used to hold transmission conductors in parallel in transmission lines. Adaptable to use as an oblique tap or parallel connector.

Made up of high-strength aluminium alloy bolts, the parallel groove clamps are designed to maintain high contact pressure during cooling and heating cycles.

The 396.6, 395.5, and 490.0 are the rotational tightening method for clamp which provides accurate torquing.


ACCESSORIES USED WITH PARALLEL GROOVE CLAMPS ARE:


Welded copper
Dacromet steel bolts
Belleville washers to prevent thermal ratcheting
Oxide inhibitor
Hot dip-galvanized steel bolts
Clamp connector
Aluminium bimetal

The parallel groove clamp (PG Clamp) Applicat The parallel groove clamp (PG Clamp) Applicat


Parallel Groove Clamps Features:


High corrosion resistance
The hot-forged finish in aluminium alloy construction
Nuts in hot-dip galvanized finished and washer supporter for corrosion protected
Copper-based conductors
Stainless steel based bolts
Holding support of transmission conductors



Parallel Groove Clamp Specification:


parallel groove clamps
          yokelink parallel groove clamps

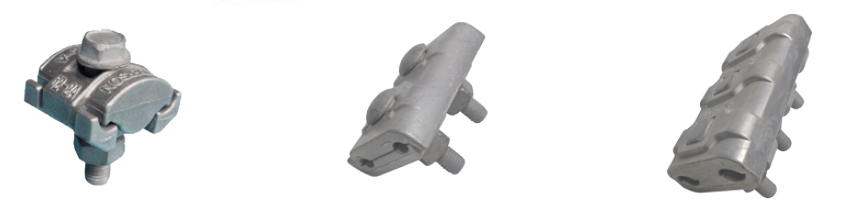

Part No. Conductor Fig No. L W H Weight
Groove A Groove B mm mm mm Kg / Pcs
H01-51 #8 - 1/0 #8 - 1/0 1 34 43 58 0.107
H01-52 #8 - 2/0 #8 - 2/0 1 36 44 58 0.110
H01-66 1/0 - 397.5 1/0 - 397.5 2 91 58 65 0.450
H01-68 336.4-477 336.4-477 3 136 73 73 1.015



Buy Parallel Groove Clamps From Yokelink, Poleline Hardware Manufacturer

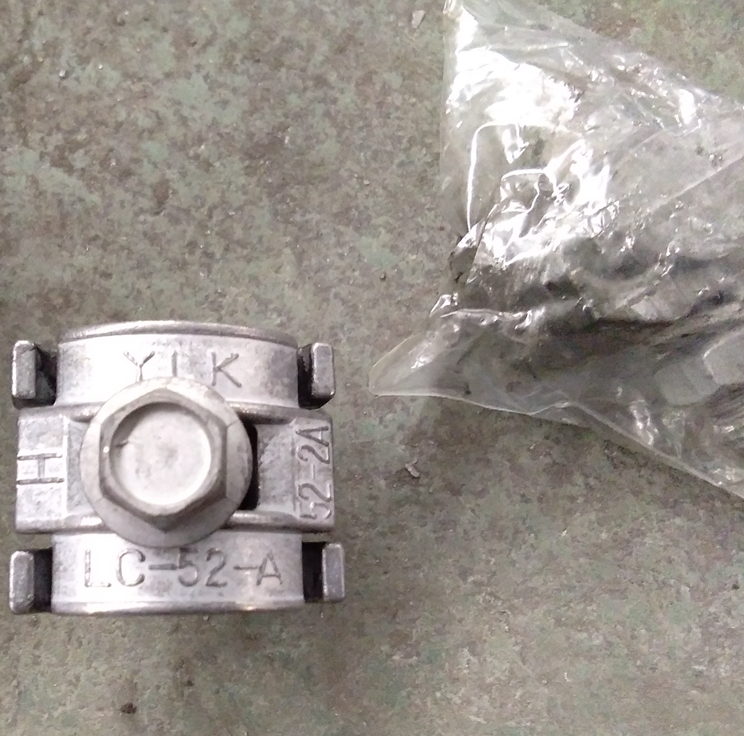

Yokelink LC serial Parallel Groove Clamps used for aluminum to aluminum to copper conductors splice/tap connections. Yokelink’s parallel groove clamps are the perfect solution for reliable power connections. Made from high-grade aluminum alloys, these clamps are built for durability, excellent conductivity, and resistance to corrosion and extreme weather conditions.

Precision-engineered to minimize resistance and maximize efficiency, Yokelink clamps ensure secure and long-lasting conductor connections. With customizable options and compliance with industry standards, they meet the demands of any project with ease.

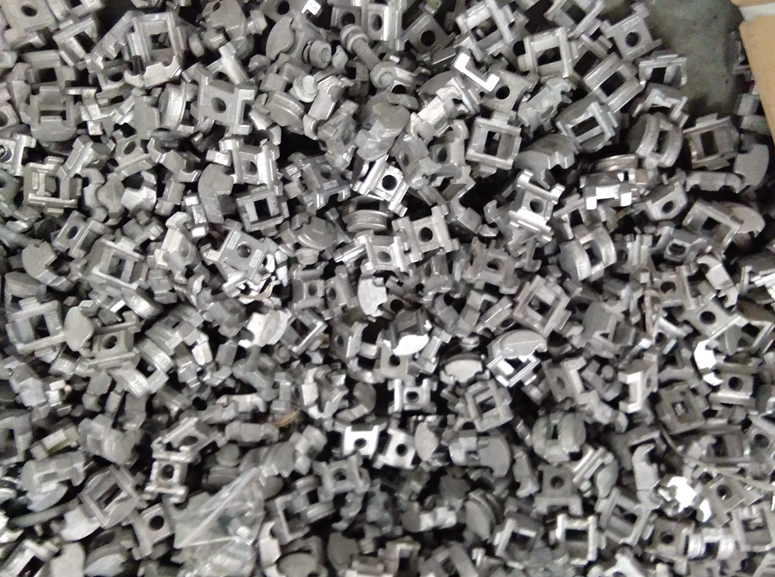

Parallel Groove Clamp Factory  (3) Parallel Groove Clamp Factory  (1) Parallel Groove Clamp Factory  (2)
Parallel Groove Clamps  Conductor Hardware
