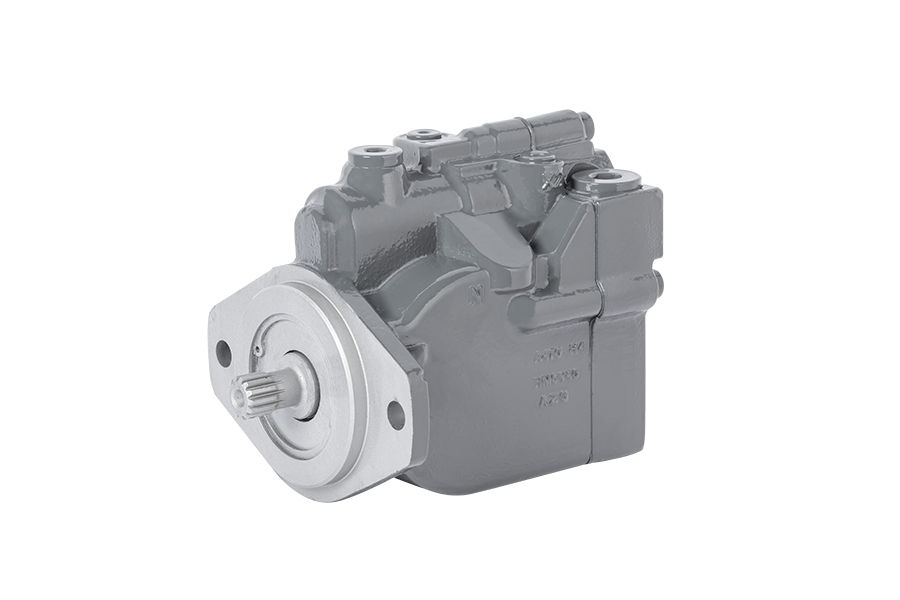

HM5V Series Swashplate Variable Displacement Piston Motor

HM5V Series Swashplate Variable Displacement Piston Motor

3 week ago

3 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 3 year year

Product details

the "HM5V Series Variable Piston Motor", it is likely a reference to a series of hydraulic motors that feature variable displacement and utilize a piston (or plunger) design, specifically incorporating a swashplate or similar mechanism to vary the output torque and speed. Here are some specific details that one might typically find associated with such a series:

Key Features:

• Variable Displacement:

• The HM5V series allows for adjustment of the piston stroke or angle, thereby varying the amount of hydraulic fluid displaced per revolution. This capability enables the motor to provide a range of output torques and speeds to meet different operational requirements.

• Piston/Plunger Design:

• The motor employs a piston or plunger design, where each piston reciprocates within a cylinder bore. The pistons are typically connected to a swashplate or similar mechanism, which converts the reciprocal motion into rotational output.

• Swashplate Mechanism:

• A swashplate is a key component that enables the variable displacement feature. By adjusting the angle of the swashplate, the stroke length of the pistons can be varied, thus changing the displacement and output characteristics of the motor.

• Hydraulic Operation:

• The motor operates on hydraulic fluid, which is supplied under pressure to drive the pistons. The flow rate and pressure of the hydraulic fluid determine the speed and torque output of the motor.

• Applications:

• Due to their variable displacement capabilities, HM5V series motors are often used in applications requiring a wide range of operating speeds and torques. These may include mobile machinery, construction equipment, and industrial applications where precise control over the output characteristics of the motor is necessary.

• Control and Regulation:

• The displacement of the motor can be controlled via a hydraulic or electronic control system. This allows for precise regulation of the output torque and speed to match the load requirements and operational conditions.

Possible Configurations and Options:

• Different displacement ranges may be available within the HM5V series to cater to various power and torque requirements.

• Options for different mounting arrangements, shaft configurations, and port connections may be available to suit specific application needs.

• Accessories such as pressure relief valves, make-up valves, and anti-reversal valves may be integrated into the motor design to enhance its functionality and reliability.

It's worth noting that specific details such as displacement ranges, pressure ratings, and control features may vary depending on the exact model and manufacturer of the HM5V series variable piston motor.
