Product details

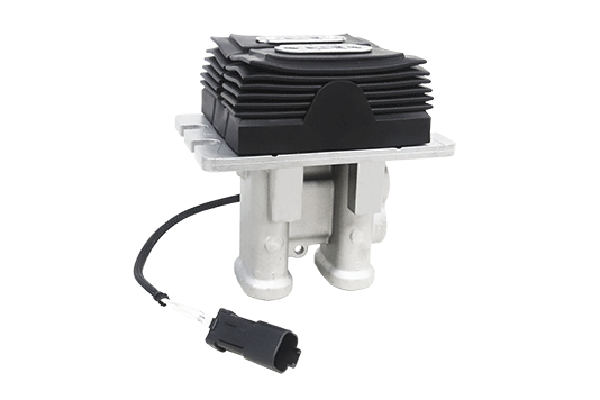

The PVH Foot Pedal Pilot Control Valve is a special control valve that combines foot pedal operation with pilot valve control functionality. Below is a detailed analysis of this valve:

I. Structural Characteristics

• The valve mainly consists of a valve body, a foot pedal located on top of the valve body, and related pilot control mechanisms.

• The middle part of the foot pedal is usually hinged to the valve body, allowing operators to easily and flexibly control it with their feet.

• The valve body is equipped with an oil inlet chamber, an oil return chamber, and a piston rod assembly, which work together to achieve valve opening and closing as well as flow control.

II. Working Principle

• When the operator presses down on the foot pedal, it compresses the piston rod assembly, thereby changing the conduction state between the oil inlet chamber and the oil outlet hole.

• By adjusting the pressing force and stroke of the foot pedal, precise control of media flow rate, pressure, and other parameters can be achieved.

• The pilot control mechanism serves to amplify or regulate the control signal, ensuring rapid and accurate valve response.

III. Application Scenarios

• The PVH Foot Pedal Pilot Control Valve is widely used in industrial situations requiring precise and flexible control.

• Especially in hydraulic systems, this valve enables precise control of hydraulic cylinders, hydraulic motors, and other actuators.

• For example, it plays an important role in the fields of engineering machinery, shipping, aerospace, and aviation.

IV. Performance Advantages

• Reasonable design and simple structure: making the valve easy to assemble and maintain.

• High operational stability: ensuring stable performance under various working conditions.

• Long service life: manufactured using high-quality materials and sophisticated craftsmanship to ensure the valve's durability.

In summary, the PVH Foot Pedal Pilot Control Valve is a control valve with broad application prospects and significant performance advantages. Its emergence has not only improved the level of industrial automation but also brought more convenience and benefits to people's production and life.
