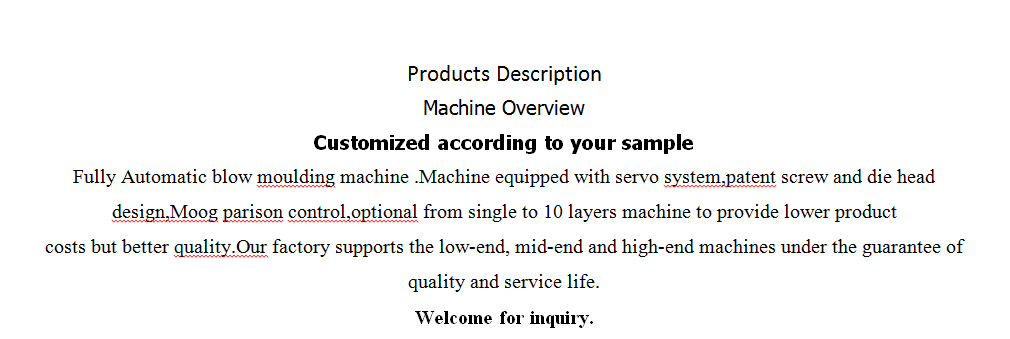

The fully automatic water tank blow molding machine can produce 300L to 2000L, 1 to 6 layers of water tanks. Product layering description: The outer layer can be made of raw material particles, masterbatch and UV protection additives. The middle layer can be used as bonding layer and barrier layer to increase the product audience range. Recycled materials can also be used to reduce product costs. The inner layer uses raw materials. Civilian water buckets can solve most problems in life
Blow Molding Machine.Blow Molding Molds.Water Tank Blow Molding Machine
| Model | YY-2000-6 |
| Max.product size | 300-2000L |
| Machine dimension(LxWxH) | 12*10*7m |
| Average power consumption | 280kw |
| Total power | 520kw |
| Die-header | |
| accumulator size | 60kg |
| Heating power | 100kw |
| Extrusion system | |
| Plasticizing capacity | 520kg/h |
| Heating power | 140kw |
| Mold clamping unit | |
| Clamping platem size | 1900*2000*60mm |
| Max mold size | 1600*1900mm |
| Clamping force | 1200km |
| Hydraulic system | |
| Main oil pump power | 45kw |
| Small oil pump power | 7.5kw |
