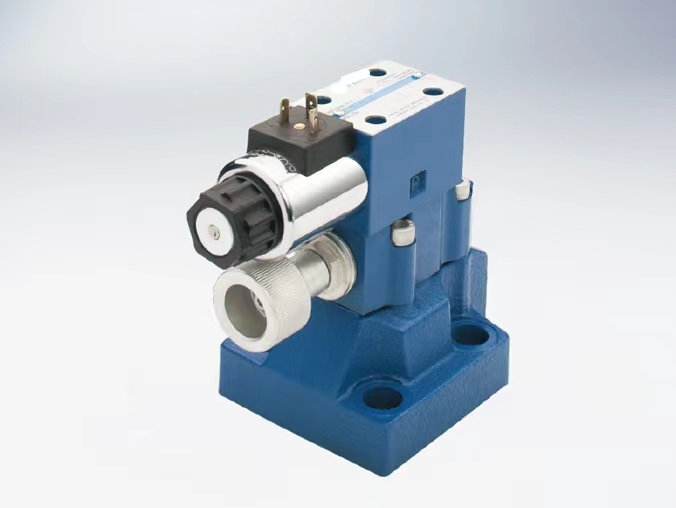

Hydraulic Relief Valve - Detailed Content

A Hydraulic Relief Valve is a crucial safety component used in hydraulic systems. The following is a detailed introduction to its content:

I. Definition and Function

The Hydraulic Relief Valve is primarily used to control the pressure in hydraulic systems. When the system pressure exceeds the preset value, the relief valve opens, allowing excess hydraulic oil to flow back to the reservoir, thereby protecting the system from damage due to excessively high pressure. Additionally, it stabilizes the system pressure and prevents overload.

II. Working Principle

The working principle of the Hydraulic Relief Valve is based on the balance between fluid mechanics and spring mechanics. When the system pressure rises to the preset value, the hydraulic force acting on the valve spool overcomes the spring force, causing the valve spool to open and allowing oil to flow back to the reservoir through the overflow port. When the system pressure drops below the preset value, the spring force pushes the valve spool back to the closed position, preventing further oil overflow.

III. Types and Structures

Hydraulic Relief Valves come in various types and structures, including direct-acting and pilot-operated types. The valve spool of a direct-acting relief valve is directly controlled by the system pressure, while a pilot-operated relief valve uses a pilot valve to control the system pressure. Furthermore, based on adjustment methods, Hydraulic Relief Valves can be classified into knob-type, hex sleeve and protective cap-type, lockable knob with scale-type, and knob with scale-type, among others.

IV. Performance Characteristics

1. Accurate Pressure Control: The Hydraulic Relief Valve can precisely control the system pressure within the preset range.

2. Overload Protection: When the system pressure is too high, the relief valve automatically opens to prevent system overload and damage.

3. Good Stability: The Hydraulic Relief Valve exhibits excellent stability, maintaining consistent performance under various operating conditions.

4. Strong Corrosion Resistance: Made of corrosion-resistant materials, the Hydraulic Relief Valve can adapt to harsh working environments and extend its service life.

V. Application and Maintenance

Hydraulic Relief Valves are widely used in various hydraulic systems, such as engineering machinery, metallurgical equipment, shipbuilding, and other fields. During use, regular inspections and maintenance of the Hydraulic Relief Valve are required, including cleaning the valve spool and valve seat, checking the spring force for appropriateness, adjusting the preset pressure, etc., to ensure its proper operation and extend its service life.

In summary, the Hydraulic Relief Valve is an indispensable safety component in hydraulic systems, featuring accurate pressure control, overload protection, good stability, and strong corrosion resistance. In practical applications, it is necessary to select the appropriate type and structure of the Hydraulic Relief Valve based on specific operating conditions and perform regular inspections and maintenance to ensure its proper operation.
