Product details

Product Description

DD-Fence Middle Security

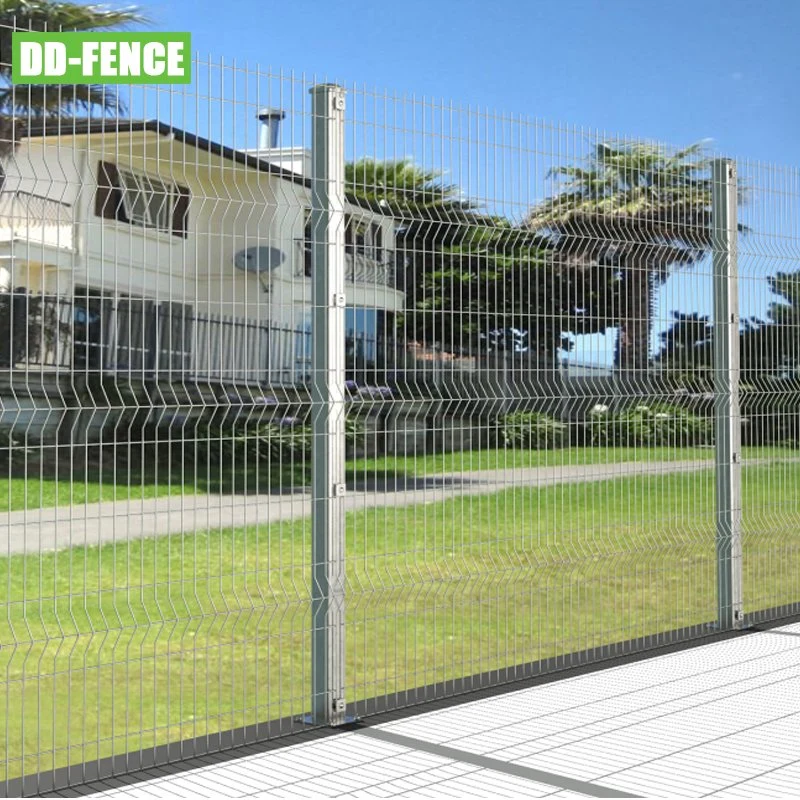

Nor-Mesh Wall 3D Welded Mesh Fence

Hot Sale Galvanized 2.0m High Welded Wire Mesh Fence for Park Garden Villa Industry Airport Commercial Area

Nor-Mesh Wall
including Mesh Panle, Post, Fittings for installation, and Alternative Top Security parts.

Panel
is welded with high quality Pre-Galvanized wire(Q195-Q235), then with Polyester Powder Coated.
or welded with high quality black wire (Q195-Q235), then Hot Dip Glavanized in the Zinc Pool.
There are Several "V" Curves are positioned on the panels to enchance the level of Rigidity.
Producing Standard as per EN10244

Post
is shaped from galvanized coils, with SHS, RHS, CHS, Peach, I Type post sections, then doing the Polyester Powder Coated.
or shaped from raw black coils, then doing the Hot Dip Galvanized Process.
Producing Standard as per EN10346.

Top Alternative:

Extension Arm with barbed wire, Razor Wire, or Electric Wire

Fitting of Bolts Nuts, are stainless steel 304, or Zinc Aluminum Coated

The Finish with Akzo Nobel- Interpon 600 series powder or Hot Dip Galvanized Process, all pass 500H-1000H salty spray followed by ISO9227.

High Quality Galvanized Metal PVC Coated 3D V Bending Welded Curvy Wire Mesh Panel Fence for Garden Farm

Specification of Panel:

Code	Panel Height	Panel Width	Wire Dia	Mesh Size	No. V Curve
111-1530	1530 mm	2500 mm	4.0mm or 4.5mm	50x200mm	3
111-1730	1730 mm	2500 mm	4.0mm or 4.5mm	50x200mm	3
111-2030	2030 mm	2500 mm	4.5mm or 5.0mm	50x200mm	4
111-2430	2430 mm	2200 mm	4.5mm or 5.0mm	50x200mm	4
111-2730	2740 mm	2200 mm	4.5mm or 5.0mm	50x200mm	4

Specification of Post:

Item	Section-1	Section-2	Thickness	Installation-1	Installation-2
SHS Post	60x60 mm	80x80 mm	2.0mm or 2.5mm	Post depth in the Ground with Concrete	Screw Pile Or Welding with Flange Plate
RHS Post	40x60 mm	60x80 mm	2.0mm or 2.5mm
Peach Post	50x70 mm	70x100 mm	1.2mm or 1.5mm
I type Post	70x44 mm	100x55 mm	1.5mm or 2.0mm
CHS Post	ø60 mm	ø76 mm	2.0mm or 2.5mm

Top Alternative Option:

1, Barbed Wire, Razor Wire, with Exetension Arm

2, Wall Spike

3, Electric Fence

As one of the leading manufacturers on perimeter fencing products, DD-FENCE has more than Ten years running experience, and enjoy a high reputation in China fencing industry. Now our business covers: Steel or Aluminum Fencing, Cast Aluminum or Cast Iron fencing, as wells as kinds of swing or sliding gates.

Also as a ISO9001 & ISO14001 certified company, DD-FENCE always supply high quality products to end users, and to ensure the consistency of the quality, we have spent a lot of efforts on selection and optimization of our raw material & fittings supply chain. In addition, we have also take more care of QC on each production procedure. Now the qualified rate of DD-FENCE products reached 99.5%. And products quality warranty ranged from 10-20 Years.

Our main products: Iron wire welding type fence; Steel wire woven type fences; Tubular welding metal fence; Iron/steel/ Aluminum Tubular assembly type metal fences; Steel razor wire and steel barbed wire protective products ;metal gate and accessories.
Our main market at the moment: South Africa,Qatar, Iraq, Australia, United Arab Emirates,United States, Brazil, Turkey, Nigeria and so on.

High Quality Galvanized Metal PVC Coated 3D V Bending Welded Curvy Wire Mesh Panel Fence for Garden Farm

If you have any interest or questions, please feel free to contact me.
Your detailed inquiry to Steven Lee , will get reply within 24Hours!
