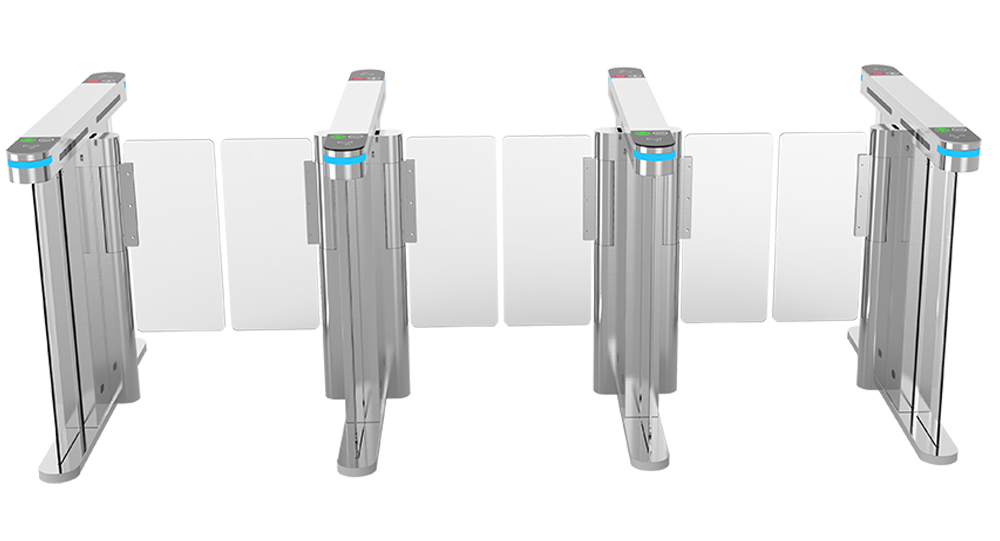

High Security RFID Optical Face Recognition Speed Gates
Fast door is one of the important part of exit control in Access gate. The door wing is driven by the control system to automatically open and close. The operating mode can be selected through programming settings: As long as the entry has been verified, the door wing opens automatically. Closed after delay, the delay time is adjustable. The characteristic is that the running direction of the door wings is forward and backward. The operation process is within the sight of the human body, making it safer. The style of full height barrier gates is changeable. Generally used in banks, corporate buildings, high-end office buildings, etc.
The swing barrier wing is designed to be in front of pedestrians when the gate Access is closed due to unauthorized entry. Will not cause harm to the human body due to pedestrians avoiding in time. The door wing is driven by a servo motor. The driving process is gentle and the rotating torque is constant and less than 120NM. When the door wing is closed due to unauthorized entry, it can ensure that the impact force will not cause harm to the human body. It is safer and more reliable than other operating methods. In an emergency, when the flow of people is congested, under the strong impact of the crowd, the door wings can be pushed forward to safely evacuate the flow of people without causing accidental casualties.
Why choose us？
Shenzhen Sanan Technology Co., Ltd, Top 10 Security Brands in China，a high-tech enterprise with 13 years experience specializing in the Gate Automation System of turnstiles and smart parking system. Appraised as a high-tech enterprise six consecutive years. It is an enterprise integrating production, research and development, and sales. Obtained 30+ patent certificates. In the product production process, the product needs to go through 320 production processes, 12 quality inspection processes, and 72-hour aging process. In terms of software, we continue to optimize and upgrade standardized products and special customization requirements based on market application requirements and customer experience. We always insist on continuously innovating technology, and strive to create a global security industry boutique, to provide customers with better products.
Our production range includes tripod barrier gates, swing barrier gates, speed gates ,Full Height Barrier gates, parking boom barrier and revolving doors which are widely used in subways, office building and other public area.
Sanan speed gates adopts brushless motor, low wear, stable operation, alarm when passing through customs, anti-following, fast passing speed, not only beautiful, generous, high-end, but also easy to integrate IC card, ID card, QR code, fingerprint, Face Identification equipment can realize intelligent and efficient management of channels.
1. With fault self-checking and alarm prompt function, it is convenient for users to maintain and use;
2. Two-way swiping card, in and swiping out of the card can be set to open the door and other various modes of access;
3. Anti-shock function, the gate will be locked automatically when the gate opening signal is not received;
4. Illegal break-in and trailing sound and light alarm;
5. Infrared anti-pinch function, in the process of resetting the gate, the gate will automatically return to the open state when the infrared detects a person in the passage;
6. The swing arms can be adjusted at the same time (for double swing conditions);
7. It has an automatic reset function. After opening the gate, the swing gate will reset automatically when it is not passing within the specified time, and the waiting time is adjustable (the default time is 5S);
8. The unified standard external port can be connected to a variety of access control equipment, and can be remotely controlled and managed through the management computer.
9. Support multi-functional system customization and docking.
Product Info：
◆ Dimension：1200*(120+82)*1020mm
◆ Case Material：SS304 Stainless Steel,Tempered Glass,Acrylic
◆ Pass Width：600-700mm
◆ Material Thickness：1.5+1.2mm
◆ Passage Direction：Single Directional / Bi-Directional
◆ Passing Rate：35-45persons/Min
◆ Opening Method：ID/IC Card Reader，Infrared Sensor，Qr，Fingerprint，Face etc
◆ Communication：Dry Contact / RS232
◆ Mcbf：>9million Times
◆ Infrared Sensor：6 Pairs
◆ Power：60-90W
◆ Working temperature -20ºC~75ºC
◆ Working environment Indoor
◆ Power input AC220±10% 50Hz
◆ Mechanism：DC24V Brushless Planetary Motor (Optional
◆ Protective Function：Encoder Limit，Clutch Anti-Collision， Infrared Ant-pinch，illegal intrusion infrared alarm
◆ Transport Package：Carton or Plywood Case
Product advantages：
◆ No noise.
◆ Years of experience in drive research and development;
◆ The frame basically adopts the anti-cutting handbag edge design;
◆ Imported electronic components are selected for the infrared sensor;
◆ The movement drive adopts high temperature quenching to treat the gear drive, with high strength and not easy to wear;
◆ Unique drawing pattern of the frame;
◆ The middle acrylic partition can be customized with light effect pattern;
Customizable extension functions:
◆ Counting and alarm functions;
◆ Swing arm color
◆ Remote control switch
◆ Dynamic face recognition
◆ Static face recognition
◆ Emergency escape function can be added to open the brake by remote button in case of emergency
◆ Fingerprint identification by attendance machine
◆ Qr code access
If you are interested in the product, contact 2bvideo.com for more information for more information
