PTFE Conveyor Belt

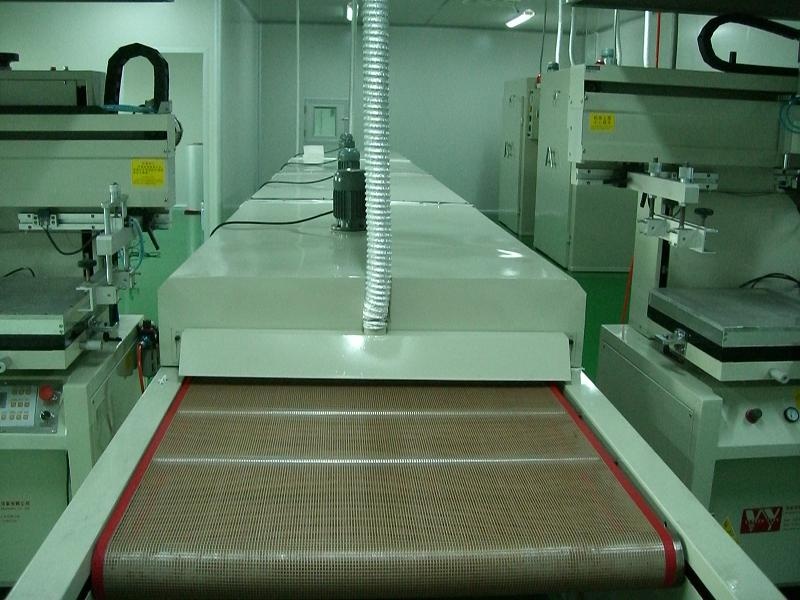

Zobon PTFE Mesh Conveyor Belt are made from high quality open mesh woven fiberglass coated with ptfe resin.The open mesh area allows maximum air flow optimising drying times. Designed to operate in extremes of both temperature and chemical exposure,PTFE Conveyor Belt or PTFE Mesh Fabric have been a natural choice for dryer manufactures.Ptfe Fusing Machine Belt is ideally suited for conveying products and is commonly used in a wide variety of industries,such as gas,electric,infrared(IR),radio frequency(RF),microwave and ultraviolet(UV) conveyorized drying operations.

Properties:

Lightweight and energy efficiency for economical operation
Outstanding temperature resistance (-170oC + 260oC)
Low thermal mass
Controlled porosity
Superior non-stick surface,easy to clean
Exceptional strength and dimensional stability

Benefits to other stainless steel and plastic belts:

Superior trac
Cost Savings: PTFE belts are less expensive to purchase and, due to their low relative mass, can be operated utilizing a simpler, less expensive pulley and drive system
Energy Savings: PTFE belts provide better heat transfer and absorb less energy
Lower Maintenance Costs: PTFE belts are non-stick and easy to clean

Main Specifications:

Model	Mesh Size	Material	Thickness	Weight	Max Width	Tensile Strength
6001	1x1mm	fiberglass	0.5mm	370g/m²	4000mm	310/290N/cm
6003	4x4mm	fiberglass	1.0mm	400g/m²	4000mm	390/320N/cm
6004	4x4mm	fiberglass	1.0mm	450g/m²	4000mm	390/320N/cm
6007	4x4mm	fiberglass+kevlar	1.2mm	600g/m²	4000mm	895/370N/cm
6008	4x4mm	fiberglass	1.0mm	500g/m²	4000mm	395/370N/cm
6010	4x4mm	Kevlar	1.0mm	500g/m²	4000mm	900/600N/cm
6012	4x4mm	fiberglass	1.0mm	550g/m²	4000mm	395/370N/cm
6013	10x10mm	fiberglass	1.2mm	450g/m²	4000mm	360/300N/cm
6014	0.5x1mm	fiberglass	0.5mm	420g/m²	4000mm	310/290N/cm
6015	2x2.5mm	fiberglass	0.9mm	600g/m²	3000mm	390/320N/cm

Splice/Joints Styles:

To assure the best performance and accurate tracking, we recommend that wherever possible, conveyor belts be ordered with splices. We offer all the standard splices. Please call our technical service department to discuss which splice would be best for your specific application.

Spiral splice

Castellated Splice

Bullnose Splice

Edge Reinforcement Styles:

To enhance the tracking and belt life, Zobon offers three styles of edging:

PTFE Film- PTFE film encapsulates the edge the help stop fraying and offer protection. The benefit to using film is that it is soft in nature and will stretch with the belt when under tension.There are red,white,black three colours for your option.

PTFE Coated Fiberglass - PTFE coated fiberglass edging can be used as a sturdier option to film and a good option if a tracking arm is used to detect the edge of the belt when coming in to contact with it.

PTFE Coated Kevlar - This is the most durable of the edging types and is a good option when the edge of the belt will be in contact with tracking aids. It is also a good option when considering using tracking studs of cord on the belt.

Applications:

Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
Shrinking machine for garment fabric, high-frequency and UV dryer.
Conveyer belt for hot-air dryer, various of food baking, quick-frozen machines.
Side and base sealing auto pack machines,over wrapping/tray packing
Re-soldering and ink drying cable braiding
Heat-setting synthetic yarns
Curing and cooling extruded rubber products, e.g. Automotive
Manufacture of tortillas, pizza crusts and pitas
Baking and cooling of bakery goods and confectionary
Cooking and grilling of meat, poultry, fish and vegetables
Garment fusing
Manufacture of carpet mats
Manufacture of specialty wood products
Tank seals and contaminant barriers
Tissue side sealing
