The Introduction Of 6 Axis Pneumatic Robot Automatic Lock Screw Machine
According to the feeding mode, the automatic locking screw machine can be divided into pneumatic blowing automatic screw tightening machine, pneumatic blowing automatic screw tight machine, and blow and suction combined automatic screw locking machine.
1. The advantages of pneumatic suction automatic screw driving machine:
Not affected by screw size.
Main features: If the screw is too small or too short, the air blowing (pipe delivery) machine will not be able to automatically feed the nail. The robot drives the electric batch to absorb the screws and move and lock them (lock the screws point by point)
2. The features of pneumatic blowing screwdriver automatic machine
The biggest advantage is flexibility, stability and high efficiency.
According to the set coordinates, the machine automatically completes the product locking and tightening. It can realize the installation of multiple screwdrivers and lock multiple screws at one time, and the production efficiency is extremely high.
The Parameters Of Automatic Screw Fitting Machine
Applicable specifications: M1.0-20mm, L2.0-90mm
Tightening: Screws, nuts, sleeves, rivets, plugs, gaskets, washers
Working pressure: 5.5±0.5kgf/cm2
Torque upper limit: 500kgf.cm (50N.m)
Running accuracy: 1000mm/sec ±0.02mm/axis
Control method: PLC+HMI Industrial computer +Display
Motion module: Servo motor +screw slide; linear motor+linear slide
Programming: Independent development of English operating software
Feeding method: Pneumatic blowing, pneumatic suction, blowing and suction
Stuck rate: ≤0.1%
Tightening speed: 1.5-2.5/screw
Screwdriver: Servo screwdriver, electric screwdriver
Effective stroke: According to product customization
Integrated function: Torque detection + depth control + MES function Sliding teeth + floating lock + leak lock alarm and prompt.
The automatic feeder screwdriver machine use the six-axis moving and tightening, jigs move synchronously, suitable for high-efficiency or multiple screw tightening.
The double stations operate alternately, without affecting the pick-and-place of the workpiece, which greatly improves the work efficiency.
This automatic robot locking screw machine can tighten different kinds of screws.

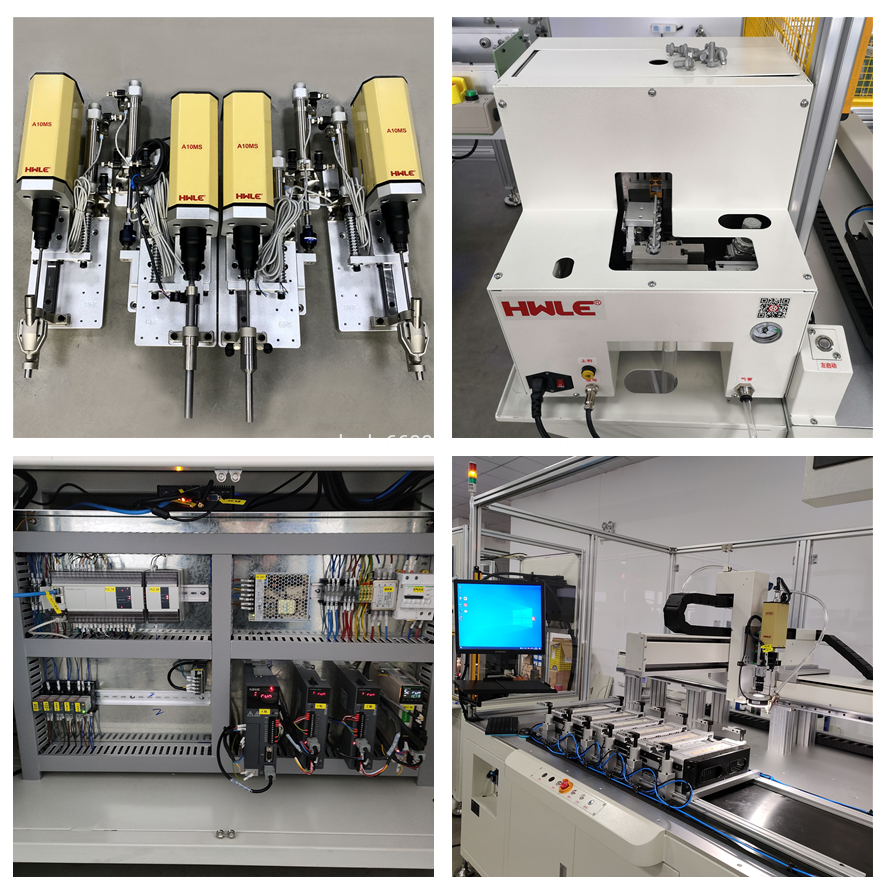

This automatic dual screw locking machine use the servo mortor drive system,the servo motor has large output, fast response, high speed, smooth rotation and stable torque.

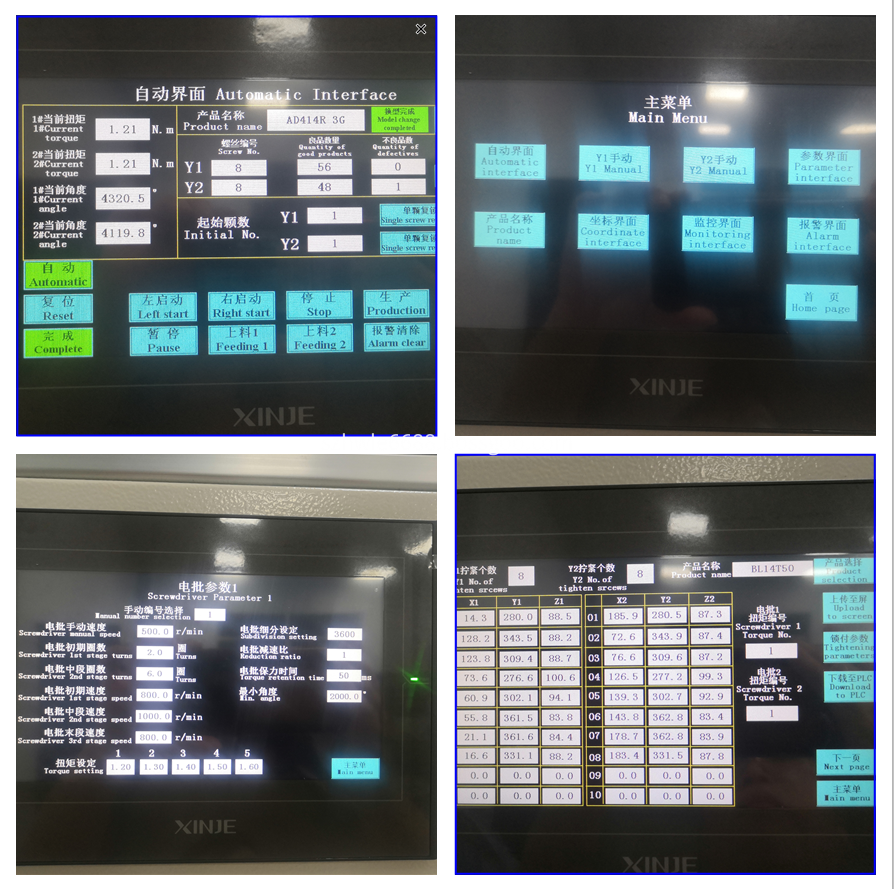

The controller interface displays the main data of the tightening process in real time: actual torque value, rotation angle value, process time, eligibility etc.; displayed and set by the touch screen.

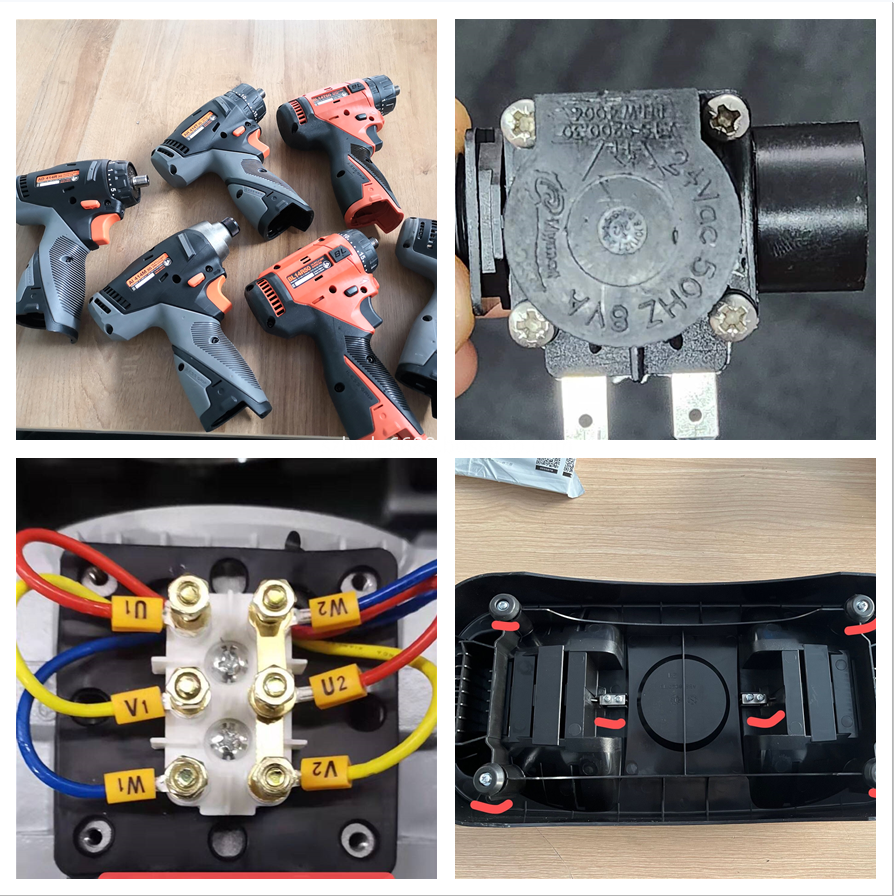

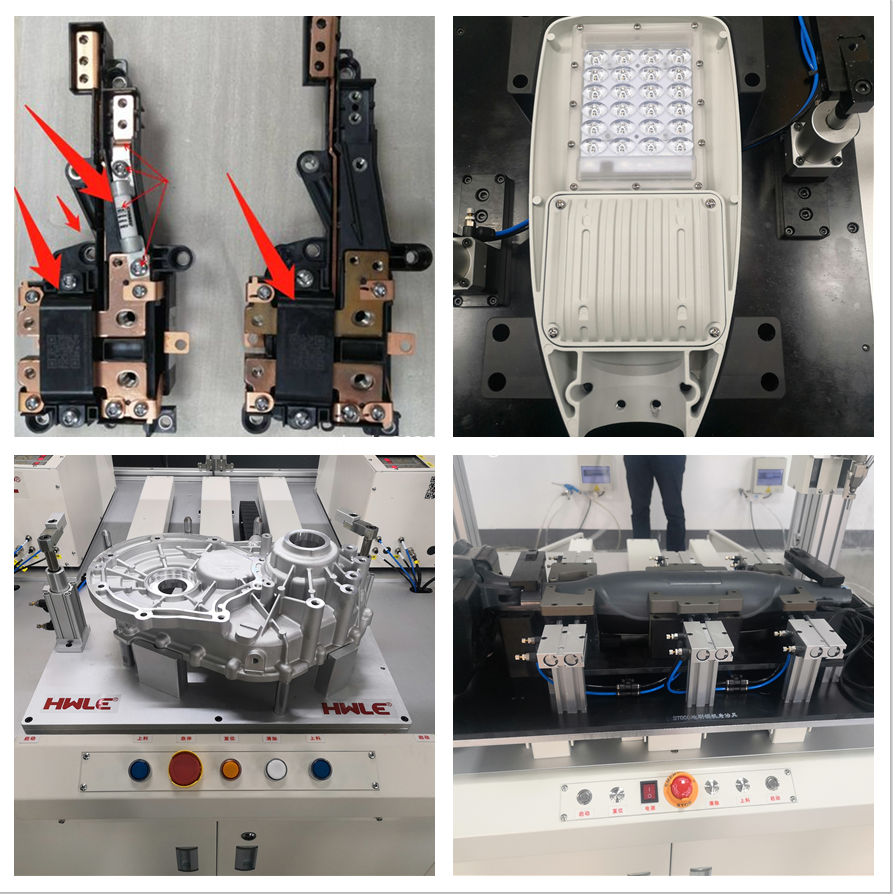

The automatic locking screw machine can be used in the following industries
1. Communication industry: mobile phones, cameras, hard disks, keyboards, printers, computers, DVDs, home appliances, plastics, toys, electrical appliances, communication equipment, toys, electronic processing and assembly, etc.
2. Automobile industry: new energy battery tray, rearview mirror.
3. Screw assembly of electric tools, garden tools, motors and other parts.
4. Lighting fixtures

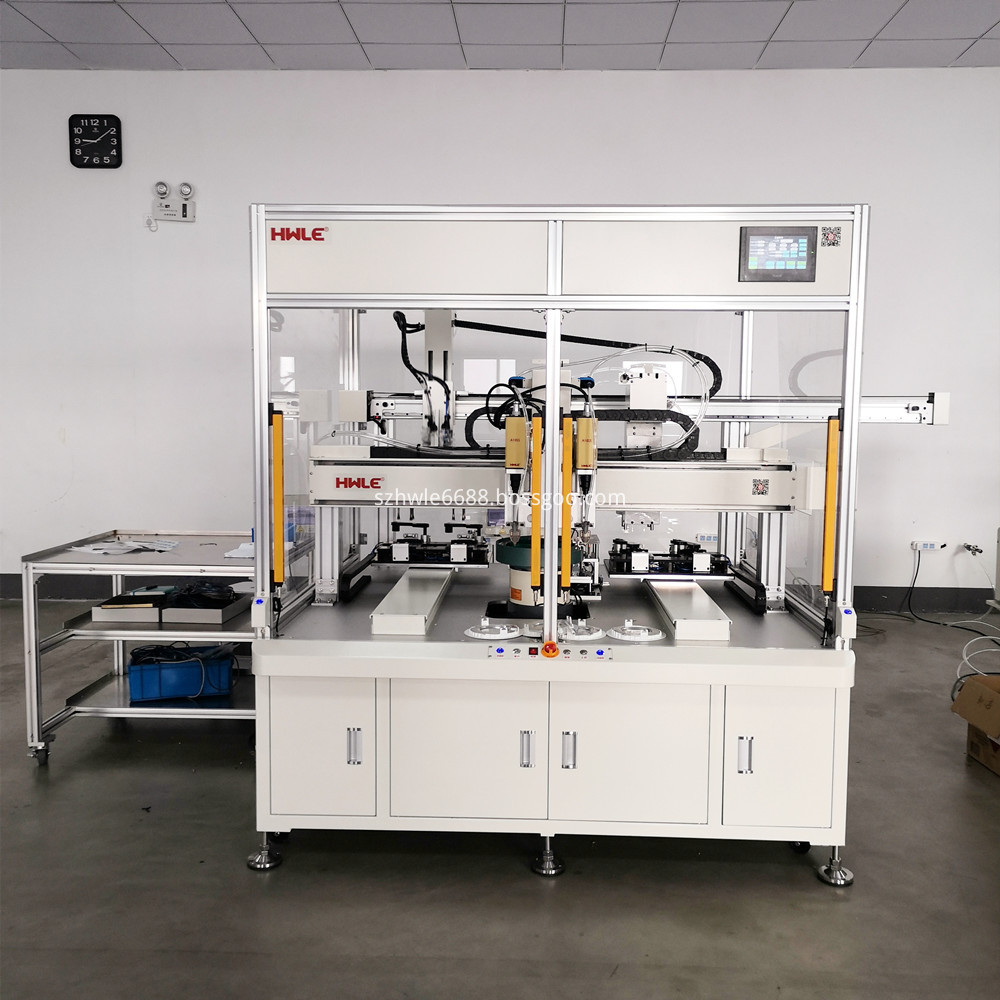

The 6 axis standard automatic screw locking machine use double screwdrivers stations, effectively increasing production capacity.

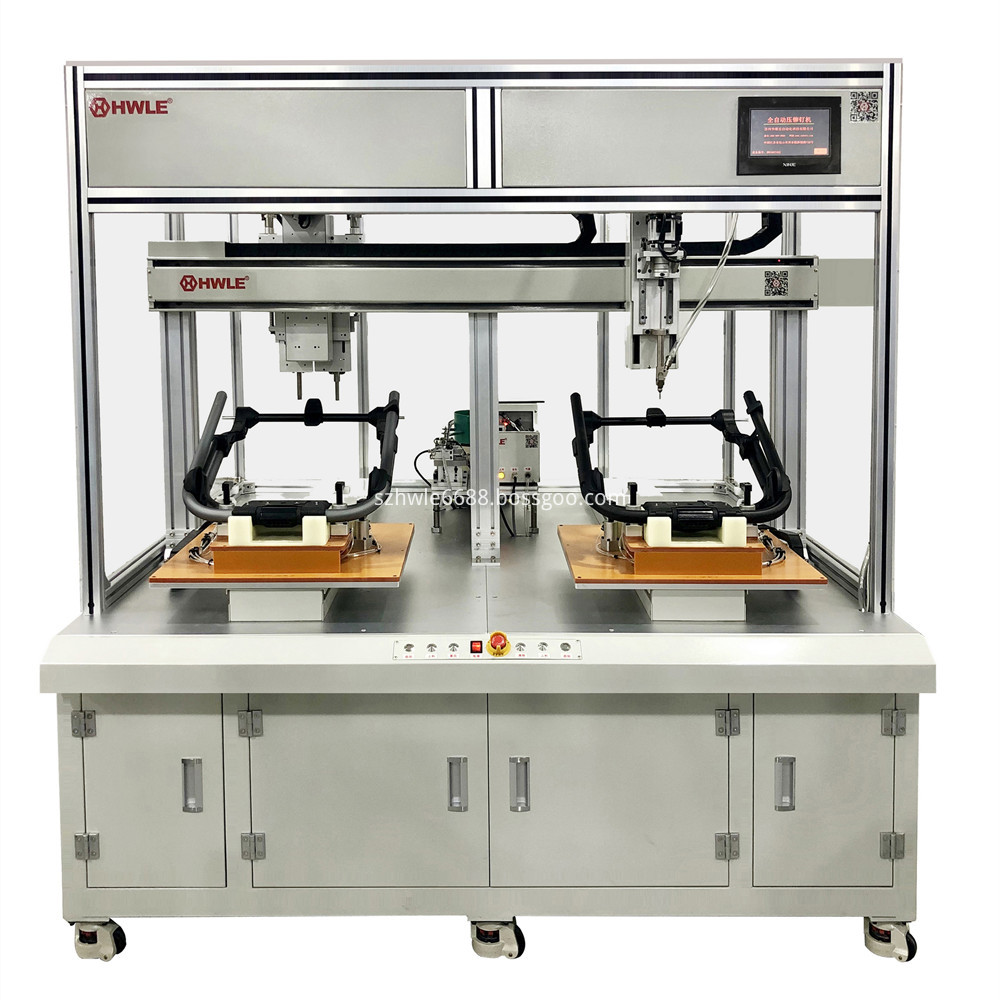

Double Y-axis Automatic Locking Screw Machine——PLC system control, double Y-axis alternate operation, the machine can work non-stop, saving 3-4 manpower.
