The PBM16 Series IP68 metal push-button switch has a superior feel to the hand and excellent resistance to fine dust intrusion, as well as splash and soak qualities. Dust and water resistance is rated up to IP68. The switch can easily cope with harsh environments. They also offer a variety of functions, including self-locking and momentary functions. It has a mechanical lifetime of 300,000 cycles and an electrical lifetime of 50,000 cycles.

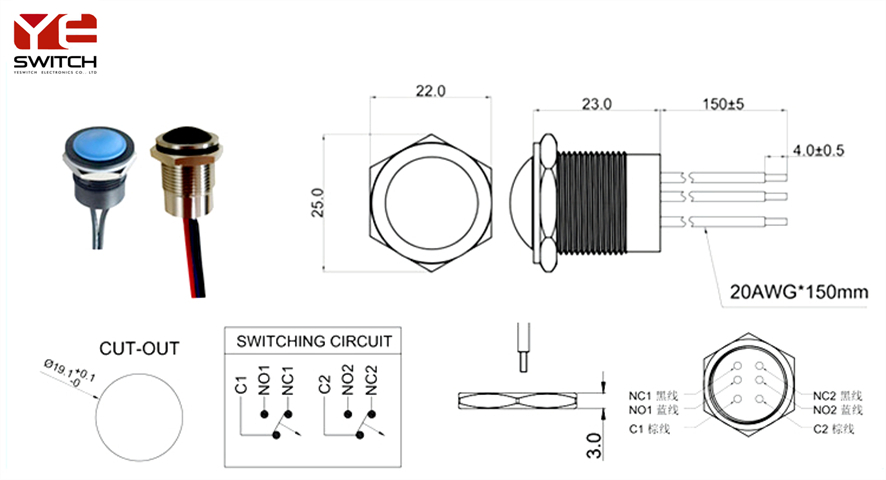

16mmWaterproof Pushbutton Switches SPECIFICATIONS SAFETY/QUALITY APPROVALS TUV/CQC/CE/SGS/REACH/IP68/CTUVUS
Panel Thickness: Ø16.20
Contact Rating: lth 5A/250VAC resistive load 3A/250VAC Electrical Life: 50,000 make-and-break cycles at full load Torque: 5~14Nm Travel: About 3.0mm
Operation Pressure: 2.5±1N
Dielectric Strength: 2,000 Vrms @sea level. Ingress Protection: IP68
MATERIALS BUSHING : Stainless Steel / Nickel plated brass / Aluminum alloy BASE : PBT, PA66 ACTUATOR : Sillicone . INNER ASSEMBLY : POM / PA66. SPRING : Spring steel. SEALING : Sillicone. O-Ring : Sillicone TERMINAL : Brass,with silver or gold plated. HEX NUT : Nickel plated brass
Led: 1.8V/3V/6V/12V/24V/36V/48V/110V/220V ILLUMINATION BASE RATlNG： Red， Yellow and Orange：20mA 1.8V; Blue, Green and White：20mA 2.8V Beads Color：R/U/G/Y/0/W |
