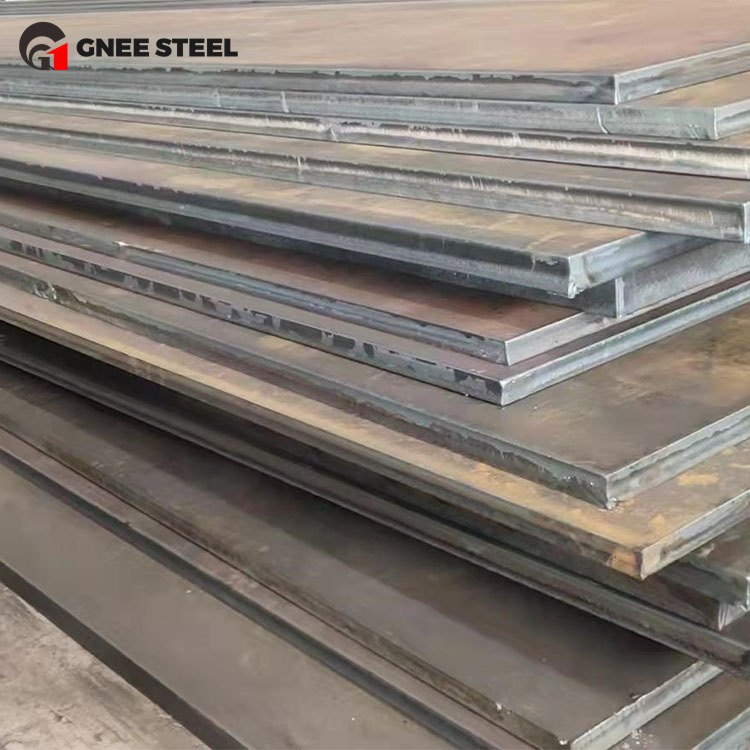

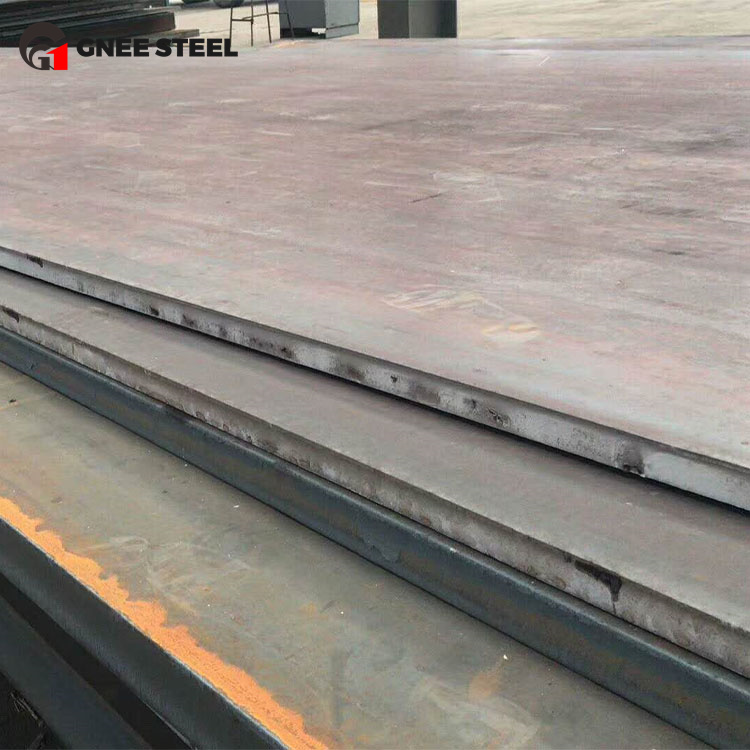

A537 Pressure Vessel Plate

The ASTM A537 specification covers heat-treated carbon steel plates for pressure vessels.

ASTM A537 Grade 1 plates are supplied in the normalised condition, while Grade 2 plates are quenched and tempered. ASTM A537 carbon steel plates have higher tensile and yield strengths than pressure vessel plates supplied under ASTM A516.

ASTM A537 Grade 1 carbon steel plate is designed for pressure vessel applications.

ASTM A537 Grade 2 steel is a higher yield and tensile strength material used in the manufacture of pressure vessels and steel boilers.

D31

A537 class 1 boiler steel chemical composition:

C	0.24
Si	0.15/0.50
Mn < 40mm	0.70/1.35
Mn > 40mm	1.00/1.60
P	0.035
S	0.035
Cr	0.25
Mo	0.80
Ni	0.25
Cu	0.35

A537 Class 2 pressure vessel quality steel chemical composition:

C	0.24
Si	0.15/0.50
Mn < 40mm 870	0.70/1.35
Mn > 40mm	1.00/1.60
P	0.035
S	0.035
Cr	0.25
Mo	0.80
Ni	0.25
Cu	0.35

D23

A537 Class 1 boiler quality plates mechanical property:

YIELD (MPA)	TENSILE (MPA)	ELONGATION A50MM	ELONGATION A200MM	THICKNESS
345	485-620	22%	18%	< 65
310	450/585	22%	18%	> 65 < 100

A537 Class 2 pvq plate mechanical property:

YIELD (MPA)	TENSILE (MPA)	ELONGATION A50MM	ELONGATION A200MM	THICKNESS
415	550/690	22%	–	< 65
380	515/655	22%	–	> 65 < 100
315	485/620	20%	–	> 100 < 150

We can provide customized services. We can customize EN10225 Shipbuilding Steel Plate, AR500 Wear Resistant Plate, A516 A515 A533 Steel Plate and other products according to your needs. If you have any needs, please contact us.
