52x60 Fiberglass Electronic Mesh Cloth

2 year ago

1 0

Chongqing Qingtao Fiberglass Products Co., Ltd.

 2 year year

Product details

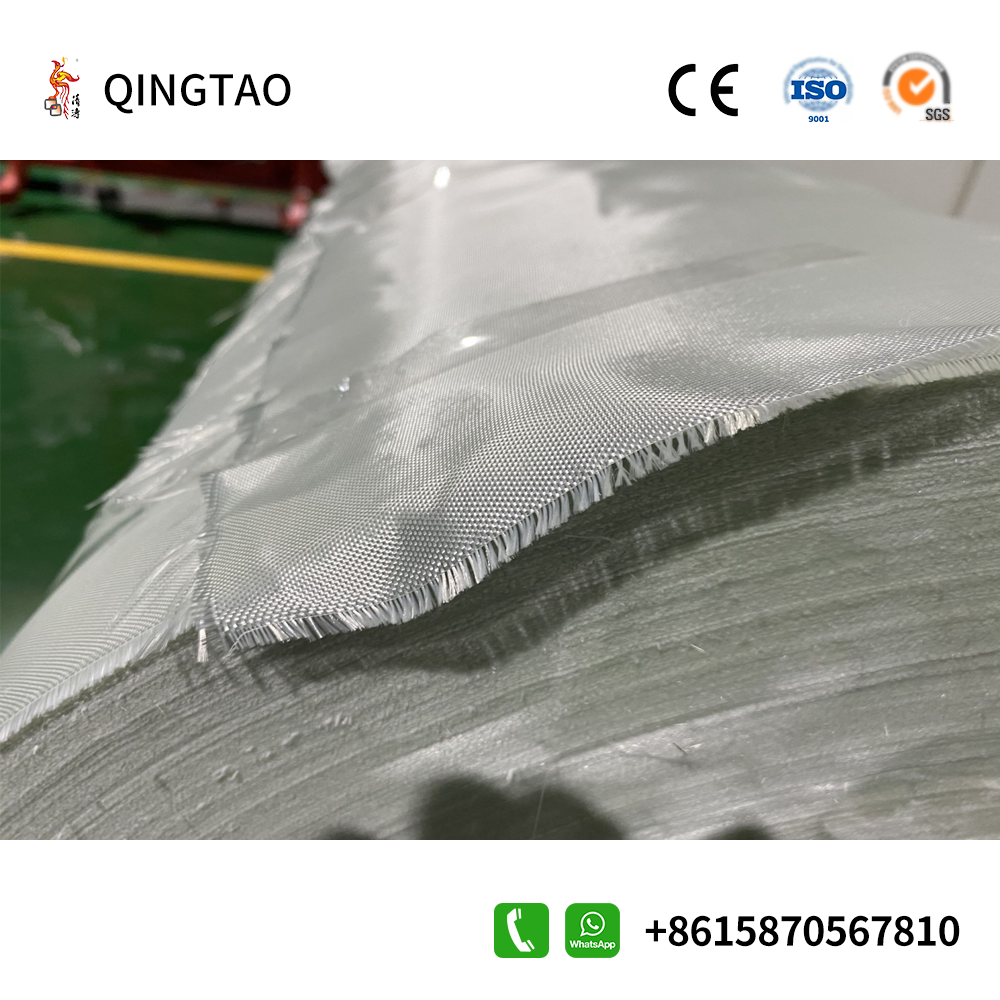

Electronic Fiber Glass cloth mainly uses electronic grade glass yarn and is woven with plain weave. Its main performance and characteristics: good electrical insulation performance, fire retardant, waterproof, aging resistance, weather resistance, high strength, high modulus and other characteristics. It is widely used in epoxy copper-clad laminates, PTFE, high-temperature tapes, sports equipment, prepreg cloth backings, silicone electrical insulation products, printed circuit boards, fireproof boards, insulation boards, and aviation and military fields. Main varieties of fiberglass cloth: (i.e. thickness: 0.18mm, 0.1mm, 0.08mm, 0.05mm, 0.03mm, 0.14mm) International labels: 7638 cloth, 7629 cloth, 7628 cloth, 2116 cloth, 1080 cloth, etc.

E Glass

Features :

1. Excellent clustering properties, low static electricity, and low lint content.
2. Good temperature resistance and extremely low color difference.
3. It has good interface properties with the matrix resin.
4. It has very good fluidity in resin.
5. It can give composite materials good physical and chemical properties.
6. Use silane coupling agent.

7. Use proprietary sizing agent to ensure good compatibility between chopped fibers and matrix resin.

SPECIFICATION

Item	Texture	Yarn	Density (inch)	Weight (g/m)	Thickness (mm)	Temperature resistance (℃)	(N/inch)		Regular size of one roll(m)	N.W.per rol (kg)
Item	Texture	Warp x Weft	Density (inch)	Weight (g/m)	Thickness (mm)	Temperature resistance (℃)	Warp	Weft	Regular size of one roll(m)	N.W.per rol (kg)
106		D900×D900	56×56	24±2	0.030±0.005	550℃
1035		D900×D900	66×68	29±2	0.030±0.005	550℃
1067		D900×D900	71×69	30±2	0.030±0.005	550℃
1078		D450×D450	55×53	48±2	0.045±0.008	550℃
1080	Plain	D450×D450	60×47	48±2	0.045±0.008	550℃			1*100	4.68
1086		D450×D450	60×58	52±2	0.050±0.008	550℃
1504		DE150×DE150	60×52	149±4	0.125±0.015	550℃
1506		E110×E110	47×45	162±4	0.140±0.015	550℃
2112		E225×E225	40×40	70±3	0.070±0.010	550℃
2113		E225×D450	60×56	78±3	0.070±0.010	550℃
2116	Plain	E225×E225	60×58	105±3	0.090±0.010	550℃			1*100	10.5
2117		E225×E225	60×55	107±3	0.090士0.010	550℃
2125		E225×G150	40×40	86±3	0.085±0.010	550℃
2155		E225×DE150	60×55	125±3	0.110±0.010	550℃
2313		E225×D450	60×64	81±3	0.075±0.010	550℃
3313		DE300×DE300	60×62	81±3	0.075±0.010	550℃
7627		G75×G75	44×30	200±4	0.170±0.020	550℃
7628	Plain	G75×G75	44×33	208±4	0.180±0.020	550℃			1*100	21
7630	Plain	G75×G75	44×32	220±4	0.190±0.020	550℃			1*100	22
7638	Plain	G75×G37	44×26	255±5	0.240±0.020	550℃			1*100	25.5
7567		G67×G67	44×32	220±4	0.190±0.020	550℃
7667		G67×G67	44×36	234±5	0.190±0.020	550℃
