MINI EXCAVATOR XN16, 0.045 BUCKET, 1.5TON, EURO 5 YANMAR DIESEL ENGINE

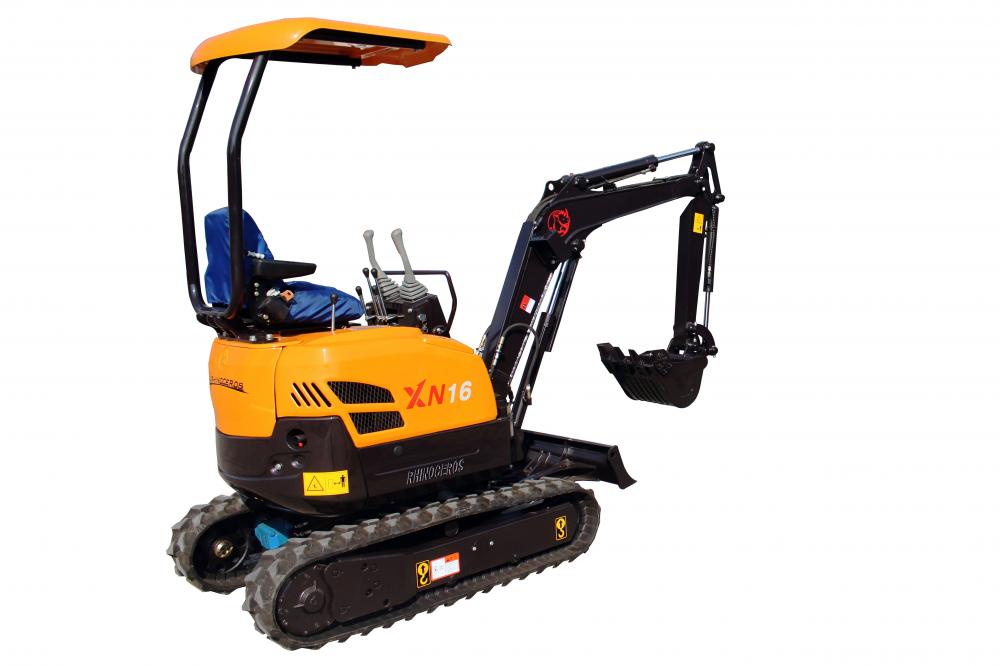

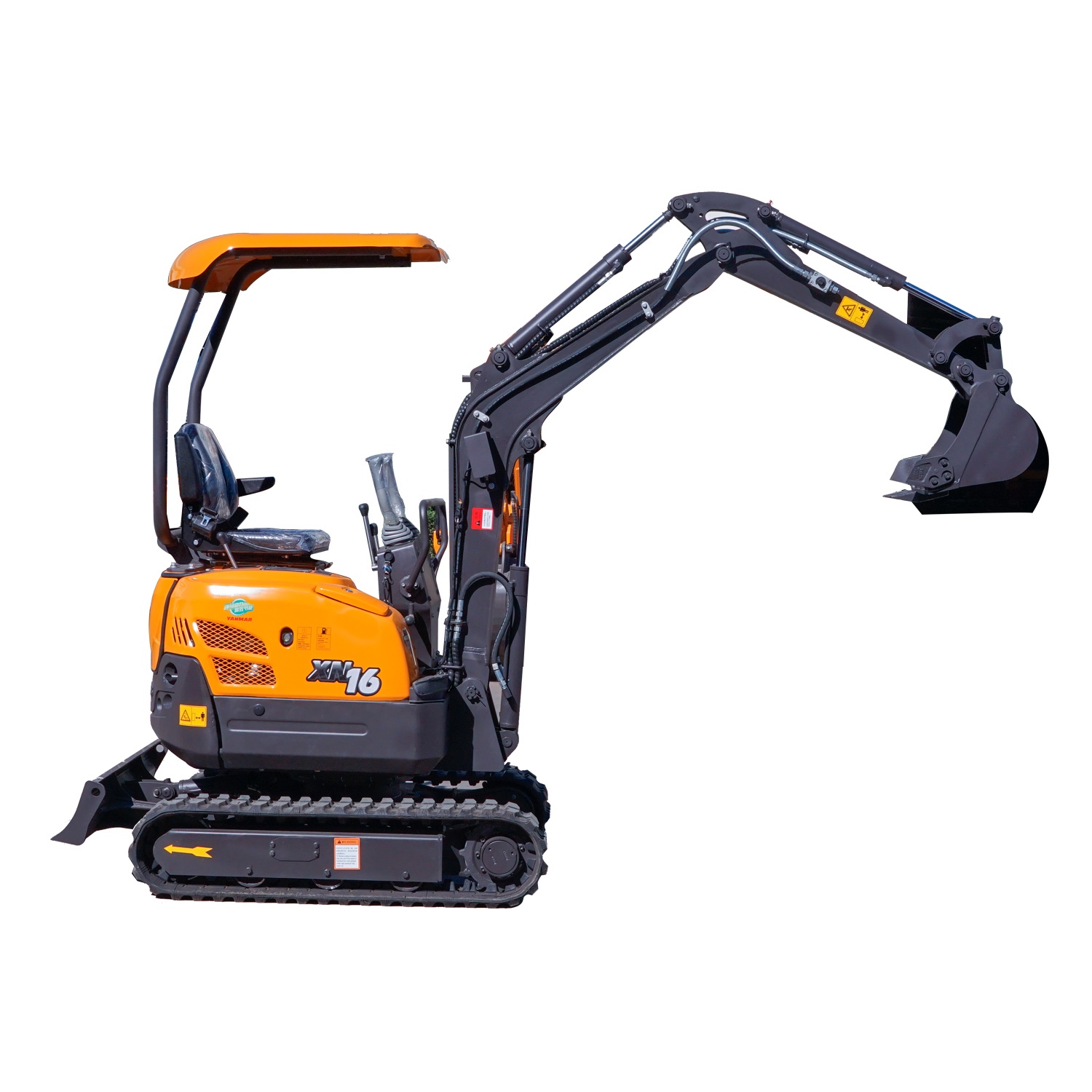

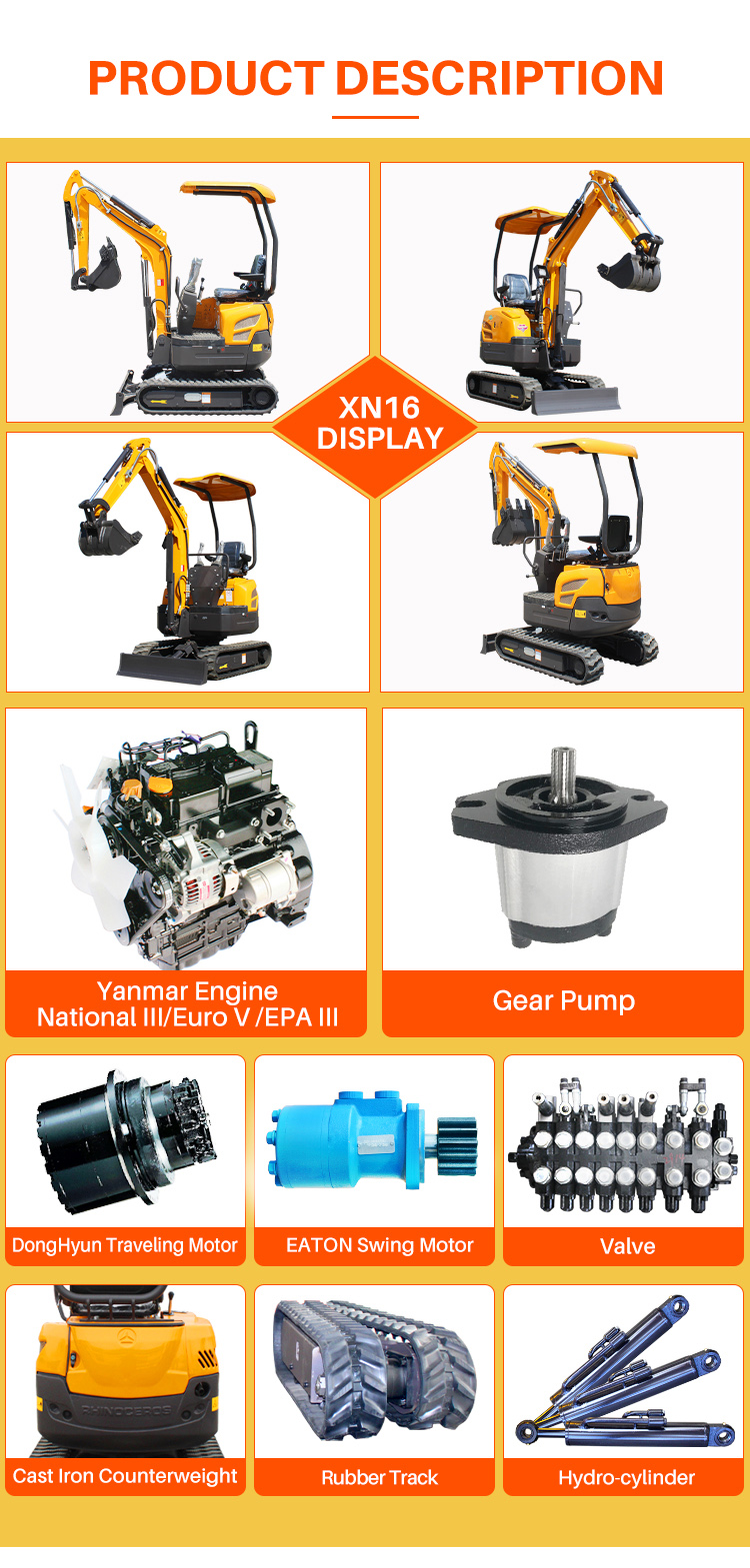

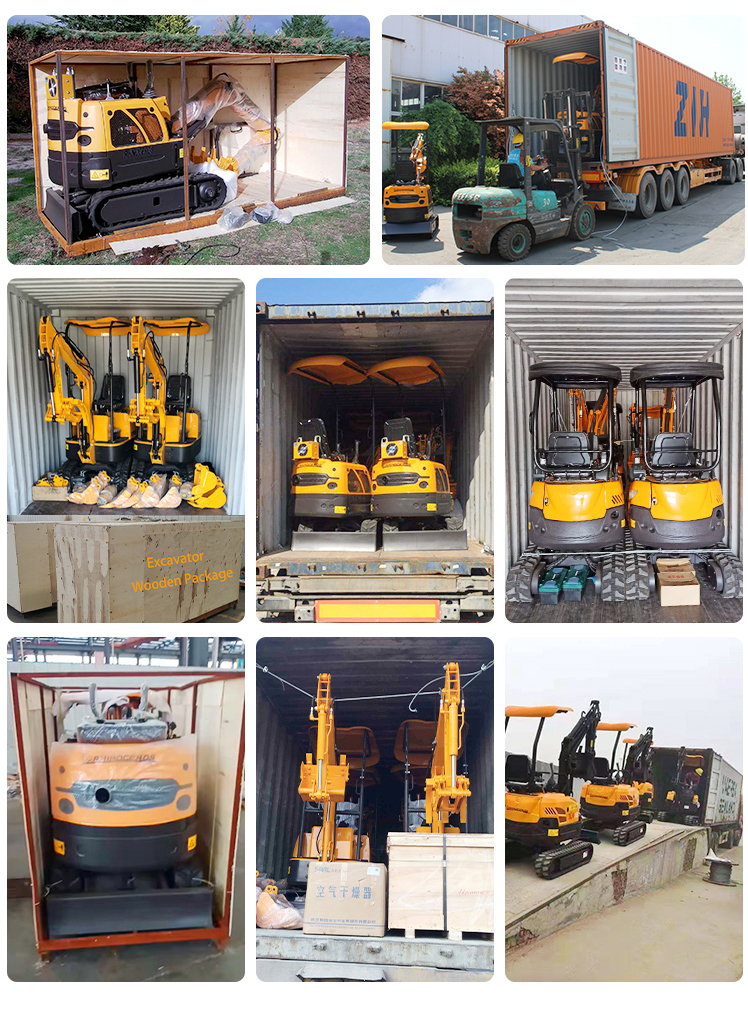

1. Crawler excavator XN16 Photos:
2. Crawler Excavator XN16 Specification:
|
Model |
XN16 |
|
Manufacturer |
SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD |
|
Brand |
RHINOCEROS |
|
Operating Weight |
1500kg |
|
Digging bucket capacity |
0.045cbm/400kg |
|
Digging bucket width |
400mm, can add narrow bucket is 200mm |
|
Engine |
Yanmar (3TNV74) EURO5 Engine |
|
Rated power |
11.2kw/2200/r/min |
|
Displacement |
0.854L |
|
Bore stroke |
three cylinder, water cool |
|
Main pump |
JINXING |
|
Pump flow |
23.3L/Min |
|
Hydraulic oil tank capacity |
15.3L |
|
Engine oil tank capacity |
2.8(1.3)L |
|
Diesel tank capacity |
19 L |
|
Working pressure |
16MPa |
|
Valve |
BEIFANG |
|
Displacement |
6.8ml/r |
|
Swing motor |
USA EATON |
|
Traveling motor |
SOUTH KOREA DONGHYUAN |
|
MAIN DEMENSIONS |
|
|
Overall dimension( LxWxH) |
3160x1040x2377mm |
|
Total length of track on land |
1670mm |
|
Platform ground clearance |
460 mm |
|
Platform back turning radius |
740 mm |
|
Chassis width |
1040 mm |
|
Track width |
230 mm |
|
Chassis ground clearance |
460 mm |
|
Bucket digging force |
10.5kn |
|
Arm digging force |
6.5kn |
|
Track height |
320 mm |
|
OPERATING RANGE |
|
|
Max. Digging depth |
2150 mm |
|
Max. Vertical digging depth |
1740 mm |
|
3275 mm |
|
|
Max. Dumping height |
2310 mm |
|
Max. Digging radius on ground |
3470 mm |
|
Min. Rotation radius |
1440 mm |
|
Max. Upgrade height of bulldozer blade |
262 mm |
|
Max. Digging depth of bulldozer blade |
192 mm |

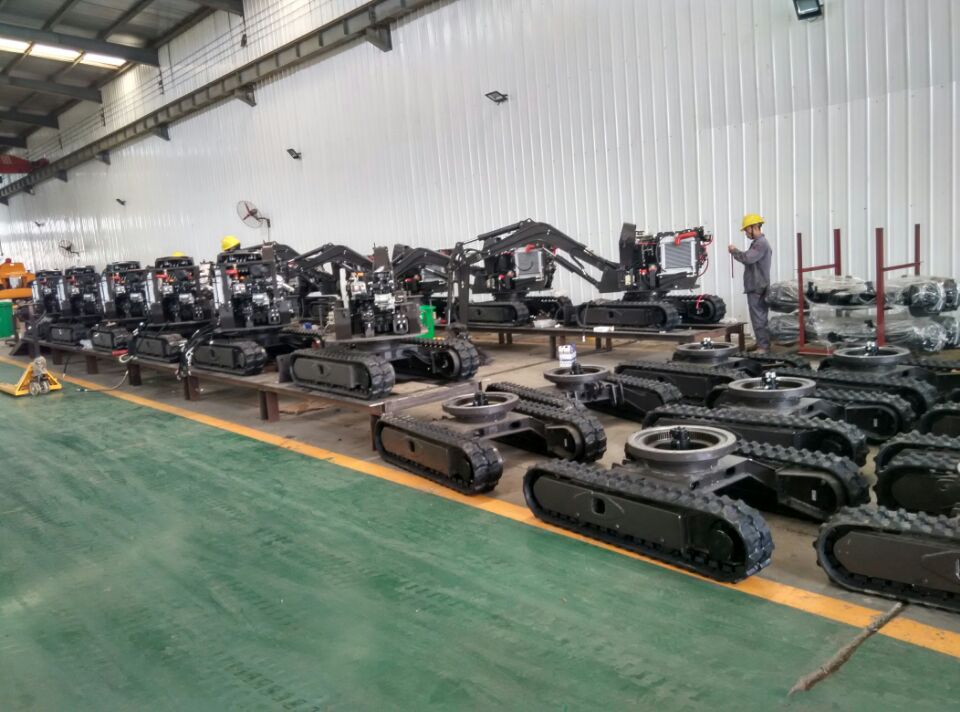

4. Production range:
We are power engineering machinery manufacturer in China, we produce the Excavator, Backhoe loader, Loader, Skid steer loader, Concrete pump, Concrete pump truck and the spare parts(Track shoe,Track chain,Idler,Sprocket,Track roller,Carrier roller,Pin,Bushings,Bucket,Narrow bucket,4-1 Bucket,Quick hitch,Quick coupling plate,Log grapple).
