17.5 meter high altitude work vehicle

2 year ago

0 0

Hubei Yingrun Automobile Co., Ltd

 10 year year

Product details

This foldable 17.5-meter high altitude opration vehicle is equipped with a 3360mm wheelbase Jiangling Shunda dual row cab chassis, engineering yellow, chassis model JX1061TSGA26, equipped with ABS, exhaust brake, air conditioning, steering assistance, central control door lock, electric glass, multifunctional steering wheel, and Jiangling Guoliu 85KW (115 horsepower) engine.

The Jiangling curved arm 17.5 Meter Aerial Work truck has two sets of operating systems,Dual operation of turntable and suspended basket, equipped with bidirectional balance valve and oil cylinder locking function, three folding arms, four hydraulic support legs fully extended and adjustable separately, with hydraulic locks on the support legs and flashing warning lights on the rear support legs. The turntable rotates 360 ° hydraulically, and the electric control switch can automatically return to its original position. The operating height is 17.5 Meter Aerial Work truck: Hydraulic 360 degree full rotation, three section folding arm, single hydraulic lifting cylinder, equipped with bidirectional balance valve, electrically controlled lifting arm, four hydraulic cylinders with adjustable legs and bidirectional hydraulic lock (leg operation is manual and can be controlled separately), two sets of operation platforms, This 17.5 Meter Aerial Work truck with a 1-ton hook, and a maximum lifting weight of 1 ton.

The basic configuration of the 17.5-meter aerial work platform with folding arms produced by our factory is as follows:

1. The equipment has a compact structure, is sturdy and durable, and is easy to operate and reliable. Unique hydraulic control system with a fully rotating three section arm Unified design enables workers to operate more smoothly and safely, enabling them to be transported to their work positions for better safety Maintenance, installation, cleaning, photography, shipbuilding, chemical engineering, power emergency repair, pruning, replacement of streetlights, and other engineering high Empty homework repair!

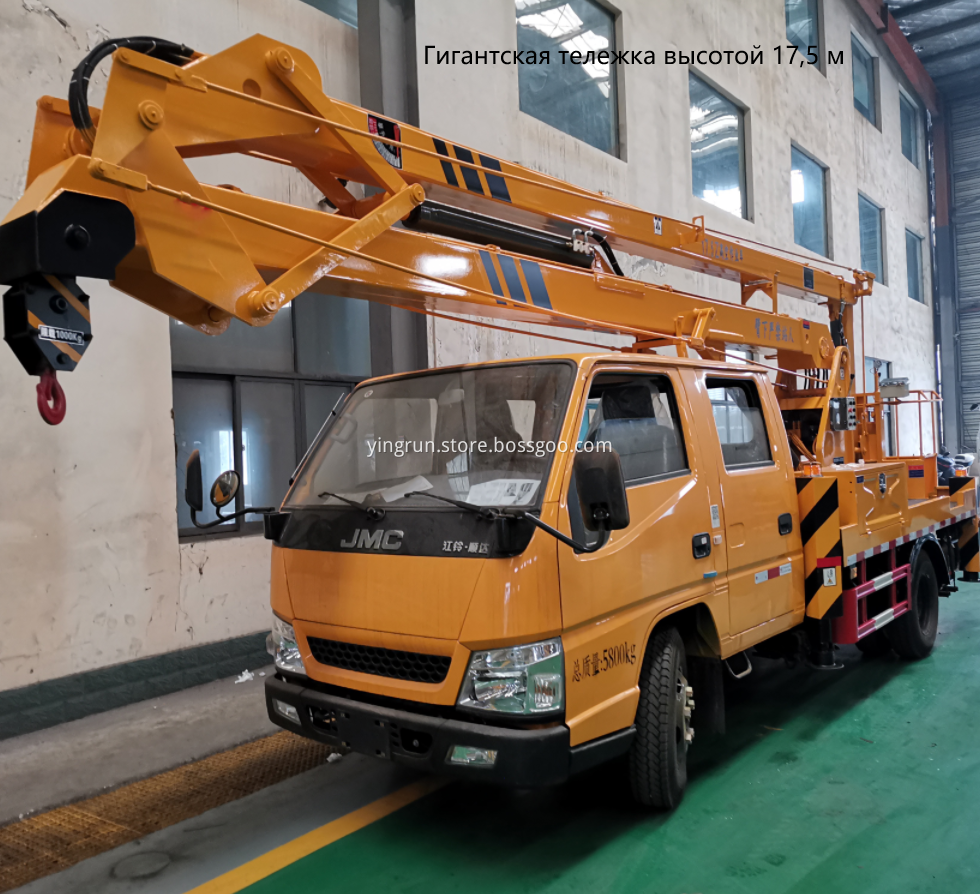

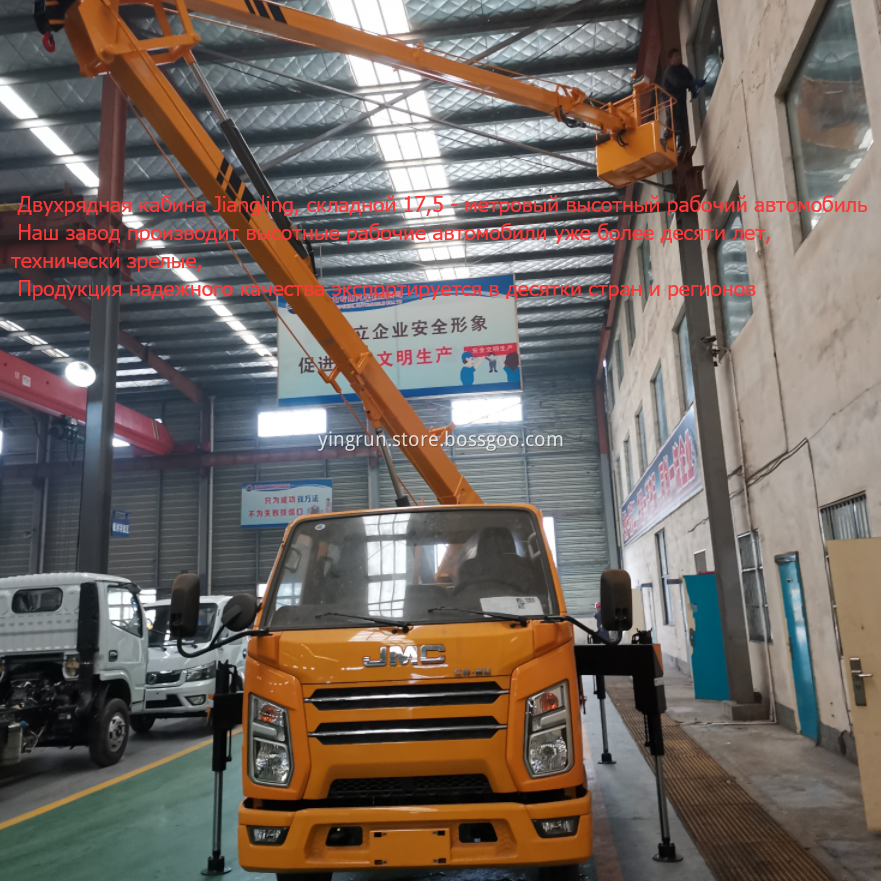

As shown in the above figure, this Jiangling double row cab 17.5 Meter Aerial Work truck has two different cabins, with different front faces and slightly different configurations. Customizable according to needs.
