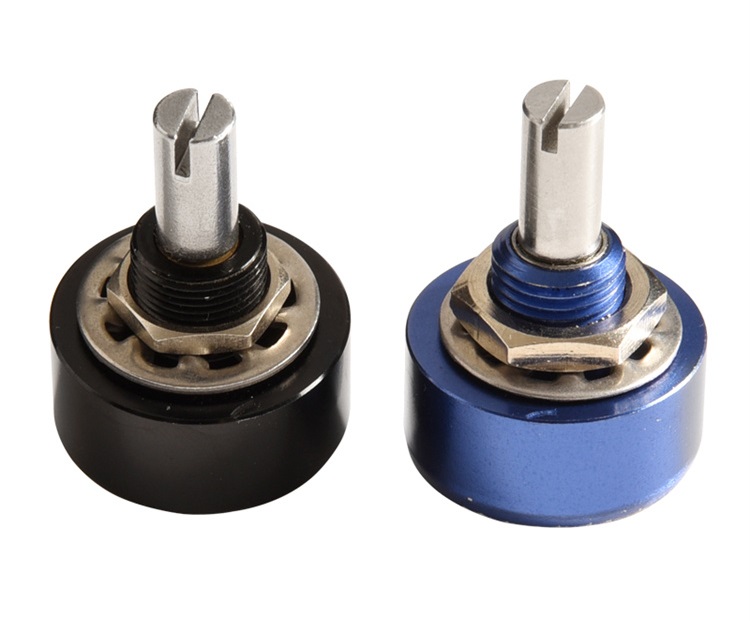

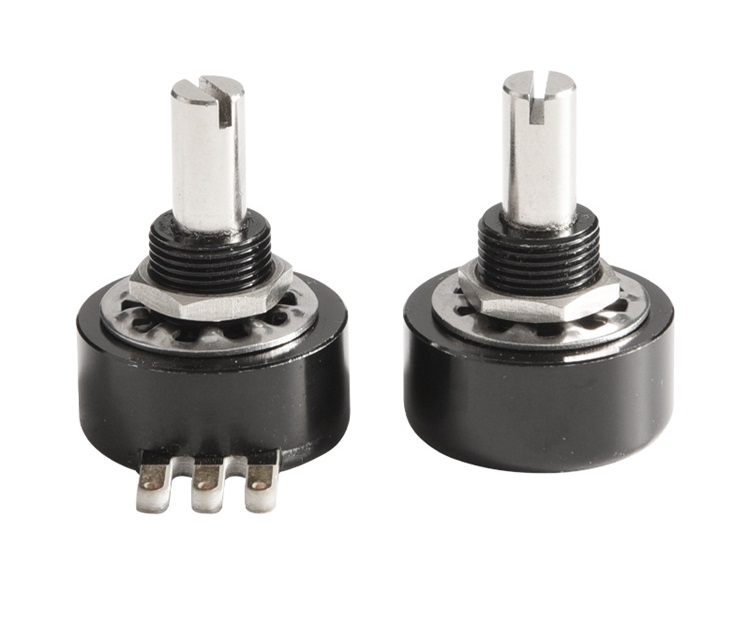

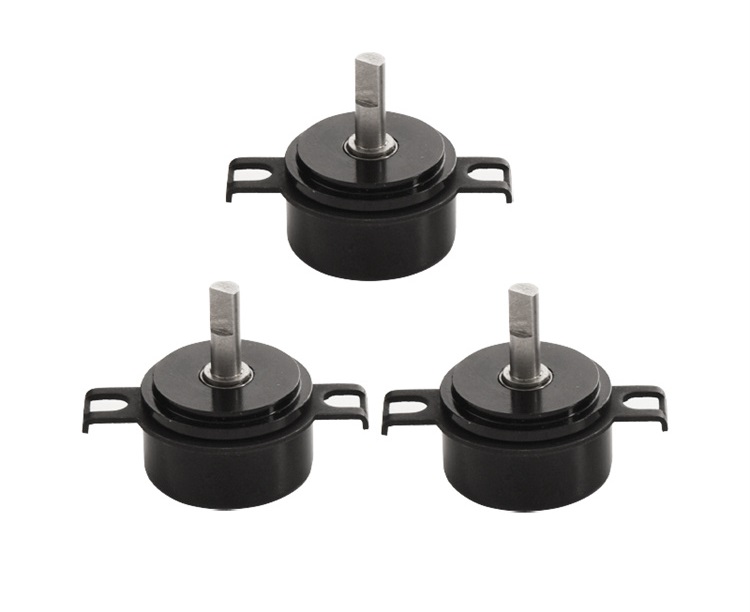

IP50 Angular Conductive Plastic Sensor
The JRTWDJ22 angular sensor is manufactured and tested according to IP50 protection standards. With industrial grade, the conductive plastic sensor has the characteristics of electromagnetic interference shielding, high-precision, high reliability, high mechanical strength, high temperature performance. For the installation methods, flange or thread installation is optional.

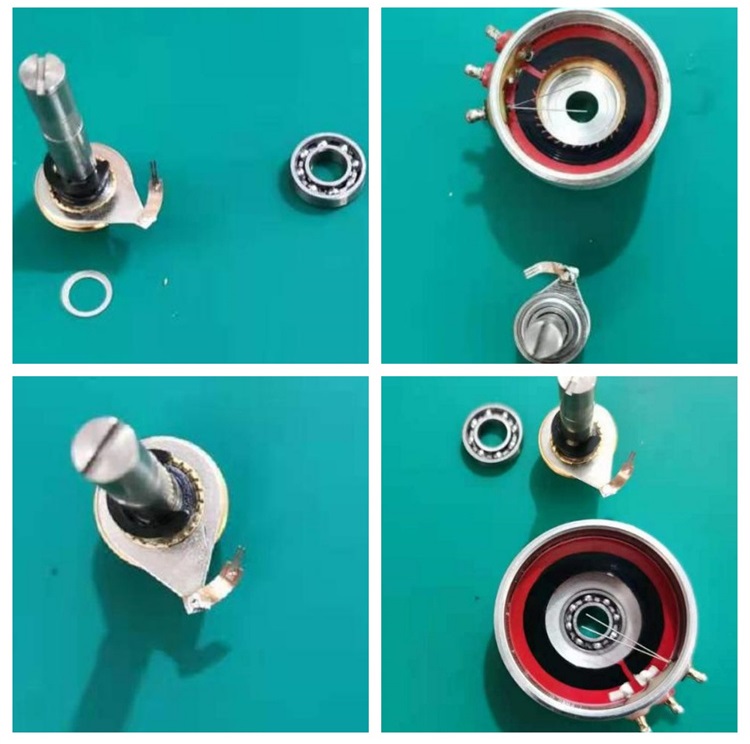

Plastic Angular Sensor Structure
TECHNIQUE PARAMETER
Standard resistance values：1K.2K,5K.10KQ+10%(Can be customized)
Theoretical electrical angle：18°+3°，345°+3°,(Can be customized)
Mechanical angle：360°Continuous rotation, With limit
Comprehensive accuracy：+0.05% FS,+0.1% FS,+0.25%FS
Repeatability: 0.002mm
Output smoothness: ≤0.05
Operating voltage: 5-36VDC
Power rating: 0.5W/170C, 0W/125℃
Dielectric strength: 500V.AC 1min
Temperature coefficient of Temperature: ≤+400PPM/'C
Operating temperature range: -45℃ -- +125℃
Vibration proof: 20g.10-2000HZ AR≤+2%
Strike proof: 50g.11ms AR≤+2%
Starting torque: ≤0.98mN.m
Insulation resistance: ≥100MQ(50VDC)
Resolution: 0.001MM (infnitesimal)
Material: Aluminium alloy
IP Protection: IP40
Life: ≥500 Ten thousand times(circle)

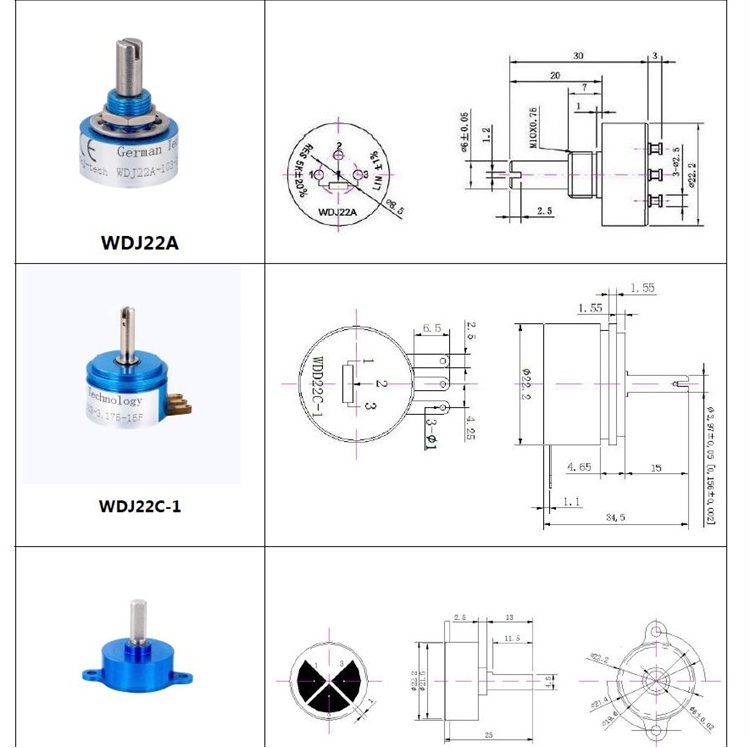

Dimensions
