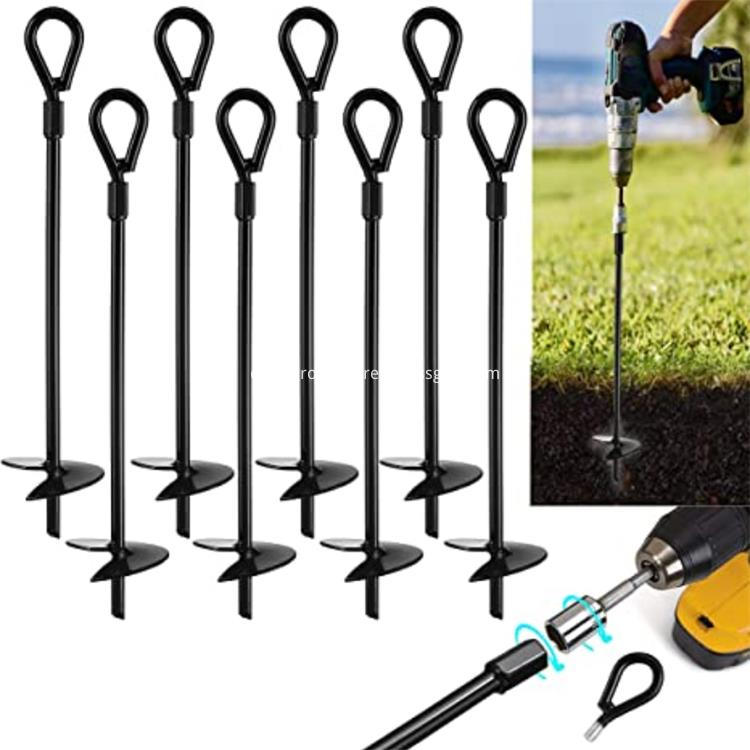

Ground Anchor is one special type of Ground Screw,The Earth Anchor always have one spiral Blade on the top of Pile Anchor and the weight is more light than small Ground Screw Pile,but it is easy to carry it to our tool-bag.The craft of surface treatment of these Anchors has hot dip galvanized,power coated,painted and electric galvanized,that's choose by your needs.As one special Anchor of Ground Anchor,it is often used in fixing the tent or tension the line so that something becoming stable and tight.
Material of power coated Earth Anchor:S 235 Carbon steel .
Treatment:powder coated or high dip galvanized .
Metal spiral ground anchor size: Ground Earth Anchor with one or two or more ground anchor disk(also known as blade).
Pole Diameter
Whole Length
Disk Diameter
Disk Thickness
Finish
Weight(KGS)
Packing
3/4"(18 mm)
36"(914 mm)
8"(200 mm)
3 mm
Black painted
2.75
250 pcs/pallet
3/4"(18 mm)
48"(1219 mm)
8"(200 mm)
3 mm
Black painted
3.35
Pallet
14 mm
15"(381 mm)
75 mm
4 mm
Red
0.75
Pallet
14 mm
30"(762 mm)
75 mm
4 mm
Red
1.15
Pallet
16 mm
15"(381 mm)
100 mm
2 mm
Red
0.53
Pallet
12 mm
800 mm
140 mm
4 mm
Galvanized
1.04
Pallet
14 mm
1000 mm
180 mm
4 mm
Galvanized
1.75
Pallet
Applications include: bridges, cable cars and cable railways, as well as maintaining excavations against ground instability.
The anchors provide an effective alternative to large gravity or establish structures.
