Common anode technology refers to the anode of all the led together to form a common anode (COM).Common anode technology in the case of the current remains unchanged, the higher the voltage, the higher the power, power consumption relative than the greater, at the same time, the red chip because of the need for the voltage than the blue, green chip lower, so need to increase the resistance voltage divider, LED display in the work will also bring more heat (relative to Common Cathode micro COB LED Display).

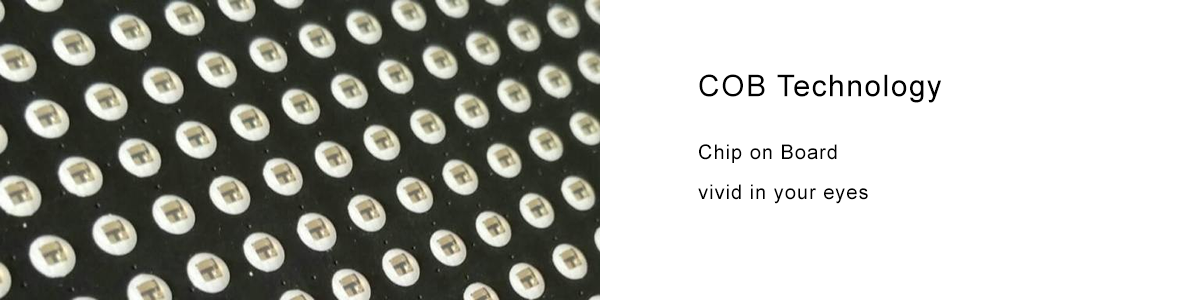

Common anode COB display is a type of Micro COB LED Display, COB package is the luminous body directly encapsulated in the PCB board, the device is completely closed, no exposure; compared with the LED display (usually refers to SMD package, such as Indoor LED Display and Outdoor LED Display), the product is more closed, the production process is less, the product reliability is better.
Product Advantages
1, can easily achieve the pixel pitch below 1.0mm, the display is clearer, the color is softer and more delicate, so that Small Pitch COB LED signage has a better viewing effect;
2, stronger protection: device without exposed, the product in the transportation, installation, disassembly process will not be jitter or excessive force and drop the light, impact resistance, load-bearing capacity is SMD package LED small pitch 5 times;
3, the cabinet is ultra-thin, lighter weight, installation, dismantling, transportation is more convenient;
4, the outdoor environment to withstand stronger: waterproof, anti-fog, moisture-proof, anti-freeze, thunderstorms, electric shock, oxidation corrosion, heat and dry does not affect the normal display;
5, better heat dissipation ability, heat is directly emitted through the PCB board, thermal resistance value is small, heat does not accumulate, product life is more secure;
6, a better sense of light, surface light source light, effectively inhibit moiré, close viewing does not hurt the eyes.
Product Photos
Product Applications
Stadium and arena scoreboards,Financial tickers,Video walls,Retail displays,Advertising displays,Public transportation information,Airport and train station displays,Digital signage,Bus and taxi displays,Elevator displays

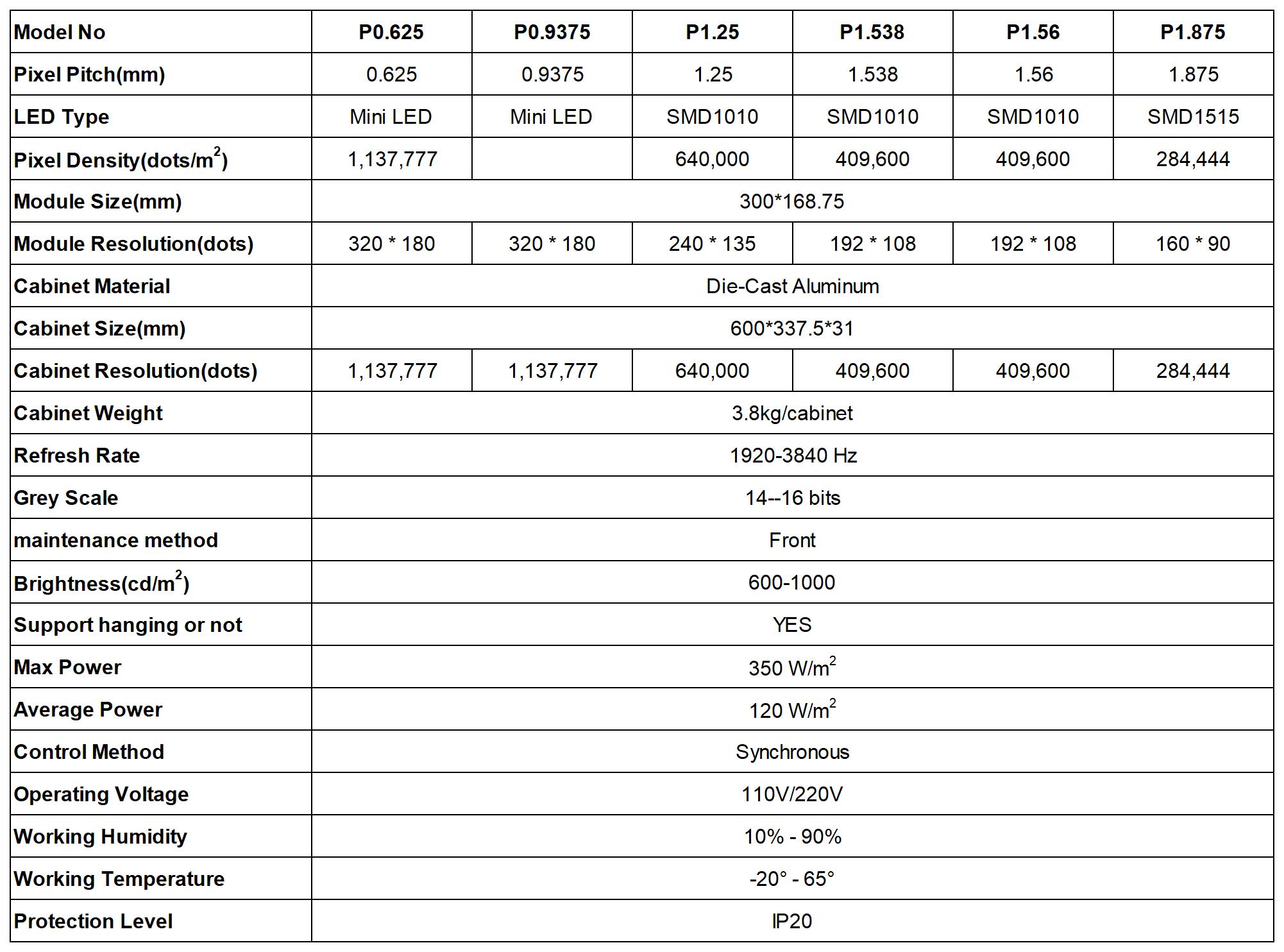

Product Specifications
If you are interested in the product, contact 2bvideo.com for more information for more information
