High Precision Round Vibratory Separation Equipment for corn starch
Round Vibratory Separation Equipment Introduction
Round Vibratory Separation also called Tumbler Screen, vibratory separator,round vibratory screeners, it is an improvised technique to the other screening techniques in which product on the screen to moved from the center by radial inclination while the tangential inclination leads to circular motion of the product. It is suitable for materials that are spherical, cylindrical, flake, or ever irregularly shaped and easy to block and require precision screening.

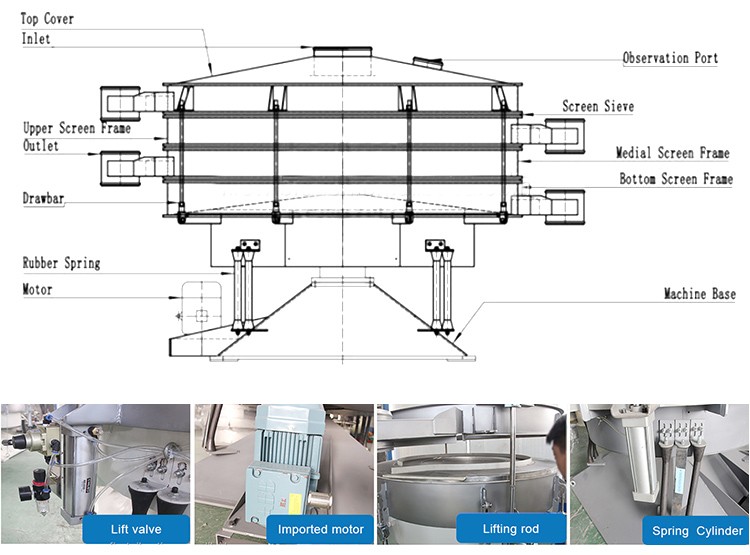

Structure of Round Vibratory Separation
Round Vibratory Separation Machine Advantage
1. Rotary vibrating screen with high precision and high efficiency screening ablity and applied to all kinds of food/ chemical powder, granules.
2. 304 and 316 stainless steel material, make sure the quality of raw material.
3. New type of frame structure, long service life, only 3-5 minutes to replace the screen.
4. Fully automated, continuous 7/24 operation.
5. Fully closed structure, the powder don't float in the sky, the liquid don't leak, no mesh jams.
Round Vibratory Separation machine Technical specification
| Model | Effective Diameter for sieving surface (mm） | Effective Sieving Area(m2) | Surface Angle(°） | Layer | Power(kw) |
| HT-600 | φ560 | 0.23 | 0-10 | 1-5 | 0.75 |
| HT-1000 | φ930 | 0.64 | 0-10 | 1-5 | 1.1 |
| HT-1200 | φ1130 | 0.9 | 0-10 | 1-5 | 2.2 |
| HT-1600 | φ1530 | 1.7 | 0-10 | 1-5 | 4 |
| HT-2000 | φ1920 | 2.13 | 0-10 | 1-5 | 5.5 |
| HT-2400 | φ2300 | 4.15 | 0-10 | 1-5 | 5.5 |
| HT-2600 | φ2530 | 4.9 | 0-10 | 1-5 | 5.5 |
| HT-3200 | φ2930 | 6.74 | 0-10 | 1-5 | 11 |
