Outstretched arm:2.25m, need court length at least 34.50m
1、technical data
Outstretched arm 2.25m, high 3.05m from upon of the ring to the ground，the size of the base：
L*W*FH*BH=2×1×0.54×0.4（m），It meet FIBA standard.
2、material used
FIBA approved Basketball stand base was bent and welded by high quality 3.0mm sheet .
the support of the front were welded by 150*150mm high quality large round corners square pipe
and The rear pull adopts 40x40mm high quality square tube bending welding forming.
the outstretched was welded by 150*150mm, The joint of the column and the beam is connected to
the 304 stainless steel shaft by a specific cast steel piece ,The weld surface is uniform smooth.
and the performance is safe and reliable, The pull rod on the basketball backstop is formed once
with high quality φ32x3.0 mm round pipe on the pipe bender, which avoids the hidden danger of
rust caused by welding and welding slag. The reasonable structure design is in harmony with the
unique appearance and shape.

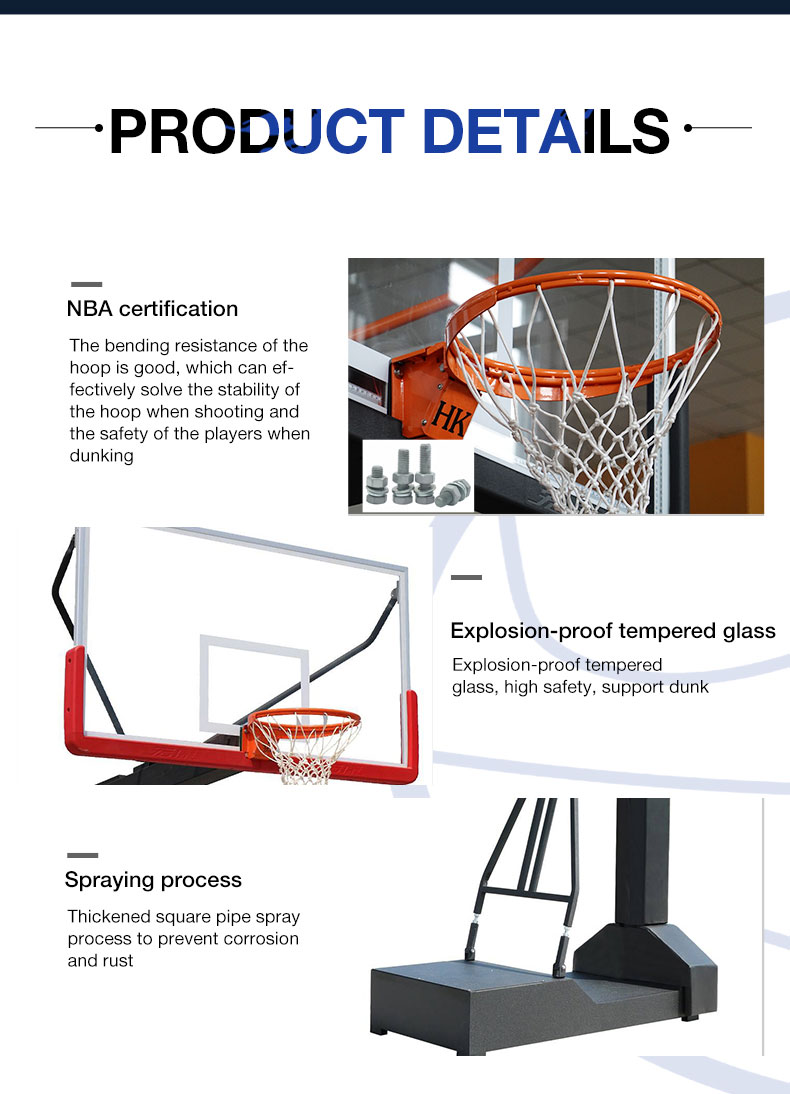

3、Basketball stand backboard
The backboard are three rebounds with a high strength and safety glass backboard 1800 x 1050x12.0 mm
with high transparency, good weather resistance, aging resistance, corrosion resistance, and not easy
to be blurred, and cover a padding along the side of the backboard. The height and thickness of the
front and rear surface of the U-padding are ≥ 20mm, and the bottom’s thickness is ≥ 50mm, which is
fit for FIBA rules. It can effectively protect players from injury when dunk.
The backboard flexible 500N/min, the center deflection is ≤ 6mm, and the padding restore after the
cancellation of the external force 1min
4、Basketball hoop stand ring
The ring is made by φ18 solid circular steel, and the ring performance is good.
If you are interested in the product, contact 2bvideo.com for more information for more information
