These types of excavators are favored for their small size and maneuverability, making them suitable for job sites and environments with space constraints.
|

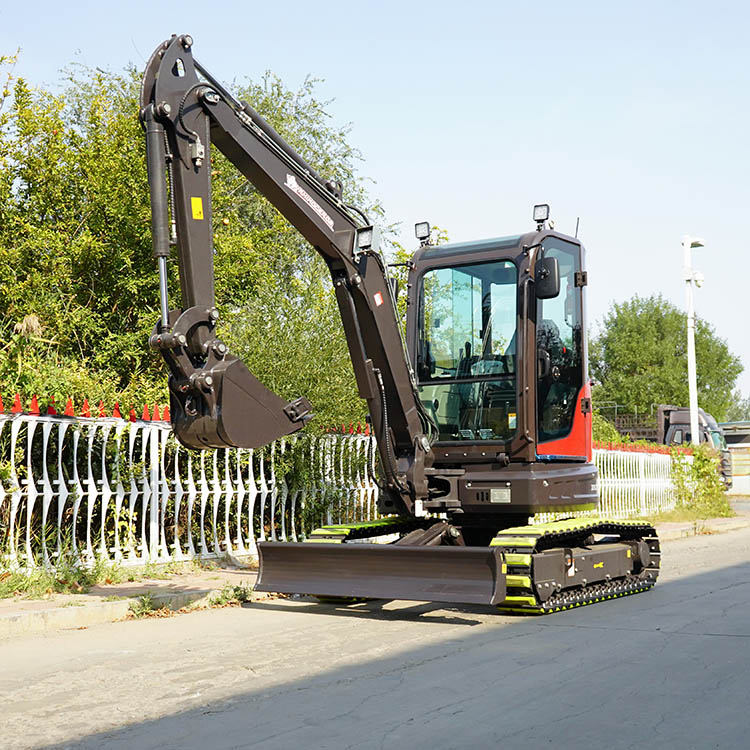

4 ton excavator XN35Pro digger |
||
|

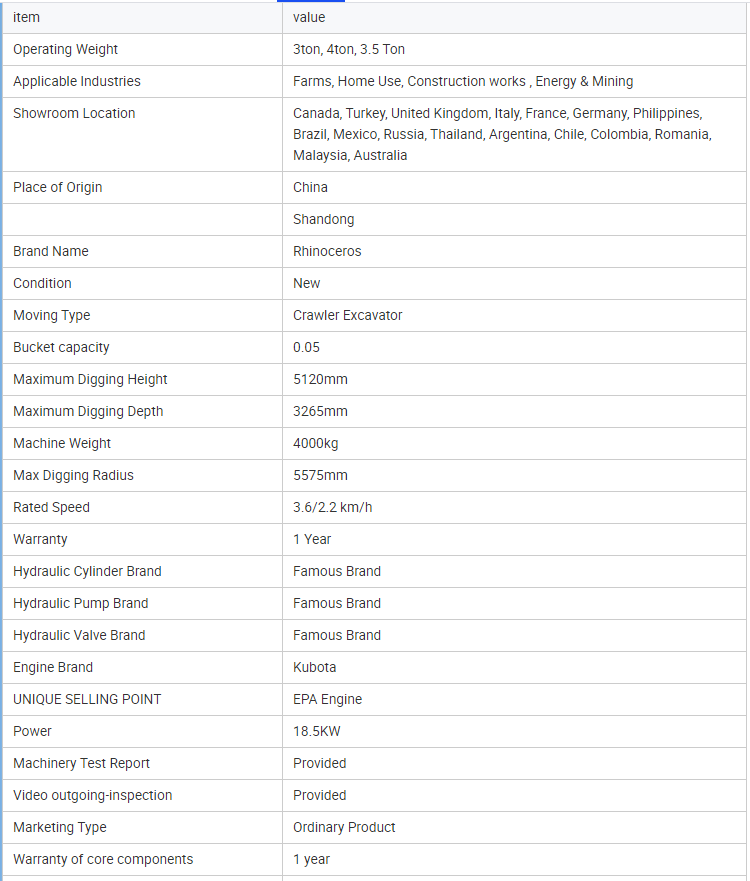

SPECIFICATION |
Unit |
|
|
Operating Weight |
4000 kg |
|
|
Bucket capacity |
0.11m³ |
|
|
Working device form |
backhoe |
|
|
Engine |
Model |
Kubota engine D1703-M |
|
Displacement |
1.647L |
|
|
Rated power |
18.5kw/2200/r/min |
|
|
Maximum torque |
97.4/1500N.m/r/min |
|
|
Speed/ Digging force |
Max.travel speed(high/low) |
3.6/ 2.2km/h |
|
Swing speed |
10.5 rpm |
|
|
Max. Gradeability |
30% |
|
|
Bucket digging force |
27.6KN |
|
|
Arm digging force |
20.4KN |
|
|
Max. tractive force |
31.6KN |
|
|
Boom swing-left |
71° |
|
|
Boom swing-right |
52° |
|
|
Ground specific pressure |
31.6KPA |
|
|
Hydraulic and liquid capacity |
Pump type |
Plung pump |
|
Working pressure |
22 Mpa |
|
|
Flow rate |
45L/min |
|
|
Hydraulic oil tank capacity |
50L |
|
|
Fuel tank capacity |
60L |
|
|
Engine oil tank |
7 L |
|
|
Working device |
Main dimension |
Unit (mm) |
|
a |
Wheelbase |
1800 |
|
b |
Total length of track |
2225 |
|
c |
Platform ground clearance |
580 |
|
d |
Counterweight turning radius |
915 |
|
e |
Chassis width |
1740 |
|
f |
Track width |
300 |
|
g |
Track height |
520 |
|
h |
Length |
5045 |
|
j |
Total height |
2555 |
|
k |
boom swing - left |
705 |
|
I |
boom swing - right |
720 |
|
|
Range of working |
Unit(mm) |
|
A |
Max. Digging radius on ground |
5460 mm |
|
B |
Max. Digging radius |
5575 mm |
|
C |
Max. Digging depth |
3265 mm |
|
D |
Max. Digging height |
5120 mm |
|
E |
Max. Dumping height |
3670 mm |
|
F |
Max. Vertical digging depth |
2630 mm |
|
G |
Min. Rotation radius |
2345 mm |
|
H |
Maximum Lift Of Dozer |
395 mm |
|
I |
Maximum depth Of Dozer blade |
445mm |
HS CODE: 84295212
PACKING: 10 units/ 40HQ container
Delivery time: 1 month
Terms of payment: 30% T/T in advance,balance paid before shipment
Warranty time: for 1 year.
