Product details

XU types of Centrifugal slurry pumps includes unique casing, impeller and sealing designe to ensure lowest possible wear rates in sand and gravel,coal,and many other medium to coarse slurry application.

XU is the result of the latest fluid dynamics techniques, advanced computer wear modeling, years of field and lab testing, and decades of design experience.

Model of XU pump Weight/LBS Wet end parts material

3/3C-XU	335	high chrome(A05/A07/A49/A51)
4/4C-XU	535	high chrome(A05/A07/A49/A51)
4/4D-XU	690	high chrome(A05/A07/A49/A51)
6/5D-XU	1070	high chrome(A05/A07/A49/A51)
6/5E-XU	1380	high chrome(A05/A07/A49/A51)
8/6E-XU	2260	high chrome(A05/A07/A49/A51)
8/6F-XU	2900	high chrome(A05/A07/A49/A51)
10/8E-XU	3300	high chrome(A05/A07/A49/A51)
10/8F-XU	3985	high chrome(A05/A07/A49/A51)
12/10E-XU	4385	high chrome(A05/A07/A49/A51)

XU centrifugal slurry pump select

6/5EE-XU centrifugal slurry pump,6/5D-XU slurry pump,6/5E-XU slurry pump for mining, XU pump assembly in Shijiazhuang Naipu Pump

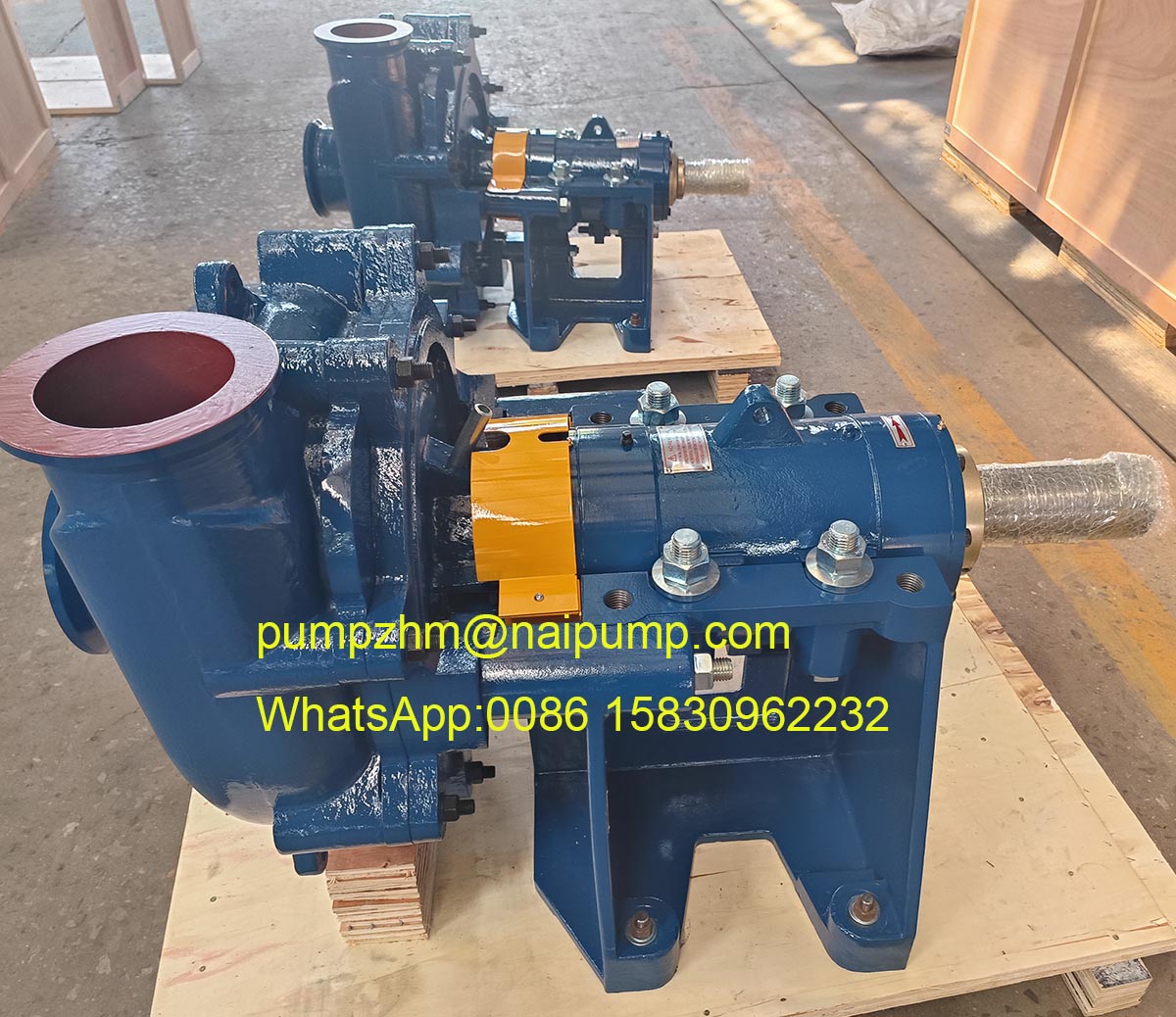

XU type slurry pumps with high chrome impellers
Seal type of XU slurry pump

Shaft sleeve

An easily removable shaft sleeve manufactured in

either hardened steel or ceramic coated steel with

o-ring seals at both ends protects the shaft from

abrasive or corrosive contaminants.

Centrifugal seal

External gland sealing is available in most applica

tions. Deep and efficient impeller pump out vanes

combine with high ratios (85%) expeller diameter

produce exceptional dry sealing performance
