Product details

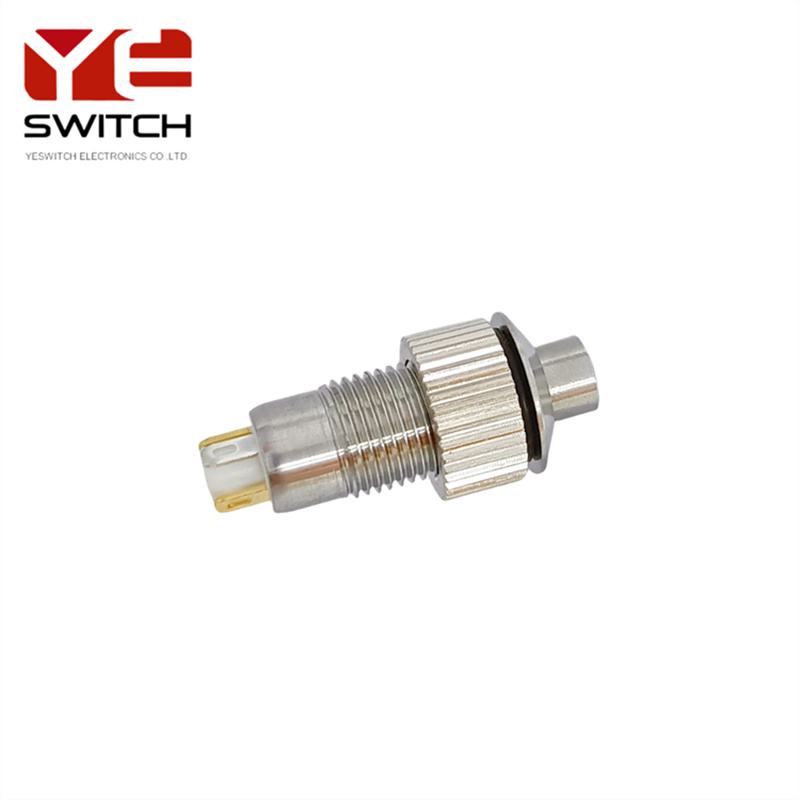

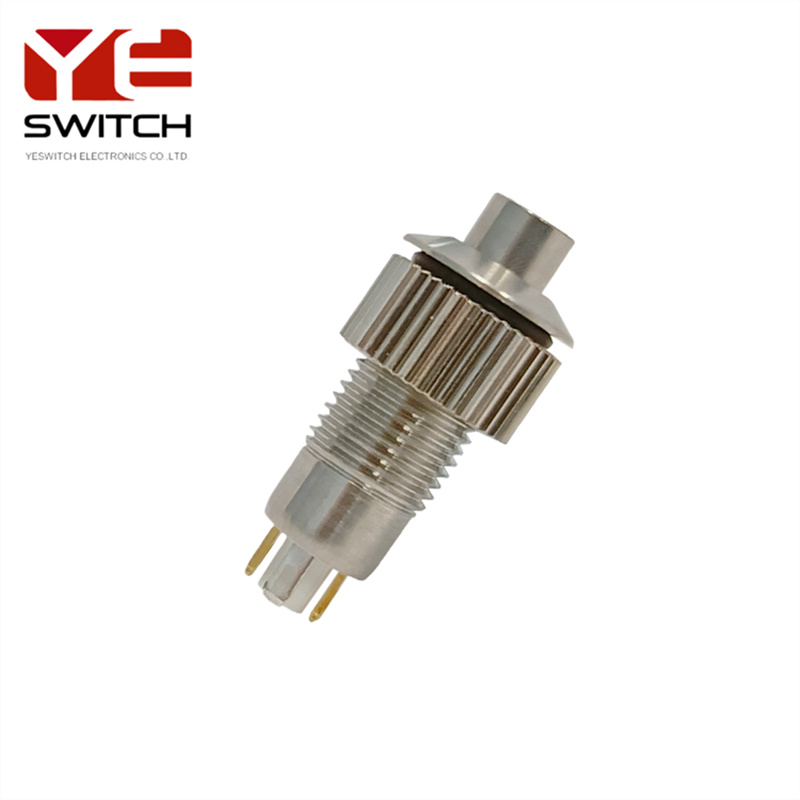

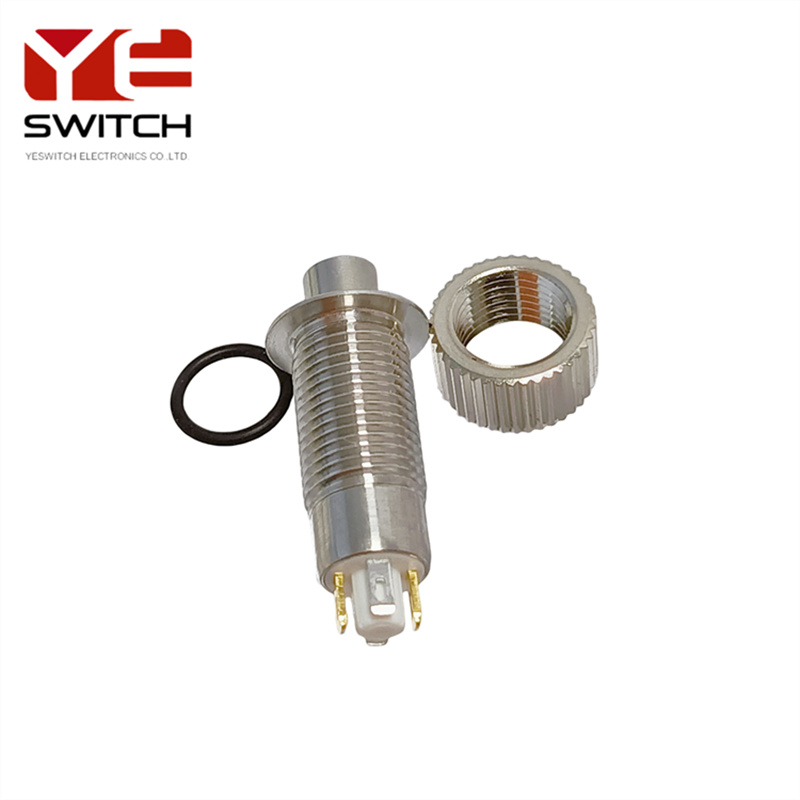

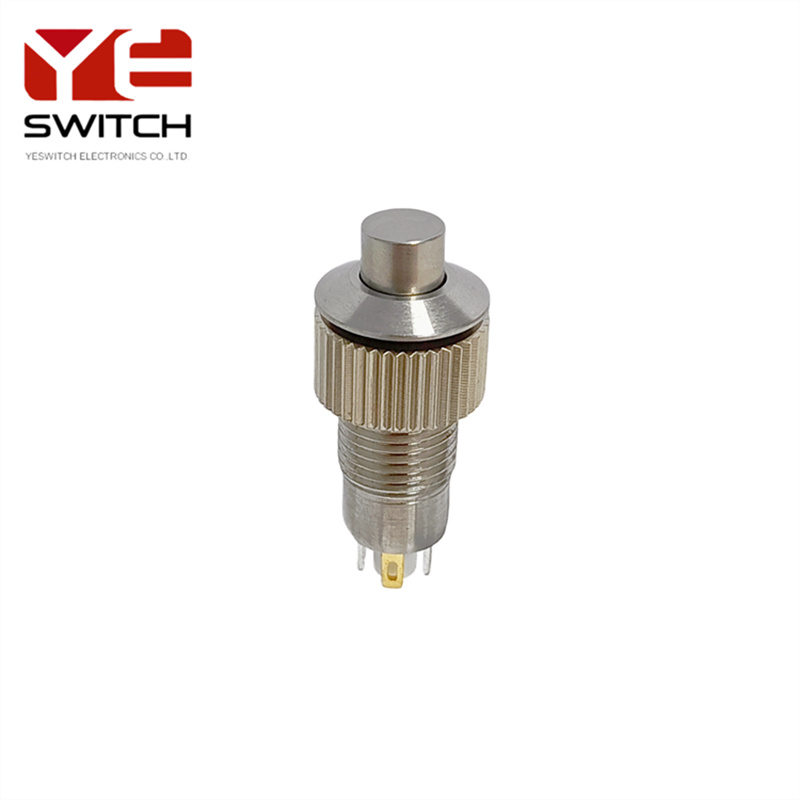

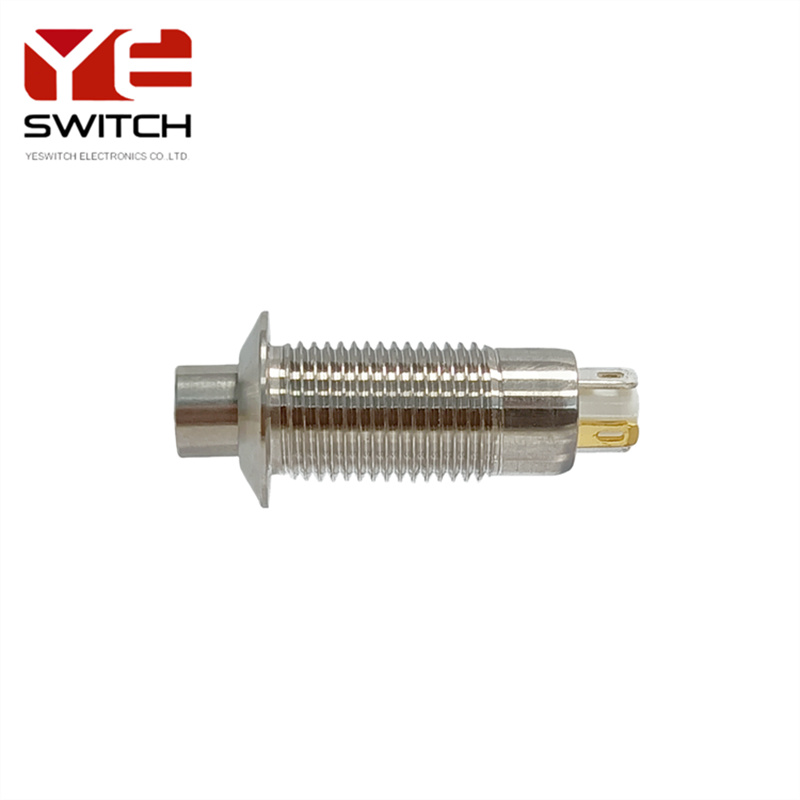

8mm Metal Push Button Switch Momentary Normally Closed

YESWITCH 8mm waterproof metal switch with high head button design, comfortable grip, which is suitable for a variety of scenes.The 8mm dustproof and waterproof resistant IP67 small metal push button switch has momentary function.The waterproof push button switch make your equipment more secure.

The push button switch operating temperature -20~80 degrees Celsius, a wide range of applications to meet your various needs.Whatever,The 8mm automotive push button switches has mechanical life of 1 million cycles, electrical life of 500,000 cycles, long life, the use of rest assured.

The 8mm metal switches with stainless steel, corrosion resistant, IP67 dustproof and waterproof,suitable for outdoor waterproof equipment, medical equipment, alarm equipment,mass transport controls,instrumentation, industrial and so on.

Choose YESWITCH 8mm IP67 momentary normally closed metal push button switch to make your equipment smarter and more powerful. Whether outdoors or indoors, this push-button switch gives you the best experience.

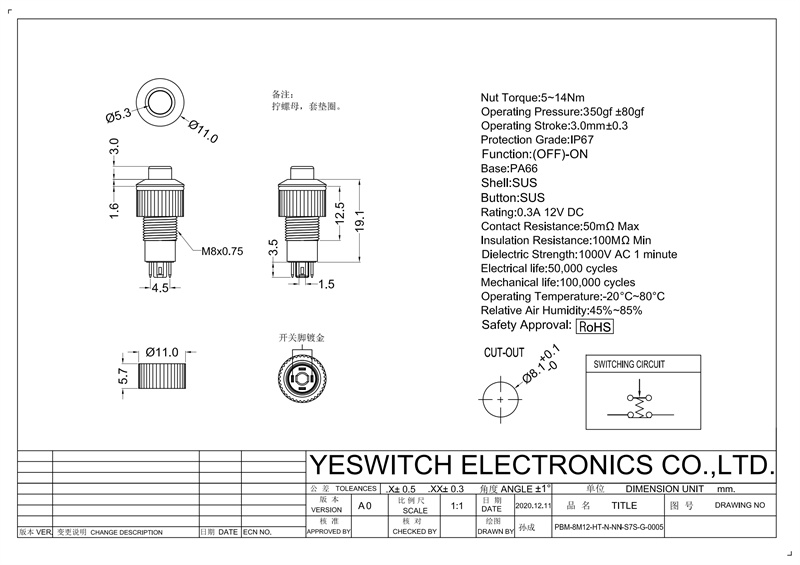

SPECIFICATION

Nut Torque:5~14Nm
Operating Pressure:350gf±80gf
Operating Stroke:3.0mm±0.3
Protection Grade:IP67
Function:(OFF)-ON
Rating:0.3A 12V DC
Contact Resistance:50mΩ Max
Insulation Resistance:100M0 Min
Dielectric Strength:1000V AC 1 minute
Electrical life:50,000 cycles
Mechanical life:100,000 cycles
Operating Temperature:-20~80 degree
Relative Air Humidity:45%~85%
Safety Approval: RoHS

MATERIAL

Base:PA66
Shell:SUS
Button: SUS
