Product details

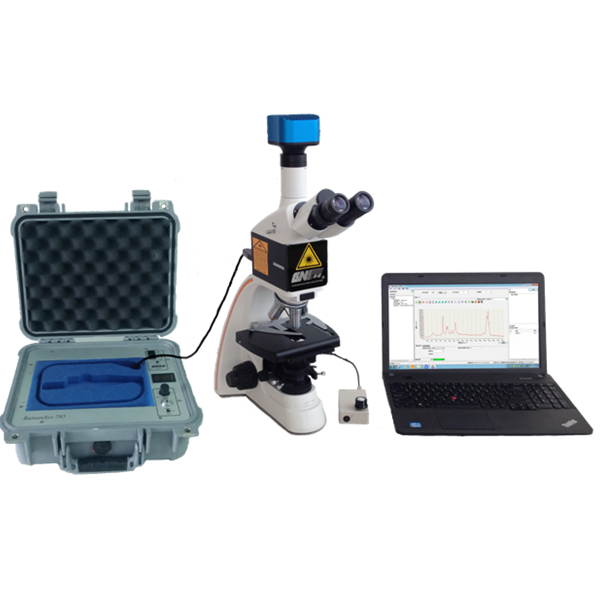

CNI launched micro fluorescence spectrometer which combines micro system and fluorescence detection System which greatly facilitates the Raman micro area detection.Micro fluorescence spectrum measurement system, with precision and intelligent design, the state of micro area in detecting will be displayed on computer synchronously. These testing results also show the applications like element of rare earth analysis, crystal micro-area fluorescence analysis, and so on. X ray fluorescence spectrometer is special in high sensitivity, selectivity, micro samples, simple operation, etc.

The fluorescence spectrometer have the characteristics of rapid analysis and accurate measurement, is usually used to measure fluorescence spectroscopy in biology crystal, rare earth elements and other fluorescence spectrum detection.

Features

Adjustable laser with stable frequency, avoiding wavelength drift and damage of samples.
Optimization of the confocal module, ensuring that focal plane of the laser and view focal plane of the objective confocal.
Optimization of the confocal module, ensuring that focal plane of the laser and view focal plane of the objective confocal.
Modular design, self-assembly, simple operation and easy to carry.
Wavelength range and resolution can be customized.

Applications

Crystal micro-area fluorescence spectrum detection
Rare earth elements micro-area fluorescence spectrum detection
Quantum dot labeling micro-area fluorescence spectrum detection
Micro-nano photonic devices micro-area PL fluorescence spectrum detection

Basic Components

FPB-405/ 532 Fluorescence probe
405/ 532 fiber coupled laser
Fiber spectrometer: Aurora4000
PC data processing unit
Man-machine Interface

Specifications

Laser

Wavelength (nm)	405±5 (other wavelengths can be customized)	532±1 (other wavelengths can be customized)
Mode	Near TEM₀₀	TEM₀₀
Power stability (pk-pk, 4 hours)	<1%,3%,5%	<1%,3%,5%
Operating mode	CW	CW
Warm-up time (minutes)	<5	<10
Operating temperature (℃)	10-35	10-35
Expected lifetime (hours)	10000	10000
Warranty	1 year	1 year

Spectrometer

Wavelength range	405-850 nm (spectrometer wavelength range and resolution can be customized)	532-1100 nm (spectrometer wavelength range and resolution can be customized)
Optical resolution (nm)	<0.5 nm FWHM
Pixels（pixels）	3648
Pixels size	8 μmx 200 μm
Dimensions (mm)	149x 105x 46
Weight (g)	840
Signal-to-noise ratio	300:1
Integration time	4ms-10s
Power consumption	450 mA@ 5V DC
Data transfer speed	Full scans into memory every 4 milliseconds with USB 2.0 Full scans into memory every 18 milliseconds with USB 1.1
Inputs/outputs	5 inputs and 5 outputs (opto-isolator inputs/outputs)
Analog channels	One 12 analog input one 12 analog output
Connector	30pin

Fluorescence Probe

Excitation wavelength (nm)	405 (Spectrum linewidth ~1 nm)	532 (Spectrum linewidth ~1 nm)
Probe focus length (mm)	7.5
Main material of probe	Black anodised aluminium, 1113814.8mm head 38mm long
Fiber configuration	Two single fiber (100 um excitation fiber, 200 um receiving optical fiber) N.A.=0.22, SMA905 connector, PVC/metal sheath; 1 m length
Filter effect	Can be completely filtered out of the stray light received, and eliminate the quartz fiber generated background scattering (O.D.> 5 @ laser wavelength)
Working temperature (℃)	0-40
Connection port	SMA 905 connector

Software

Optical spectrum analysis	Spectrum Analysis Software
Operating system	Windows XP/ Win7 (32 bits or 64 bits)

Certification

near infrared spectrometer

Copmpany Information

Changchun New Industries (CNI), founded in 1996, located in Changchun, CHINA, is a manufacturer of solid-state and diode laser systems. CNI possesses accountable and dependable service as well as quality products with compact design, high reliability, good performance. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, entertainment, radar communication, material processing, process control, online detection, investigation equipment and other fields.
