How to connect Arduino with 50m USB Distance Measurement Sensors

4 year ago
165 0
Product details

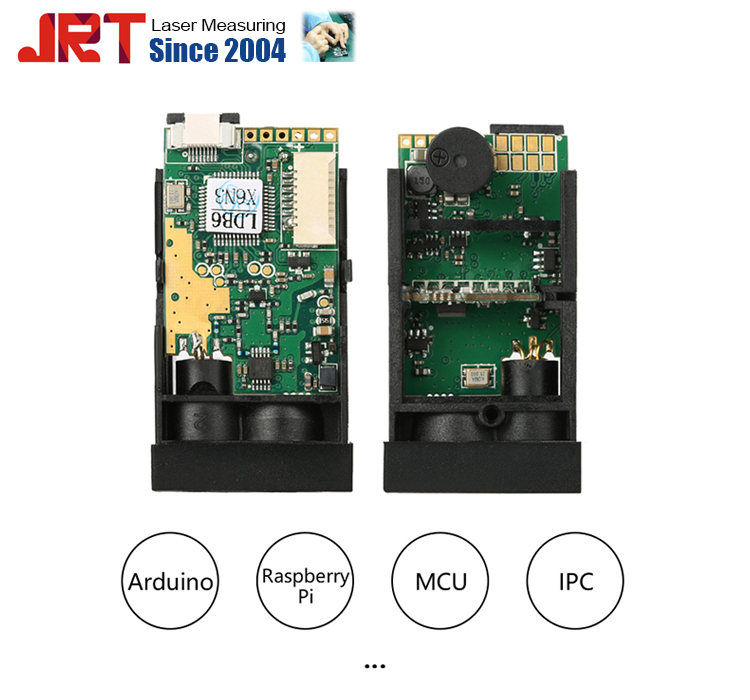

40m Arduino Distance Measurement Sensors USB
40m laser distance sensor measured the short range from 3cm to 40m, with 2v~3.3v voltage application. The distance measurement sensors can be connected to your Arduino with usb interface. Also, the measurement sensors can be used for measuring distance and transmiting data through Rs232 Laser Distance Sensors, if you need, welcome to contact us for more.

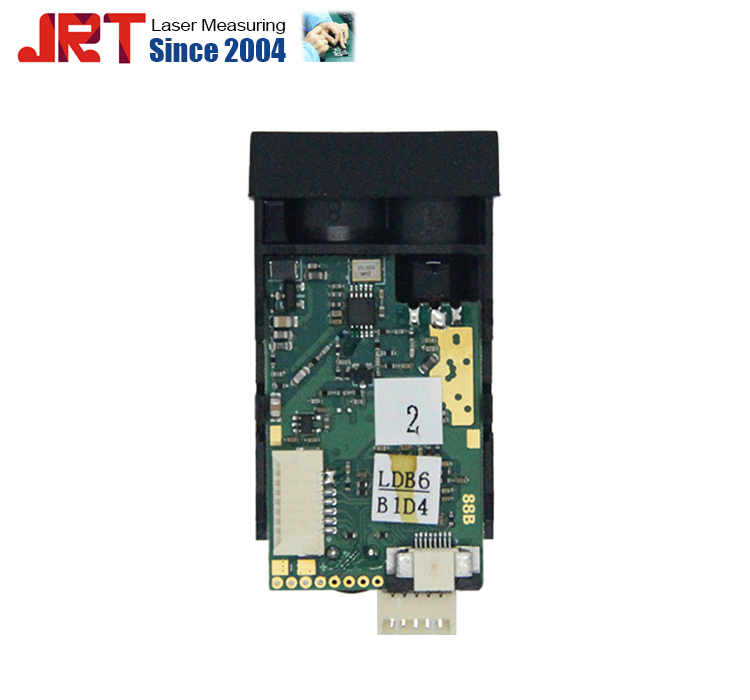

USB Distance Sensors 40m


Why Us

Chengdu JRT Meter is the factory of laser measure modules sensors since 2004. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

Technical Datasheet

Technical Specifications:
Range: 0.03-40 meter
Invisible measuring: 620nm-690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth

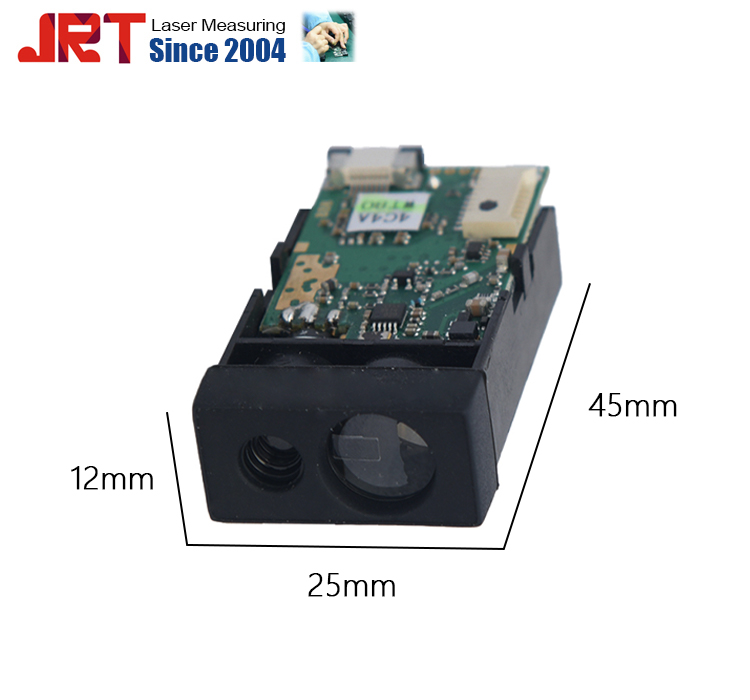

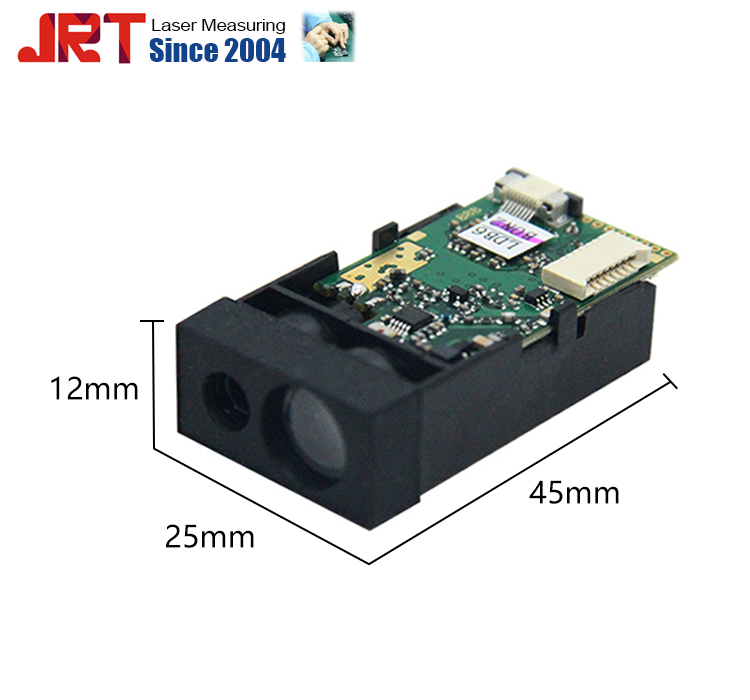

Size: 45*25*12mm
Voltage: DC2.0~3.3V
Electrical Level: TTL/CMOS
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree

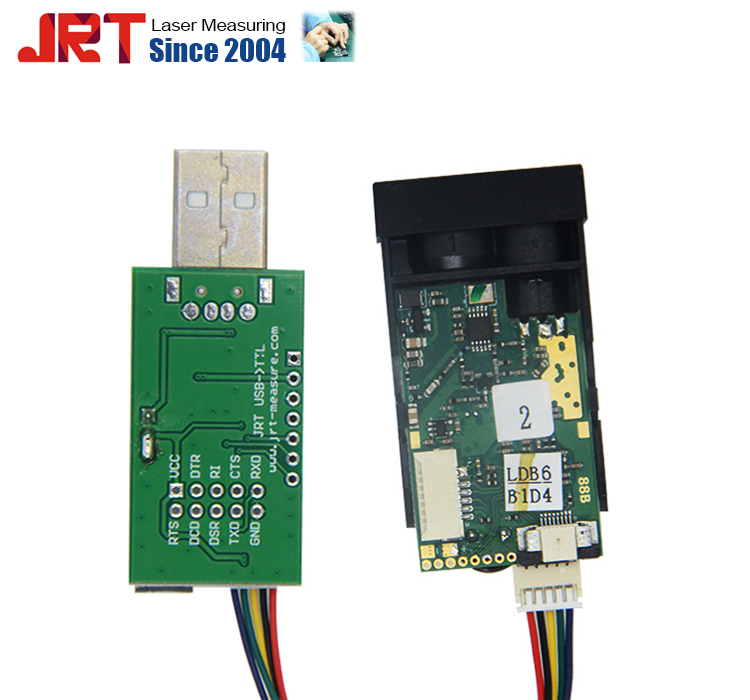

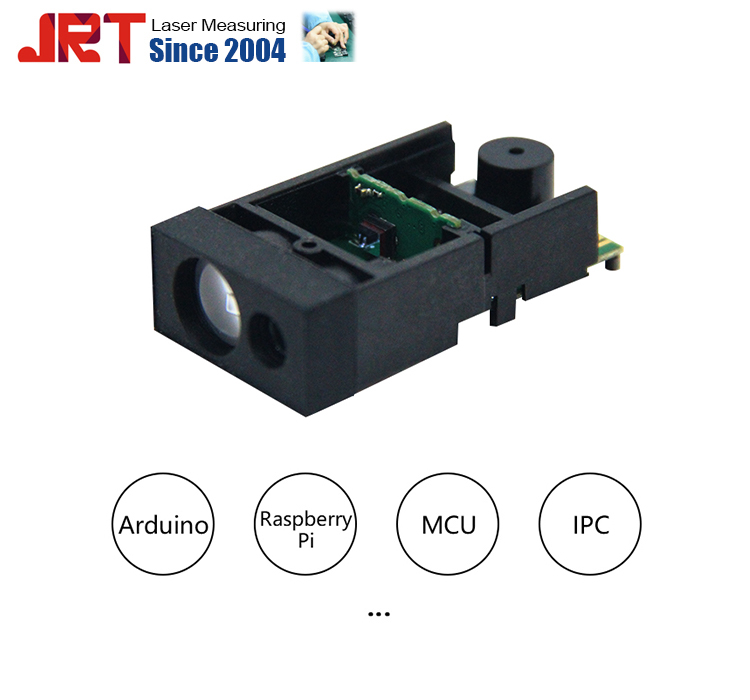

How to connect Distance Measurement Sensors to your Arduino?

40m Distance Measurement Sensors Arduino

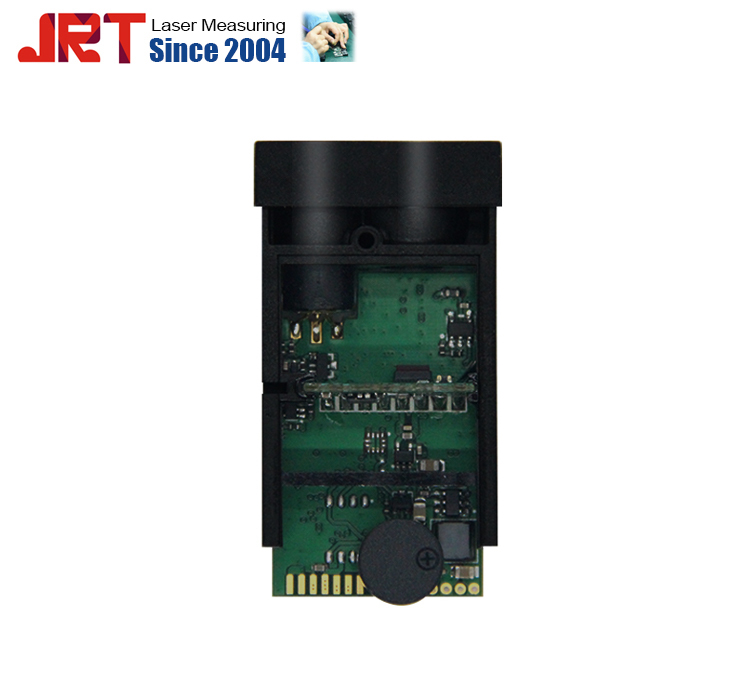

More Detailed Pictures

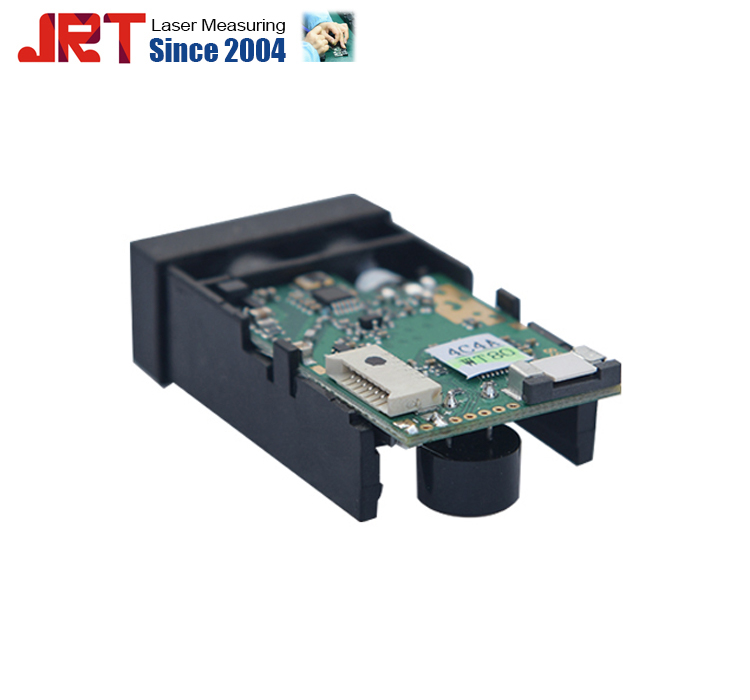

Distance Sensors 40m

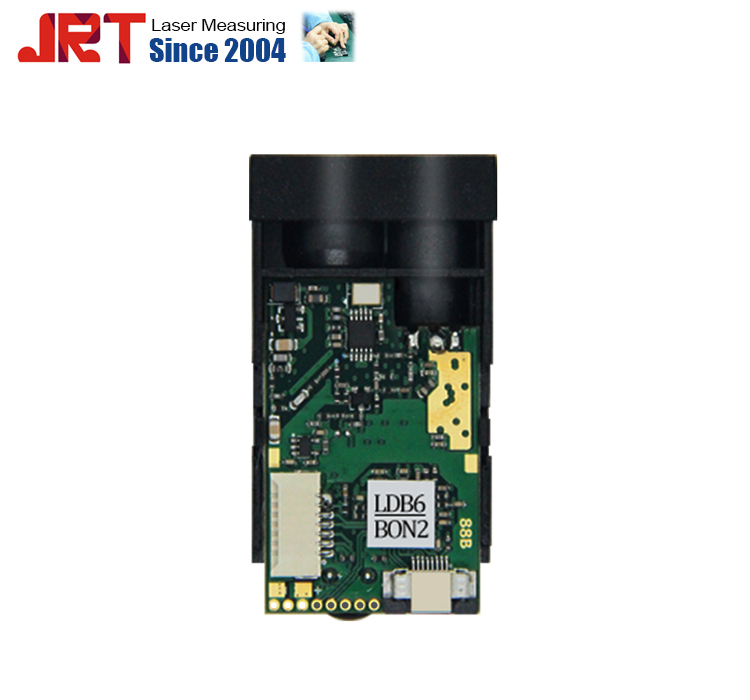

Measurement Sensors 40m



Chengdu JRT Main Ranging Modules: Industrial Laser Distance SensorsLaser Rangefinder Sensor Tof LiDAR Sensors.
