Smart PDLC ITO PET FILM

3 year ago
68 0
Product details

ITO PET FILM

With excellent high transmittance 81%, low haze 0.8%,

QFS-188CC-100C0 is special designned for producing smart pdlc film, resistance between 100-150 ohm/sq, roll width choice is 1350mm(charge 1280mm),1600mm,1900mm, accept customized width and length, we're responsible for quality control.




NO

Item/Unit Size And Tolerance Test Equipment/Methods
1 Length(m)
+5/-0

Machine Automatic Measurement
2 Width(mm)
±3

Ruler
3 Thickness(um)
188±10%

Micrometer
4 Heat Shrinkage(MD, %)
 ≤1.5


150℃, 60 minutes

5 Heat Shrinkage(TD, %)
≤1.0

150℃, 60 minutes

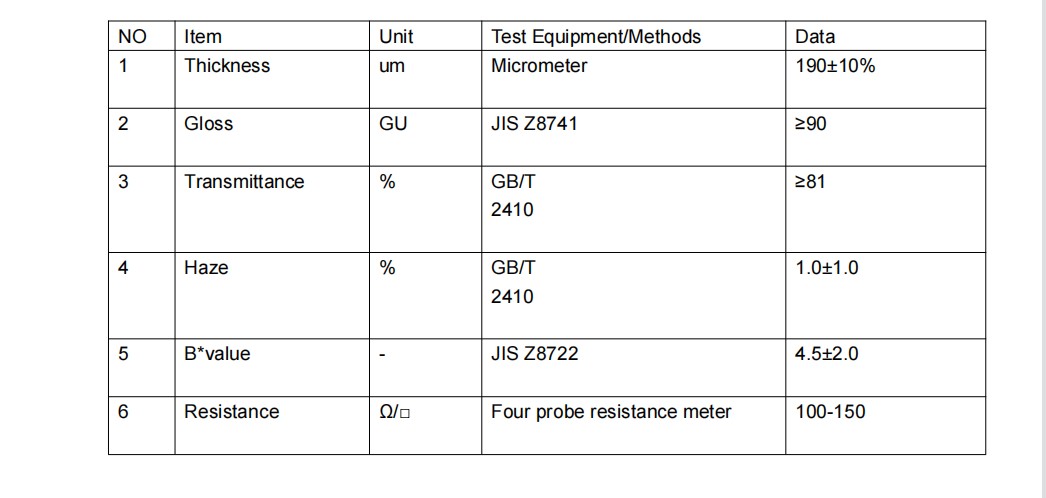

ITO DATA

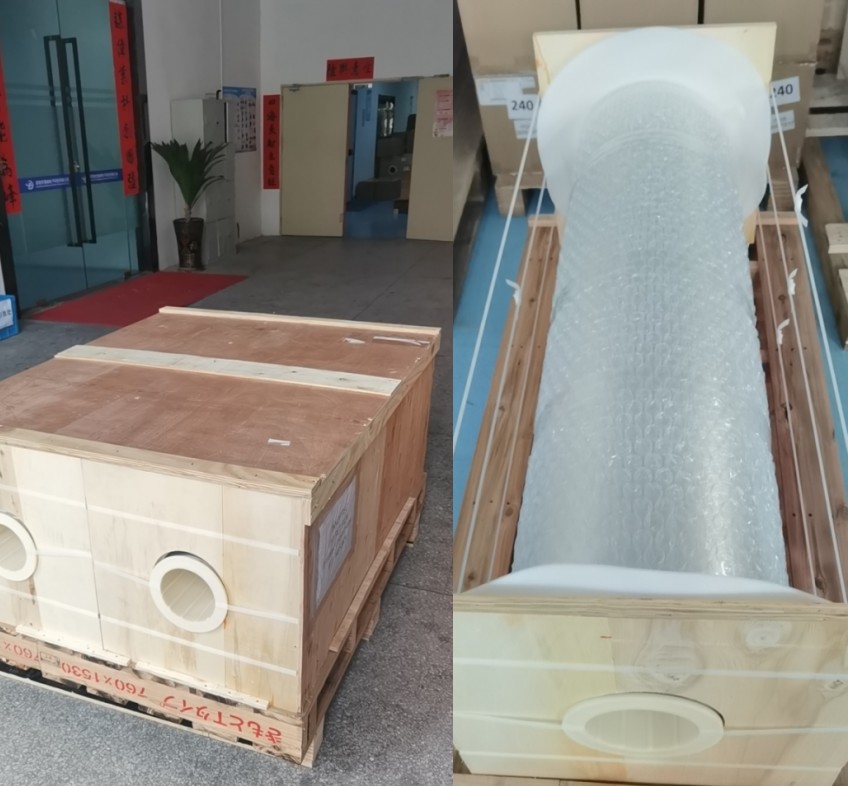

PACKING ITO FILM

For International transportation, we use strong carton or treated wooden box for safety.To ensure each meter of ITO PET film arrives

safely to you.


The film can be with high temperature protective on the PET side, also can be no protective film for your easy PDLC coating.



company introduction1


company introduction2


company introduction 4
