315-630mm HDPE pipe production line
This HDPE water supply pipe and gas pipe production line is mainly used for producing HDPE/PE/PP/PPR/MPP pipe which used for water supply, gas supply, waste water drainage, electric cable protection in the field of agriculture and construction cable,etc.
The pipe has excellent featurers such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork system between city and its suburb, water supply in city.
Advantages:
High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption, greatly reduce customer's production cost.
Diameter Range (mm): 315 355 400 450 500 560 630
Main Extruder Motor Power: 280kw
length:55m
Capacity: 650-750kg/h
wall thickness:by request

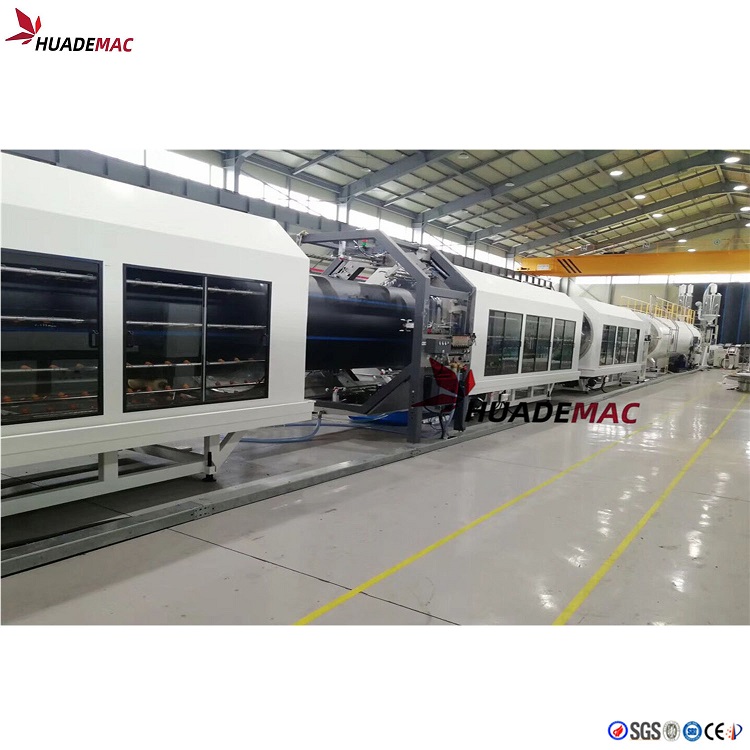

315-630mm HDPE pipe production line photos
Consists of HDPE water supply pipe and gas pipe production line:
1. Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe somooth and glossy.

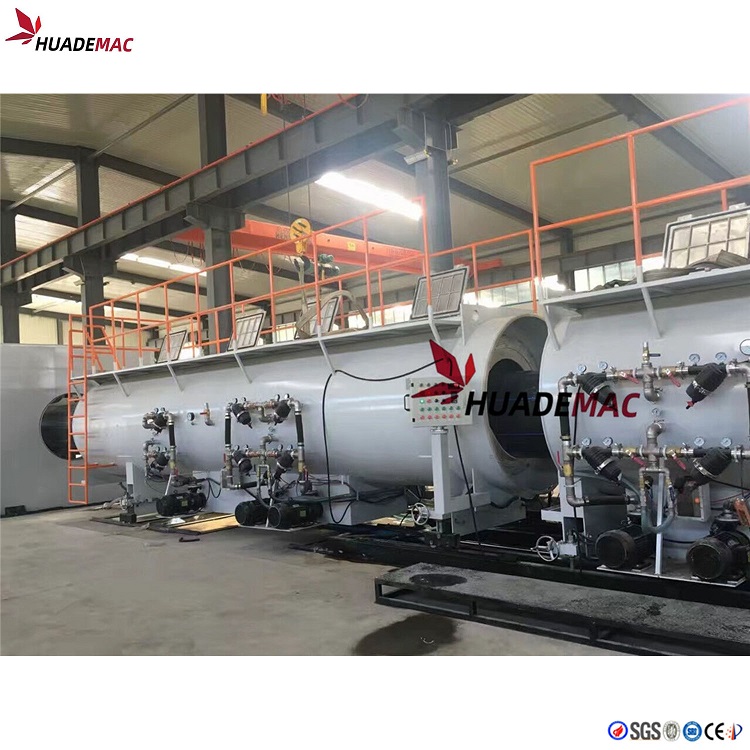

2.Vacuum calibration and spray water cooling tank made of stainless steel ensures precise calibration and fast cooling.

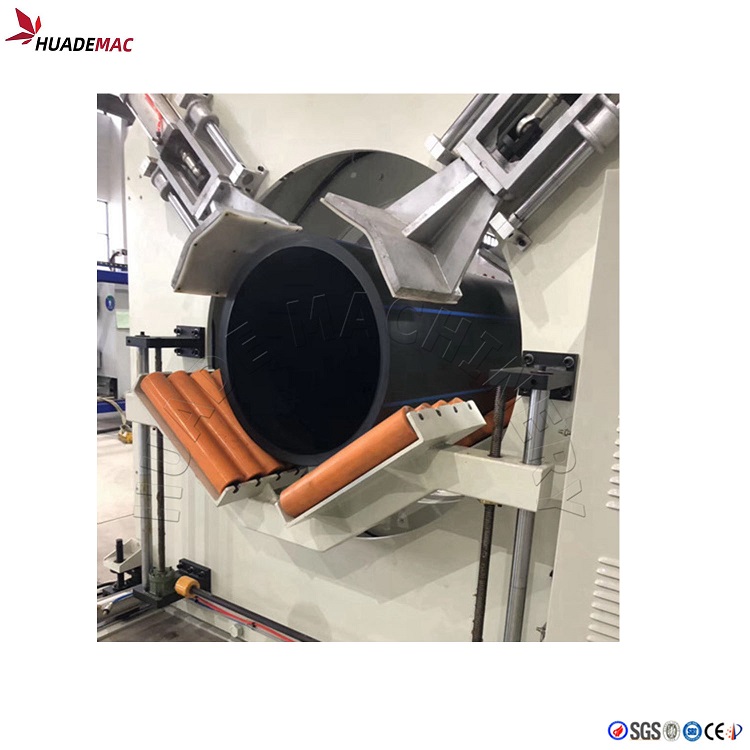

3. Haul-off unit with two claws, three claws, four claws, six claws, haul-off speed adjusted by frequency converter.
4. Dust-free cutter, be able to cut large diameter and thick wall pipe.
5.Small diameter pipe used winding machine, large diameter pipe used pipe stacker.
Packing of 315-630mm HDPE pipe production line
