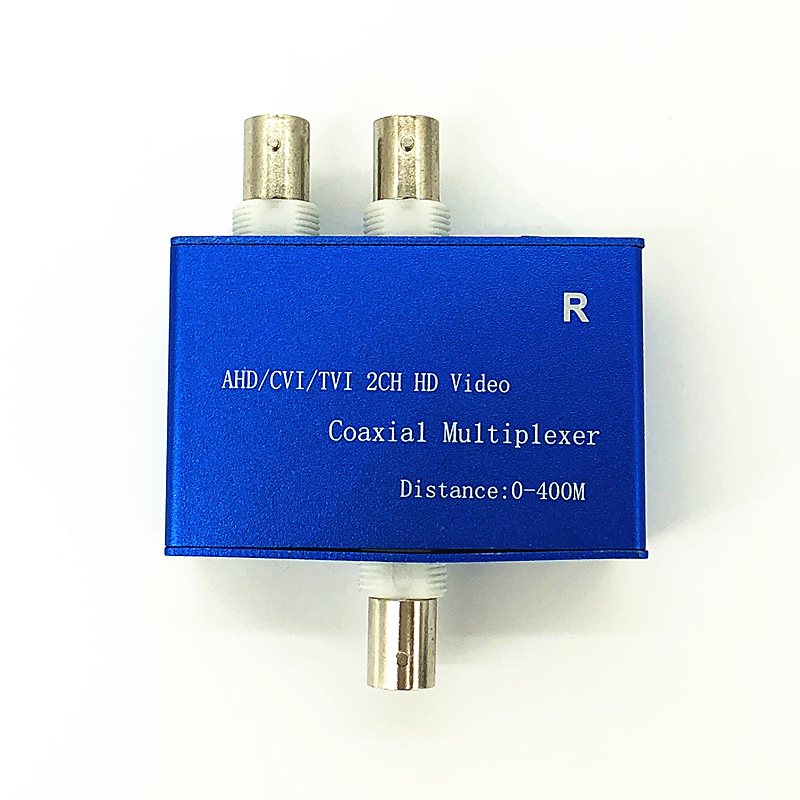

2 Channel HD-CVI/TVI/AHD Coaxial Video Multiplexer over Coaxial Cable(HDCM102T)
2 Channel HD-CVI/TVI/AHD Coaxial Video Multiplexer over Coaxial Cable(HDCM102T)
1.Overview
HDCM102T is HD 4-in-1 AHD/TVI/CVI/analog video multiplexer bound the 2 channel video signal of the camera in one coaxial cables transmission. The video multiplexer is composed of a transmitter and a receiver. From the receiver to the transmitter, it transmits 2channel video signals through one coaxial cable to long distance. Besides, as you don't need to install extra cable for data signals, you can save your money and time. It is suitable for improvement of old projects and building under new projects. Its can be in adaptive adjust transmission distance within 0-400meters.
2.Features
* 2 Channel HD video signal for cameras over one coaxial cable;
* Designed according to projects with minimum installation volume requirement;
* Long distance transmission up to 400meters;
* Frequency division multiplexing, with all video and data transmission real-time and all images high-definition and non-delay;
* Non-debug, adaptive: as long as the transmission distance range, the device will automatically adjust their targets;
* One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%);
* Maintaining high quality video & anti-interference immunity;
* Easy installation with BNC harness;
* Perfect support coaxialvideo line RG59 cable,etc.
* Mini size and lighter weight, save more shipping costs.
3.Technical Parameters
|
Item name |
2 Channel HD-CVI/TVI/AHD Coaxial Video Multiplexer over Coaxial Cable |
|
Model No. |
HDCM102T |
|
Compatible mode |
AHD: 720P/960P/1080P TVI: 720P/1080P CVI: 720P/960P/1080P CVBS/Analog |
|
Interface |
BNC port |
|
Power supply input |
DC 12V/1A |
|
Transmission distance |
0-400meters adaptive |
|
Operating temperature |
-30°C-50°C |
|
Humidity |
0 to 95% non-condensing |
|
Shell material |
High quality aluminum alloy materials |
|
Product weight |
67.5g /pc |
|
Product size |
6.4(L)x4.3(W)x2.3(H) cm/pc |
|
Warranty |
12months and life time maintenance |

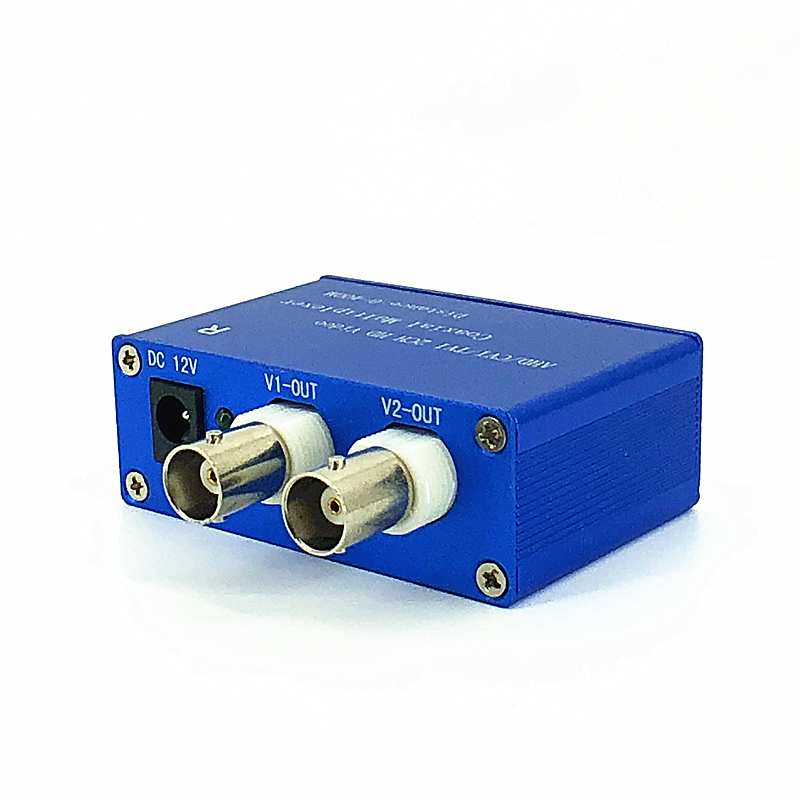

4. Panel introduction and diagram
Package
If you are interested in the product, contact 2bvideo.com for more information for more information
