Product details

Product Description

Steel is easy to rust in air and water, while the corrosion rate of zinc in the atmosphere is only 1 / 15 of that of steel in the atmosphere. Galvanized steel plate is to protect the steel plate from corrosion with a slightly dense galvanized layer.
Steel belt refers to the conveyor belt made of carbon steel as the traction and carrying component of belt conveyor, which can also be used to bind goods; It is a narrow and long steel plate produced by various steel rolling enterprises in order to meet the needs of industrialized production of various metal or mechanical products in different industrial sectors.
Steel strip, also known as steel strip, has a width of less than 1300mm and a length slightly different according to the size of each roll. The strip steel is generally supplied in coils, which has the advantages of high dimensional accuracy, good surface quality, easy processing, material saving and so on.SK5 is a carbon tool steel with JIS g4401 standard. It has high hardness and wear resistance after quenching and tempering.
The steel strip is divided into ordinary steel strip and high-quality steel strip according to the material used; According to the processing method, it is divided into hot-rolled steel strip and cold-rolled steel strip.

Facing the increasingly fierce steel industry, we are also trying to improve the industrial chain of carbon steel plate, steel pipe, galvanized coil and galvanized sheet, so as to provide you with better products.

Product Specification

Item

  HARDENED AND TEMPERED STEEL STRIP

Standards

    AISI,ASTM,DIN,JIS,GB,BS

Grade

  65Mn,SK5,SKS51,80CrV2,D6A,X32

Thickness

     0.2mm-3.0mm

Width

     10mm-350mm

Surface treatment

     Hardened and tempered rolled / Oiled / Annealed / Bright

Chemical Composition

Carbon C: 0.80 ~ 0.90
Silicon Si: 0.10-0.35
Mn: 0.10-0.50
Sulfur s: ≤ 0.030
Phosphorus P: ≤ 0.030
Chromium Cr: allowable residual content ≤ 0.25, ≤ 0.10 (when manufacturing lead bath quenched steel wire)
Nickel and Ni: allowable residual content ≤ 0.20, ≤ 0.12 (when manufacturing lead bath quenched steel wire)
Copper Cu: allowable residual content ≤ 0.30, ≤ 0.20 (when manufacturing lead bath quenched steel wire)
Note: the allowable residual content Cr + Ni + Cu ≤ 0.40 (when manufacturing lead bath quenched steel wire)

Mechanical Property

Hardness: annealing, ≤ 187hb, indentation diameter ≥ 4.40mm; Quenching, ≥ 62Hrc

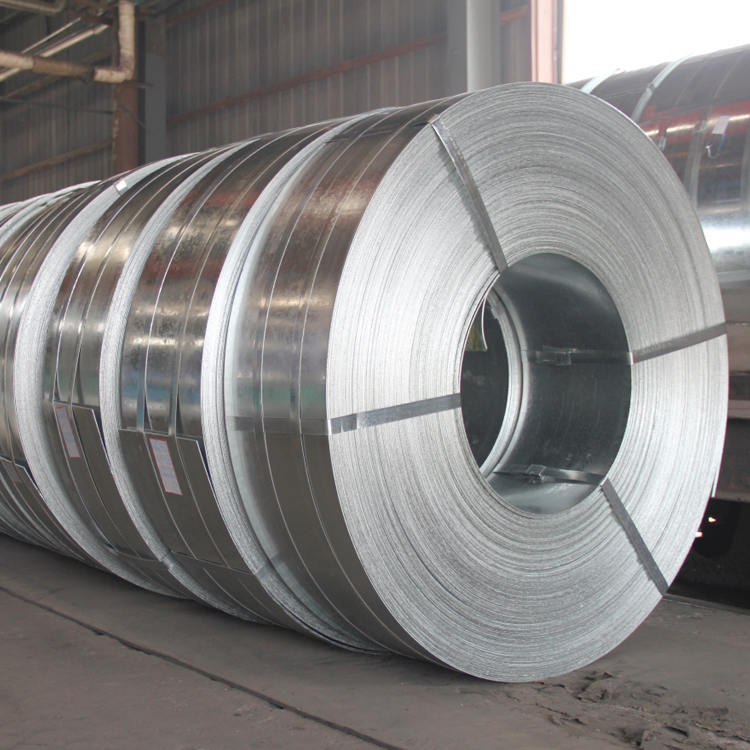

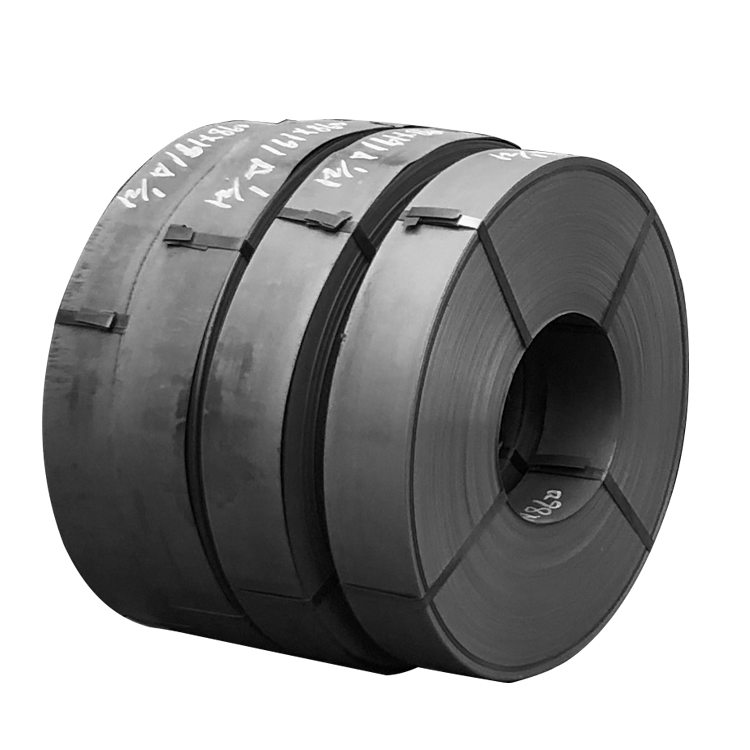

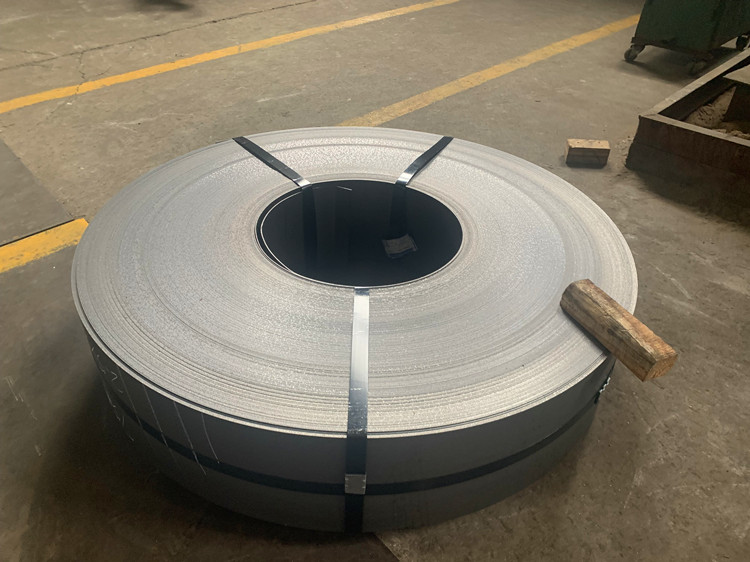

Product Display

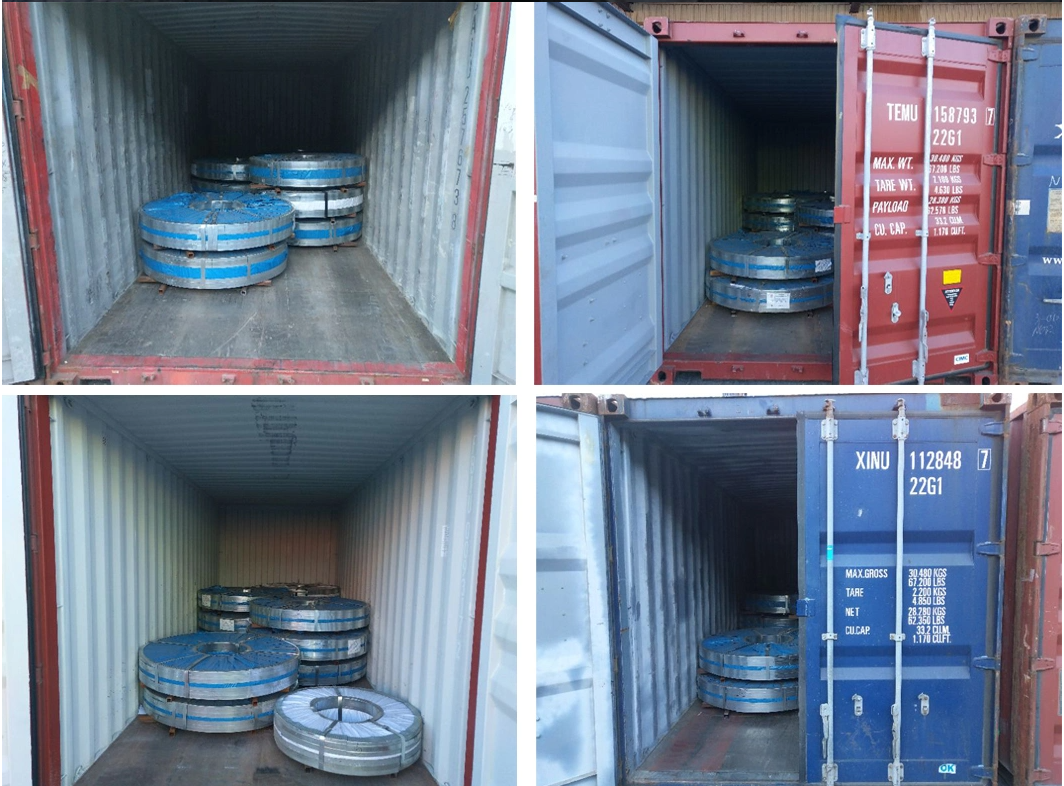

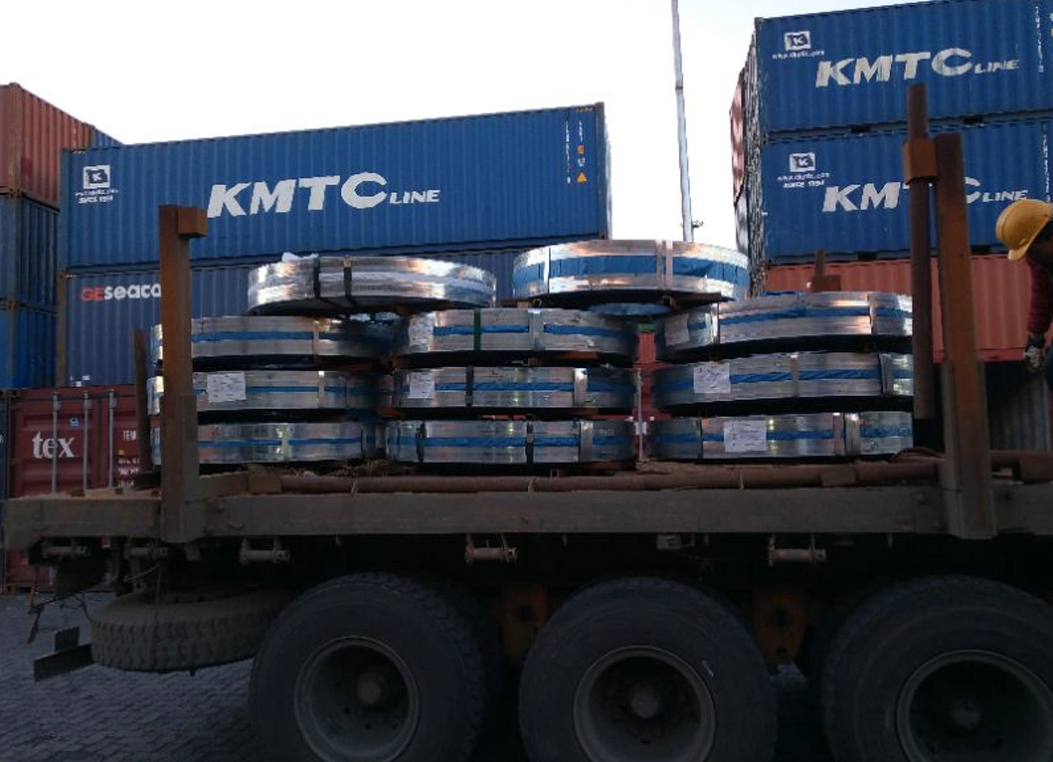

Packing & Delivery

1. Each coil is closely covered by oil paper or plastic film.
2. Outside it is firmly packed with sack cloth or compound paper.
3. Steel strap or PP strap to pack the outside to ensure safety.
4. On/about 1000kgs to be packed with one wooden pallet.
5. Strips can be loaded to 20'FCL without pallet if required by customer.
6. LCL shipment can also be arranged once required by the customer.

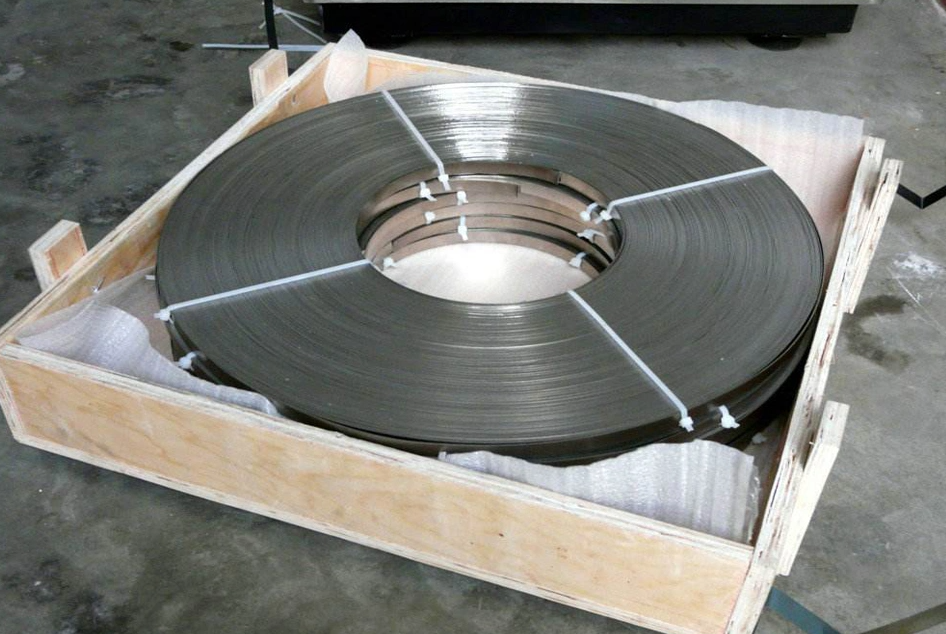

packing by wooden packing way packing ways

FAQ

Q: Are you a manufacturer?
A:Yes, we are a steel manufacturer and we have our own plant in Shandong, China. We are producing and exporting steel in various sizes. We promise that we are what you are looking for.

Q:Can we visit your factory ?

A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we can accept BV, SGS third inspection .
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to quantity.
Q:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So we can give the best offer.
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerely do.

Item	HARDENED AND TEMPERED STEEL STRIP
Standards	AISI,ASTM,DIN,JIS,GB,BS
Grade	65Mn,SK5,SKS51,80CrV2,D6A,X32
Thickness	0.2mm-3.0mm
Width	10mm-350mm
Surface treatment	Hardened and tempered rolled / Oiled / Annealed / Bright
Chemical Composition	Carbon C: 0.80 ~ 0.90 Silicon Si: 0.10-0.35 Mn: 0.10-0.50 Sulfur s: ≤ 0.030 Phosphorus P: ≤ 0.030 Chromium Cr: allowable residual content ≤ 0.25, ≤ 0.10 (when manufacturing lead bath quenched steel wire) Nickel and Ni: allowable residual content ≤ 0.20, ≤ 0.12 (when manufacturing lead bath quenched steel wire) Copper Cu: allowable residual content ≤ 0.30, ≤ 0.20 (when manufacturing lead bath quenched steel wire) Note: the allowable residual content Cr + Ni + Cu ≤ 0.40 (when manufacturing lead bath quenched steel wire)
Mechanical Property	Hardness: annealing, ≤ 187hb, indentation diameter ≥ 4.40mm; Quenching, ≥ 62Hrc
