Description:

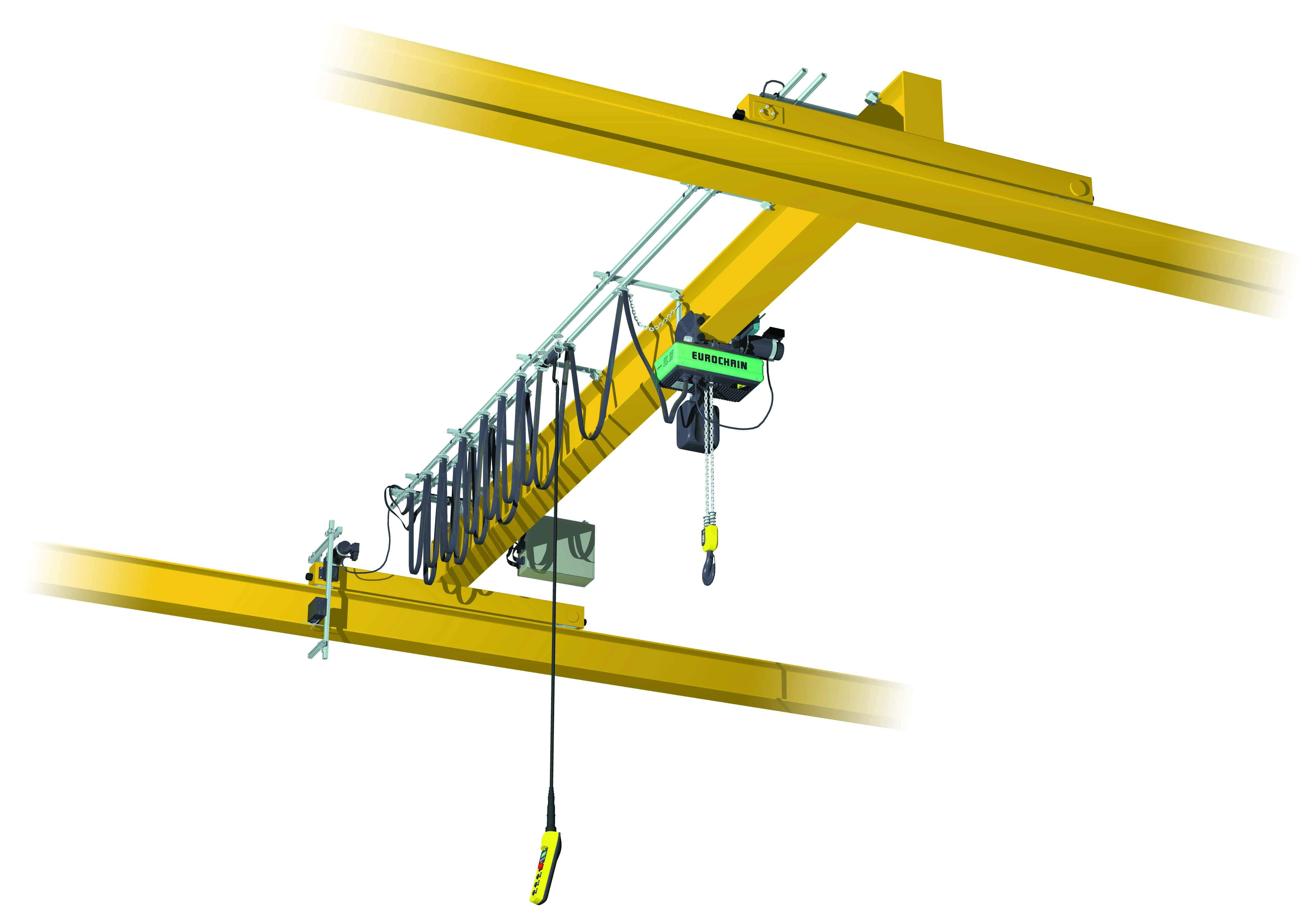

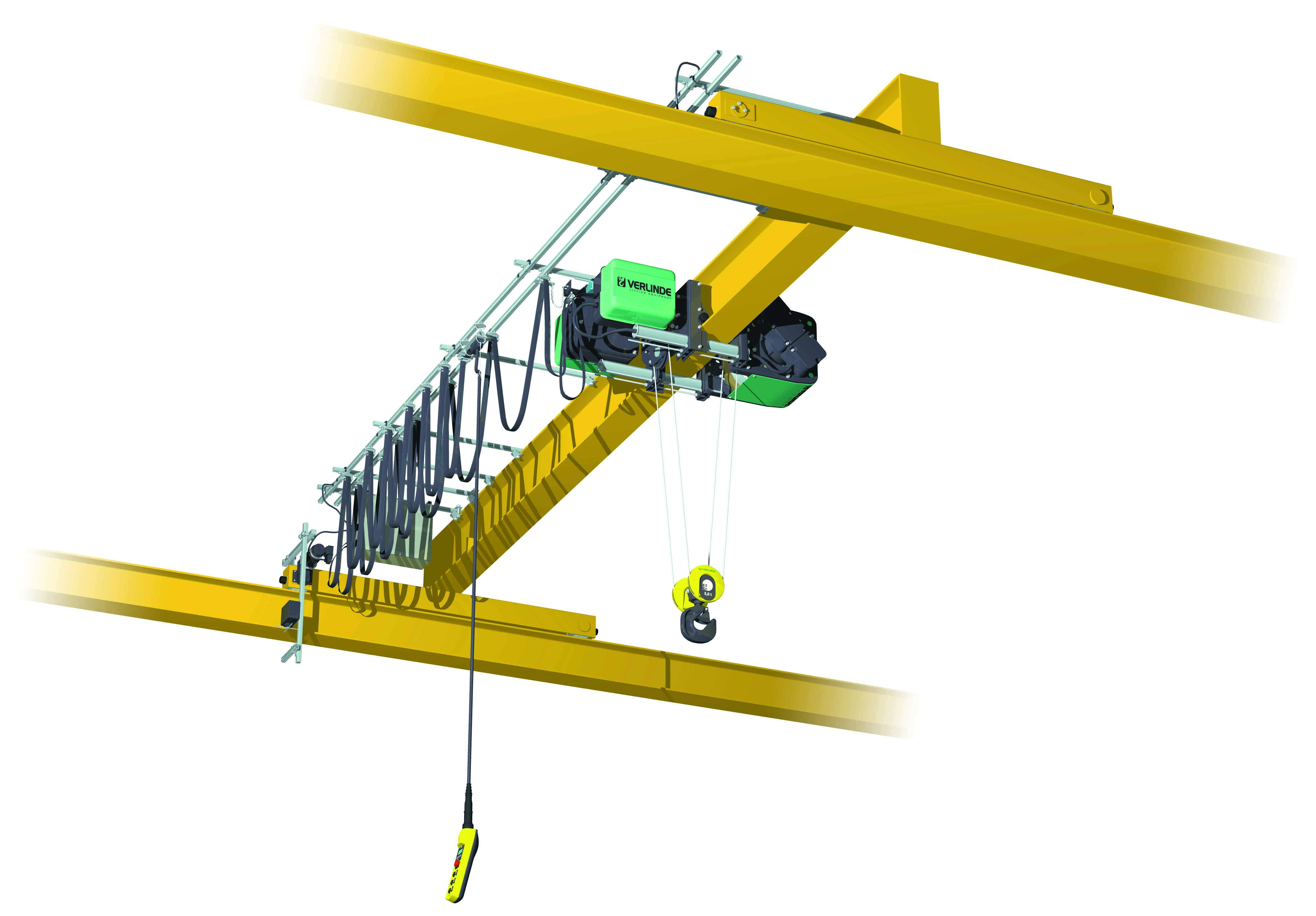

Single Girder Overhead Crane is one major class of overhead crane. We can also call overhead crane as overhead travelling crane or bridge crane.The single girder overhead crane has one bridge girder which can support the trolley and hoist. Our single girder overhead crane has smaller size,best performance,best investment and user-friendly design than traditional ones. It deserves your trust.
Usage:
Overhead travelling crane is widely used in plants, warehouse, and material stocks to lift goods and characterized by more reasonable structure and higher strength steel as a whole.
Components:
a) Steel structure: main bridge beam, end carriages with wheels driven by motors.
b) Hoisting mechanism: electric hoist mounted on main bridge beam.
c) Electrics: electric box/cables/operator.
Control method: a) Wireless Remote Control; b) Pendant Line with Press Button; c) Cabin Control
Painting:
Epoxy zinc rich primer+ micaceous iron oxide anchor coat + aliphatic polyurethane top coat
Color: according to your demand.
Average thickness: about 100 microns
Power supply: 380V/50HZ or as per client's requirement
Safety features:
1. Weight overload protection device: If the material is over the capacity, the crane will give a sharp warning for protection itself.
2. Emergency brake: If the operation staff encounters some emergency situation, we could start the emergency brake system to protection the related treasure.
3. Control Method: Ground control and cab control to avoid any injure to the operation staff
4. Main lifting motor: with thermal protection and currency protection.
5. Hooks with latch
6. Top quality long time bearing polyurethane materials buffer
7. Protective earthing
8. Crane traveling limit switches
If you are interested in the product, contact 2bvideo.com for more information for more information
