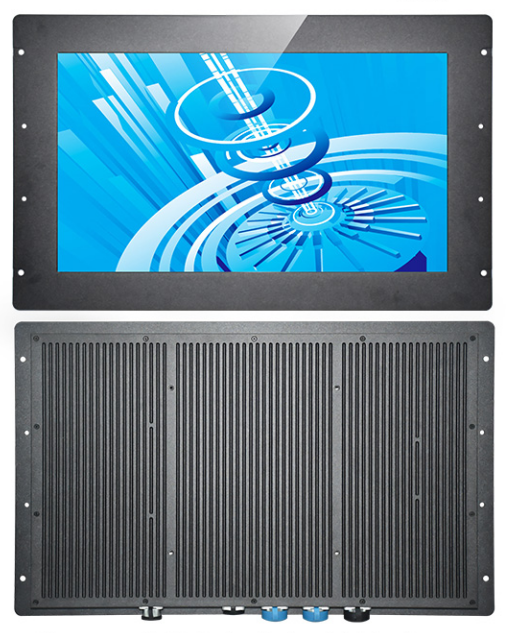

24 inch Outdoor Waterproof industrial fanless panel pc. Hengstar is an enterprise focusing on the research, development, production, sales and service of industrial special computer equipment, mainly involving industrial displays, waterproof pc, industrial all in one pc, Industrial panel pc, fanless panel pc, etc. fanless panel pc,fanless touch panel pc,fanless industrial panel pc,fanless panel pc touch screen,fanless industrial touch panel pc,industrial fanless pc
Industrial All In One Pc
Key Features of industrial all in one pc:
21.5” industrial all in one pc, Full HD 1920*1080 resolution TFT LCD screen.
Industrial All In One Pc
Industrial all in one pc, TFT ips panel, 10 points capacitive touch; Support rack mount/VESA mount/embedded mount
Industrial All In One Pc

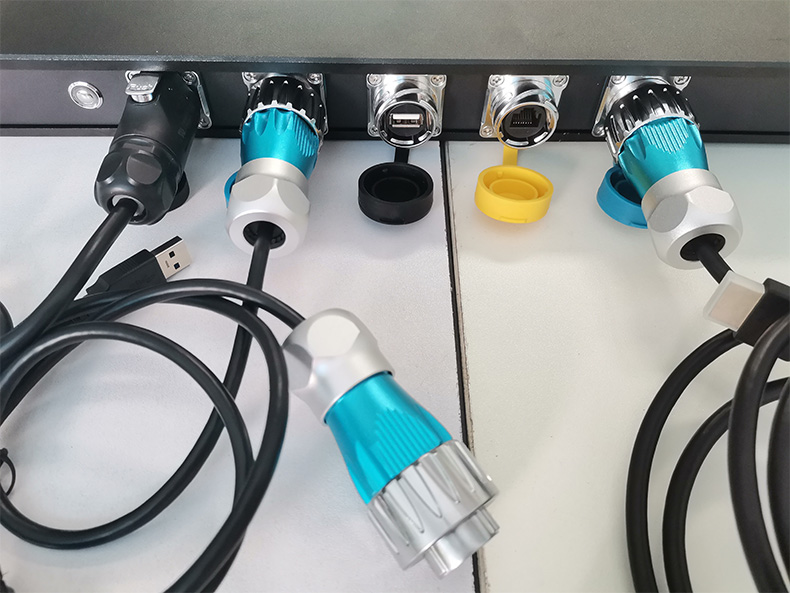

IP67 whole machine waterproof for industrial all in one pc, the ports can be customized waterproof
Industrial All In One Pc
Specifications for industrial all in one pc
| Item No. | HSPC-2155-ATPC | |
| LCD Screen | Size | 21.5’' industrial all in one pc |
| Aspect Ratio | 16:9 | |
| Pixel Pitch | 0.24795*0.24795 mm | |
| Resolution | 1920*1080 (WSUVGA) | |
| View Angle | 170° (H)/160° (V) | |
| Brightness | 1000/1500 nits (Optional) | |
| Contrast Ratio | 1500:1 | |
| Colors | 16.7M(8Bit) | |
| Touch Screen | Screen | 10 point Capacitance Touch |
| Active Area | 479.84*271.30 mm | |
| Viewing Area | 477.60*269.20 mm | |
| Screen Thickness | 3. 95mm | |
| Resolution | 16384*9600 | |
| Response Time | Below 10ms | |
| Light Transmission | >80% | |
| Touch Media | Finger | |
| Durability | More than 10,000,000 single touch | |
| MTBF | >60,000 hours | |
| PC System | Intel® Core™ i5-4210U Processor, 2.10 GHz | Quad Core Quad thread 2.1GHz (Optional) |
| 2M L2 cache | ||
| 35W low TDP | ||
| Chipset | i3 i5 i7 optional | |
| Memory | 4GB/8GB DDR3L | |
| I/O Interface | 2 *USB 2.0, 2 *USB 3.0, 2*(RS232) | |
| 1*4PIN 12VCD | ||
| 2*FAN | ||
| 1*MINI-SATA | ||
| 1*MINI-PCIE | ||
| 1*SATA | ||
| 1*SIM | ||
| 1*LVDS/eDP | ||
| Sound Card | ALC662 chip, 6-channel sound card,front Audio pin | |
| Hardware Detect | ITE8712, CPU detect Fan, system fan,voltage, temperature, etc. | |
| Net Card | 10~100~1000M adaptive network card | |
| H.D.D | SSD 32GB / 64GB / 128 GB | |
| Power requirement | +12V,24V | |
| Rear Panel I/O | 1*RJ-45 | |
| 2*2.0USB, 2*3.0USB ports | ||
| 1*DC (in) | ||
| 1*HDMI AUDIO-OUT | ||
| AUDIO-MIC | ||
| s Speaker | Power: 5W*2 | |
|
Quality Approval |
Fire-resistance | UL-94HB |
| Chemical-resistance | Active area of Touch is resistant for acetone, toluene, butanone, acetylacetone, methanol, acetic acid, gas, coal oil, and Vinegar. | |
| Certificate | RoHS, FCC (Part 15) CE (EN55022 and EN55024) | |
| Environments | Temperature | Operation: -10°C ~ 60°C |
| Storage: -20°C ~ 70°C | ||
| Humidity | Operation:10%~90% RH | |
| Storage: 5%~95% RH | ||
| Power Supply | Power Input | 12/24V DC (Optional) |
| Power Consumption | Approx. 65 Watts | |
| Mount | VESA mount | |
| Accessories | AC Adapter, Power Cord | |
Application for industrial all in one pc
Industrial all in one computer,all in one panel pc,Industrial All In One Pc,Industrial Personal Computer
