Product details

MD01-20 Diaphragm For Taeha Pulse Jet Valve TH-5820-B TH-5820-C


Main Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change
fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction.
This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or
require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
* No leakage     * No Lubrication                    * No Breakaway Force
* No Friction      * Wide Pressure Ranges        * High Strength
* Low Cost         * Simple Design                   * Versatility


Ordering Code of Diaphragm For Taeha Pulse Valve:

BRANDO Model
Reference Number
Port Size
Fitted Pulse Valve Model
Color
Material
DH20
MD01-20
MD02-20
3/4''
TH-5820-B
 TH-4820-B
 TH-5825-B
 TH-5820-C
TH-4820-C
Red & Green
NBR
DH25
MD01-25
MD02-25
1''
TH-4825-B
TH-5825-C
TH-4825-C
TH-5840-F
TH-4840-F
DH25M
MD01-25M
1''
TH-5825-M
DH40
MD01-40
MD02-40
MD03-40
1 1/2''
TH-5840-B
TH-5440-B
TH-4840-B
TH-4440-B
TH-5840-C
TH-5440-C
TH-4840-C
TH-4440-C
TH-5850-F
TH-5450-F
TH-4850-F
TH-4450-F
DH40M
MD03-40M
1 1/2''
TH-5440-M
TH-4440-M
DH50
MD03-50
2''
TH-5450-B
TH-4450-B
DH50M
MD03-50M
2''
TH-5450-M
TH-4450-M
DH60
MD03-60
MD04-60
2 1/2''
TH-5460-B
 TH-4460-B
TH-5460-S
TH-4460-S
DH75
MD03-75
3''
TH-5475-B
TH-4475-B
DH75M
MD03-75M
3''
TH-5475-M
TH-4475-M

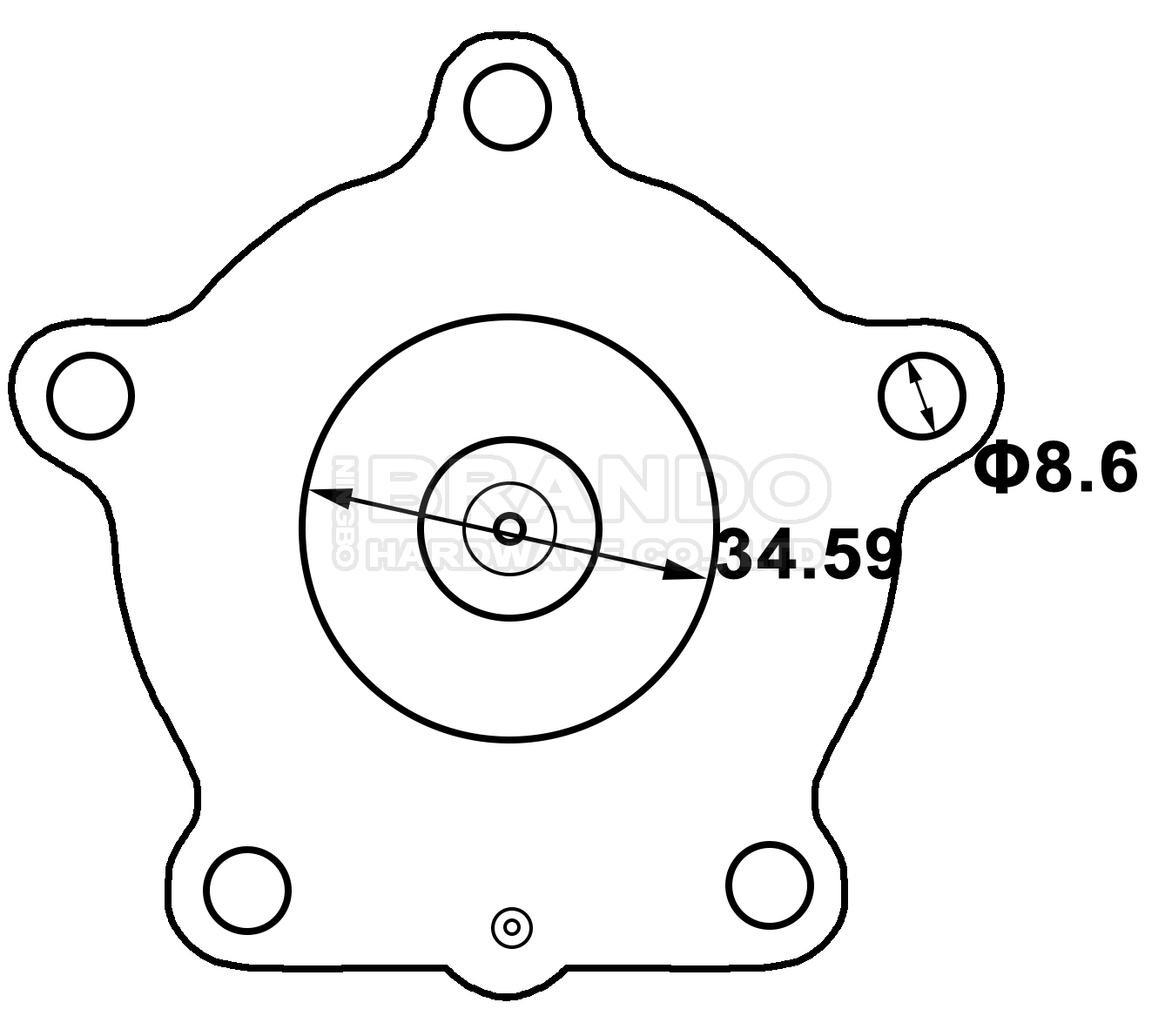

Dimension of MD01-20, MD02-20 Diaphragm:

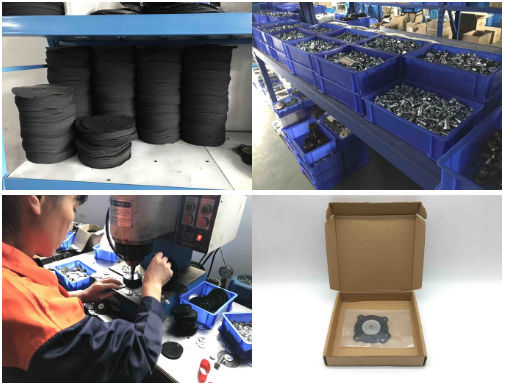

Pictures of Solenoid Valve Membrane Production:

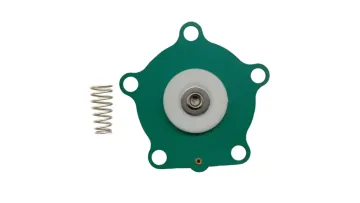

1271526 Diaphragm Repair Kit For Norgren 3'' 8296900 Pulse Valve 10


More Products For Taeha Pulse Valve for you to choose:



2
3/4'' SCG353A043 ASCO Type Solenoid Pulse Jet Valve For Dust Collector 8
Valve Diaphragm
Solenoid Coil Solenoid Armature Pulse Controller


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
