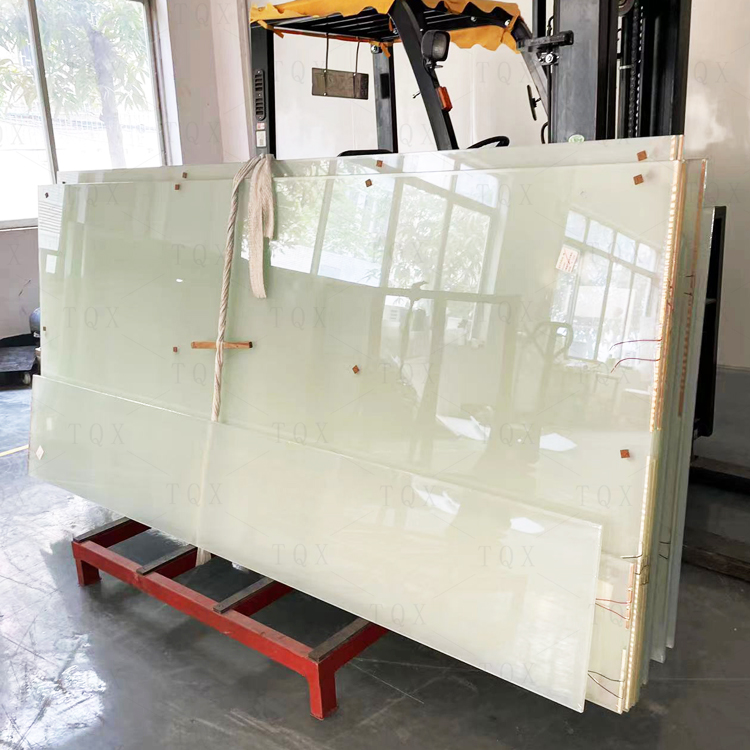

What's the Switchable Glass Size?

The strength of the glass can be judged based on the manufacturer's available glass width. Our dimming glass can achieve a width of 2 meters for a single piece of glass. If it is not for the width limit of the diaphragm, the glass can achieve 5 meters. However, the width of 2 meters is beyond the reach of other manufacturers. You can buy our products with confidence. Dimming privacy glass technology is an innovation in the growing need for privacy. With switch control and voice commands, the Smart Film can be changed from transparent to matte. Color switchable film is the best choice for Windows and Tinted Glass because they are versatile, affordable, and easy to install. Add unique designs for homes, meeting rooms, hospitals, etc.

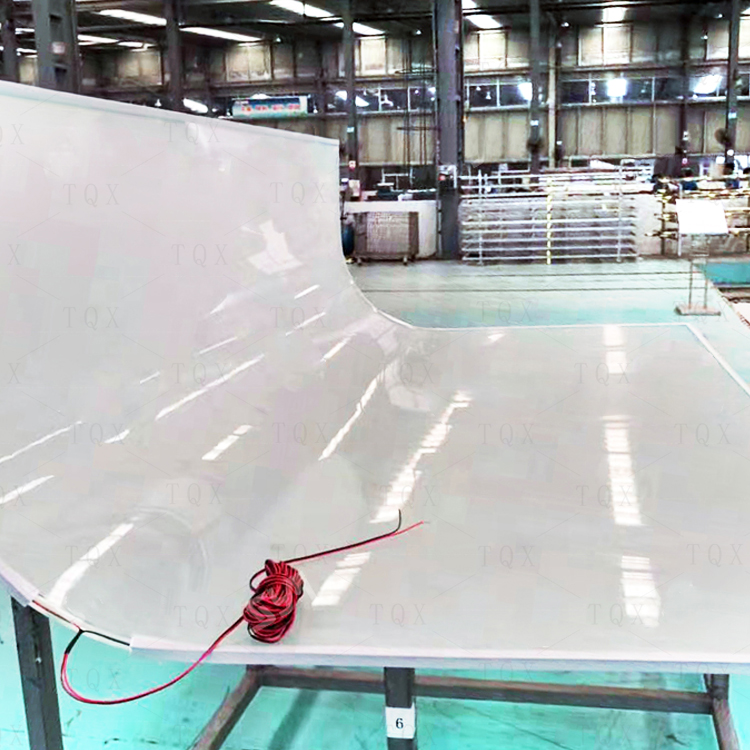

The production of PDLC smart glass membranes is a highly technical and difficult task. The larger the size, the harder it is to produce. Therefore, many domestic manufacturers require that they block splicing for orders that exceed the maximum size of their dimming film. As we all know, for privacy dimming glass, if you use multi-chip glass with narrow width, it is visually ugly. For example, if you can choose a width of 1.4m, do not use two 70cm glass to splicing. Can easily affect the visual appearance and its practicality (When applying a projection screen, multiple glass panels can be spliced in the middle, so it is easy to get a lot of seams in the middle and the perception is poor.). At present, the world's largest size dimming glass can be 1500mm × 3300mm.
One of the most advanced features of window membranes is the reduced transmission of ultraviolet and some infrared rays. Play a protective role.

Dimming Film Roll Dimming Film Glass

Window Dimming Film Projection Dimming Film

P D L C F I L M
Test Items	High temperature experiment 70 °C, 240 h; Low temperature experiment -20 °C, 240 h; High temperature and high humidity experiment 60°C, 95% RH, 240 h; High and low temperature shock test -20 °C, 30 min, 70 °C, 30 min (cycle 50 times).
Atomization Rate	Transparency is 96% when the smart film roll powered on; Transparency is less than 4% when the film powered off.
180° Visible Light Transmittance	Transparency is 83% when the film powered on; Transparency is more than 60% when the film powered off.
Application	Privacy Room,Projection,Silent Room,Fire Room,Window Advertising,Special Perspective Lift,Bank,Showcase,Bathroom,Vehicle Application,Hospital,Brand Store,Restaurant,Factory Floor,Dynamic Window Display,Control Room,......
Response Time (OFF-ON)	< 10ms
Power Consumption	5W/㎡
Operating Voltage (ON)	AC48V ~ 65V/50Hz
Energy Saving	Block more than 99% of the uv and more than 98% of the infrared, insulation performance reaches level 2 or above.
Safety	It has the advantages of safety glass, good impact resistance,eva film and laminated glass smart film firmly adheres the glass, so that the smart glass can prevent debris from hurting people after being broken by impact.
Control Methods	Manual switch, remote control, trigger control, voice control, APP control, timing control, remote network control, etc, can be customized according to customer needs.

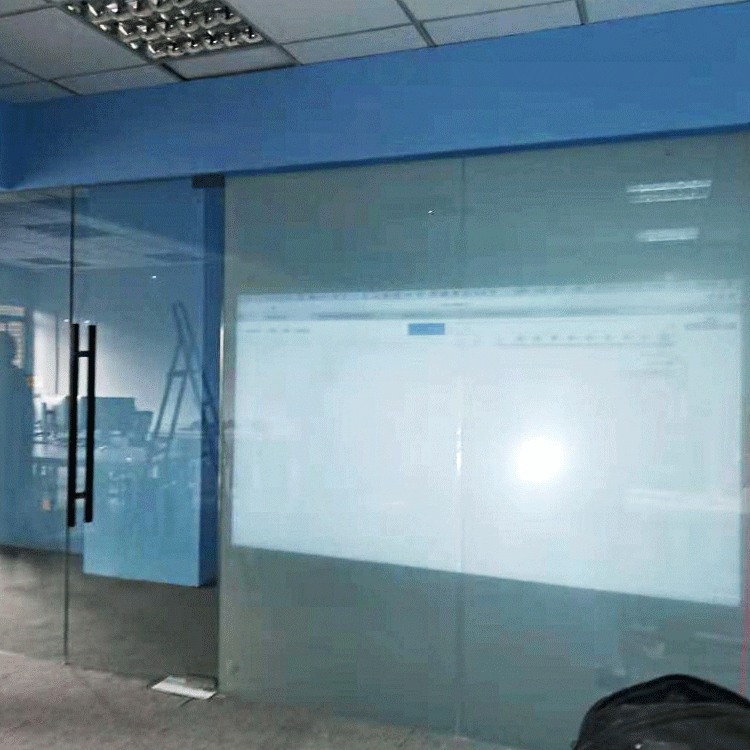

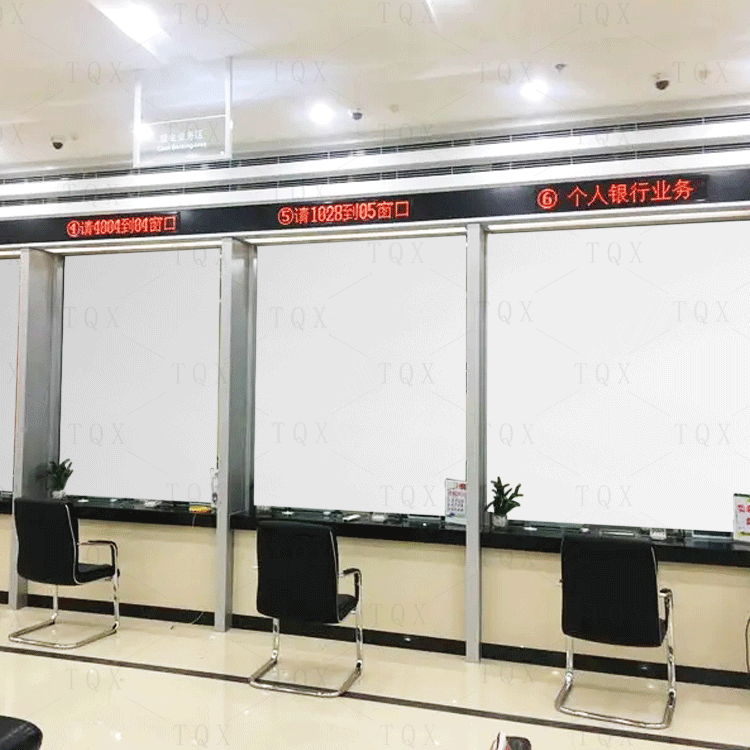

When the bank counter to accept external business, the glass will be transparent, clearly visible inside and outside, does not affect the business; When the counter does not accept business, the glass is adjusted to atomization, so that the inside and outside can not be seen, so that the bank staff can avoid being disturbed by the outside world, and the projector can also be used to project images (as shown below). Even in the event of some dangerous situations that are very adverse to the bank, it can instantly block the connection between the inside and outside space and reduce the loss of personnel and property.

power supply for smart film PDLC Film

FAQ

Q1. What is the lead time?
A: Sample is 1-3 working days, mass production time is 3-5 working days for
Order less than 5000 PCS.
Q2. Do you have any MOQ limit?
A: Screen Protector MOQ is 500 pcs with yourself logo.
Screen Protector MOQ is 3000 pcs with Custom Package.
Q3. How should we pay if we order from you?
A: Alibaba trade assurance: Samples and small order
T/T: Mass production
Q4: What is the packaging?
The Packaging Detail:
A: Factory Finished product packaging: retail package x1 TPU screen protector x1
hard scratch card x1 Toolkit x1 include dust removal stickers,Clean cloth,wet bags,
dust remover. 200 product in one carton the carton size is:42*36*32cm,
the carton weight is 18kg.
Q5. Can I have a sample even pre-production before I send you the order?
A: Yes, We can send you samples for your approval first.
Q6. Do you offer guarantee for the products?
A: Yes, we can offer one- year guarantee for the goods.
