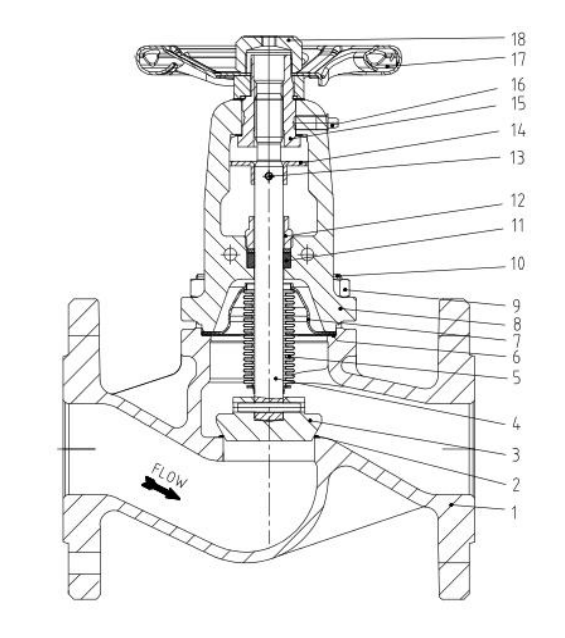

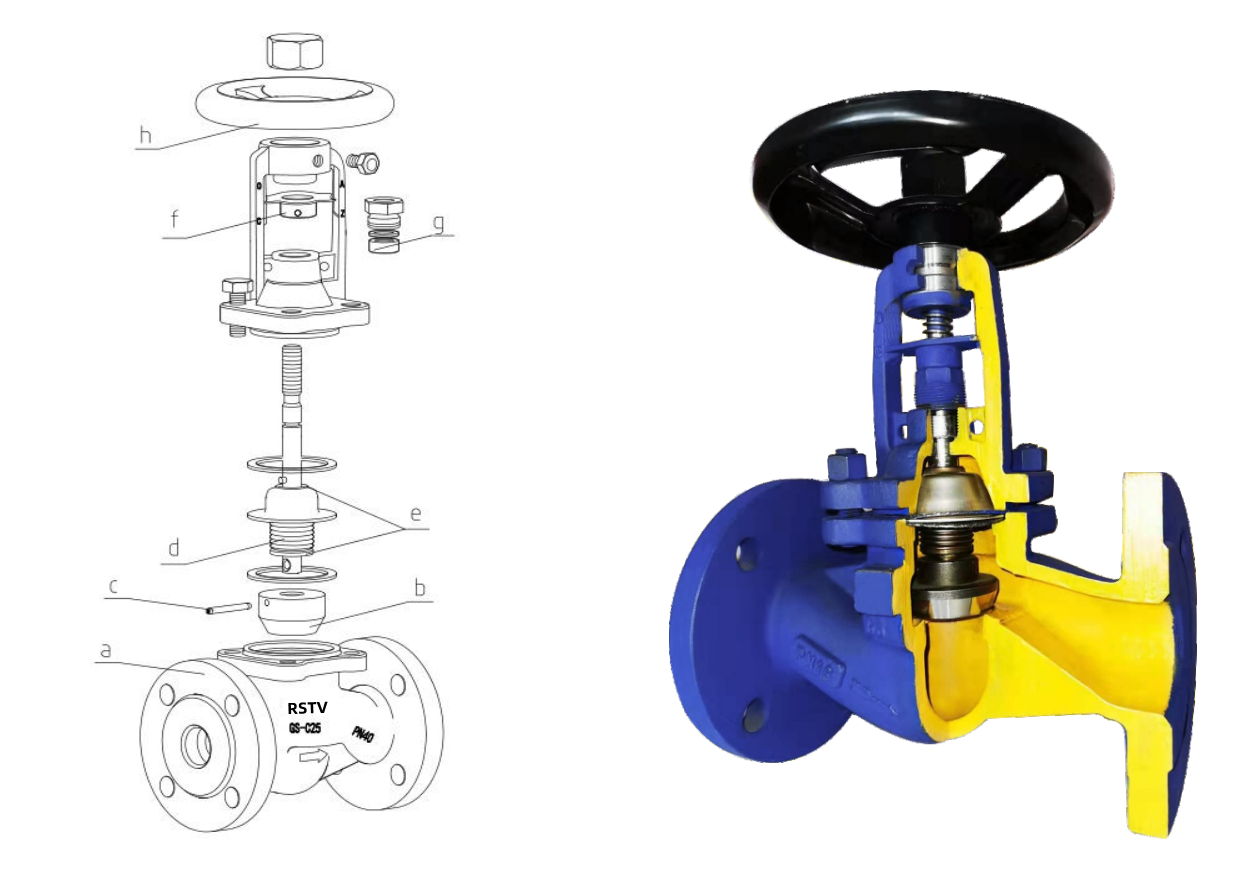

The DIN bellows globe valves through automatic roll welding, forms a metal sealing barrier between the medium and the atmosphere, ensuring the design of stem with zero leakage. It has a double sealing design, first part is bellows, the second is packing. If the bellows seal fails, the packing as a supplementary seal.
We use three layers of stainless steel bellows, and its service life can be used 5000 times. Thus extending the service life of the bellows globe valves. This kind of globe valve can be used in Heat-transfer oil system, High temperature steam system, Fused salt, Cold and heat water system etc.
| Product Name | DIN standard stainless steel bellows globe valve Flange/Welding end PN16/25/64 |

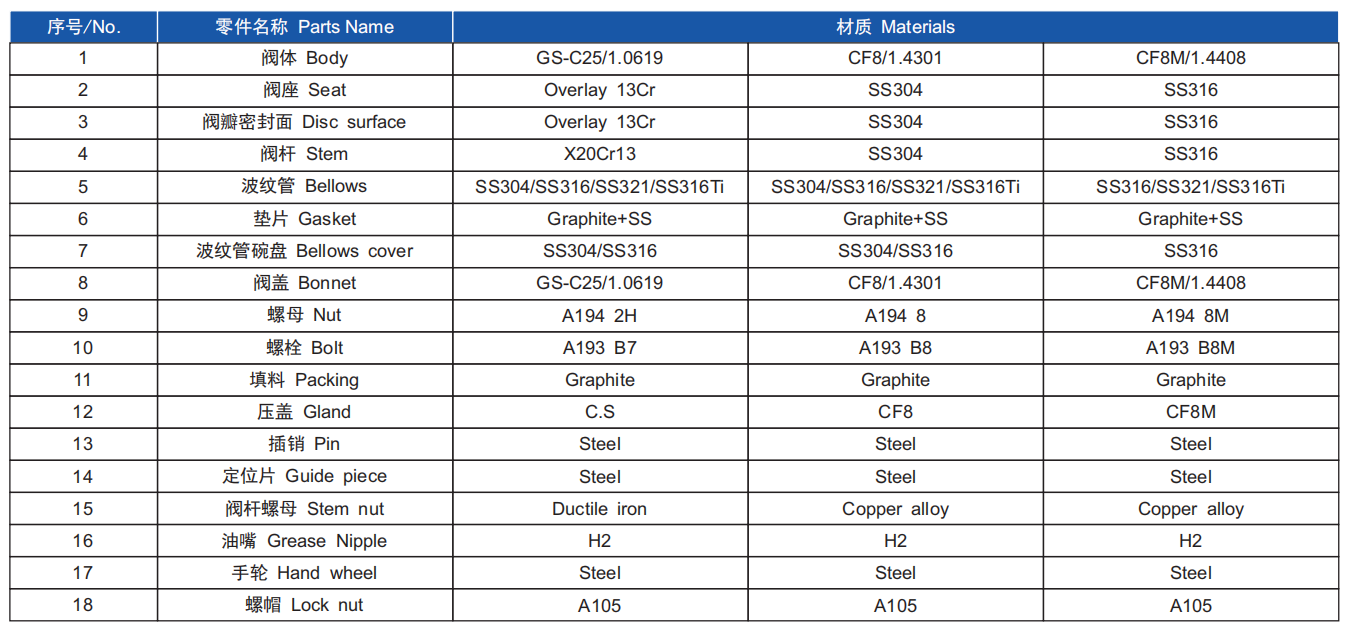

| 1. Body Material: |
GS-C25(1.0619/WCB), 1.4308(CF8), 1.4408(CF8M), SS321, 904L etc. |
| 2. Bellows Material: | SS304, SS316, SS316L, SS321, SS316Ti, Hastelly C276 etc. |
| 3. Size: | 1/2" ~ 20"(DN15-DN500) |
| 4. Pressure: | PN16 ~ PN40 |
| 5. Temperature: | -29℃ ~ 425℃ |
| 6. Design Standard: | DIN EN 13709:2003 |
| 7. Face To Face Dimension: | DIN EN 588-1:1995 |
| 8. Flanged Ends: | DIN EN 1092-1:2002 |
| 9. Welded Ends: | DIN EN 12627 |
| 10. Test & Inspection: | 12266:2003 |
| 11. Application: |
Heat-transfer oil system, High temperature steam system, Fused salt, Cold and heat water system etc. |
| 12. Operation: | Handwheel, gear, pneumatic actutor, electric actuator. |
| 13. Suitable Medium: | Water, oil etc. |
| 1. Delivery Time: | 15-20 Days |
| 2. Package: | Standard exporting plywood case |
| 3. Shipping Port: | Ningbo, Shanghai, Tianjin etc. , China |
| 4. Shipping Terms: |
EXW, FOB, CIF, CFR, etc. |
| 5. Payment Terms: |
T/T, Western Union, LC etc. 30% prepayment, 70% balance paid before shipping or against the copy of B/L. |
| 6. Country Of Origin: | Wenzhou city, China |
| 7. MOQ | 10PCS |
Warm tips:
Above parts materials are used for conventional products. If there are special requirments, which can be changed according to customer requirments.
