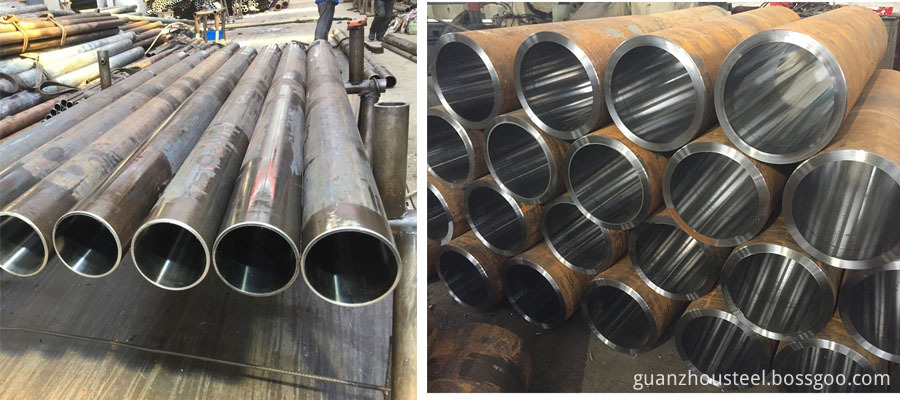

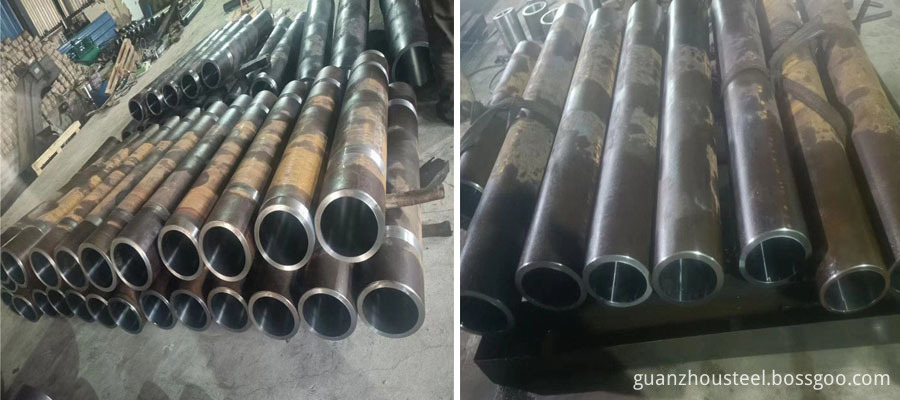

The Honed Steel Tubing is made of cold-rolled Precision Steel Pipe finished product or Steel Pipe waste pipe, after pickling, phosphating, saponification treatment, and then rolled by cold-drawing machine to become hydraulic steel pipe. The precision of the hydraulic cylinder can generally be controlled within the range of 0.02-0.05mm, and the allowable deviation of the inner diameter is 0.03mm.
Hydraulic cylinder tube st52 din2391 widely used in hydraulic system with precision steel tube, injection molding machine with precision steel tube, hydraulic press with precision steel tube, shipbuilding with steel tube, EVA foaming, hydraulic machinery, hydraulic cutting machine, shoe making machinery, hydraulic equipment, high pressure tubing, hydraulic tubing, card sets of joints, pipe joints, rubber machinery, forging machinery, casting machinery, engineering machinery, automotive high pressure steel pipe concrete pump, sanitation vehicle, automobile industry, shipbuilding industry, metal processing, military industry, diesel engine, the internal combustion engine, air compressor, construction machinery, forestrymachinery, etc.
Features
1. Small outer diameter
2. High precision and small batch production
3. The cold drawn finished product has high precision and good surface quality
4. The cross-sectional area of the steel pipe is more complicated
5. The performance of the steel pipe is better, and the metal is denser
Description
| Product Name |
1020 seamless steel honed pipe |
|
Standard |
ASTM |
|
Material |
|
|
Chemical Composition |
C ：0.17%～0.2%
Si：0.17%～0.37%
Mn：0.35%～0.65%
S ：≤0.035%
P ：≤0.035%
Cr：≤0.25%
Ni：≤0.25%
Cu：≤0.25%
|
|
Physical Property |
Tensile strength σ b (MPa)：≥410(42) yield strength σ s (MPa)：≥245(25) Elongation δ (%)：≥25 Reduction of area ψ (%)：≥5， Hardness: without heat treatment, ≤ 156hb |
|
Production Process |
Hot Rolled，Cold Rolled ,Cold Drawn |
|
Tolerance |
OD :+/-12.5% ,WT:+/-1% ,Length:+/-5cm |
| Length | 3M,5.8M,6M,6.1M,9M,11.8M,12M or According to customer Requirement |
|
Surface |
Black Painting or According to customer Requirement |
| Ends | Plain ends or Bevelled ends with Plastice covers |
| Payment Terms |
EXW, FOB, CIF, CFR etc. |
| Trade Terms | TT, LC,OA,DP etc. |
|
Delivery Time |
Within 14 days after receiving 30% TT Advanced or LC at sight original
|
|
Application |
Widely Used in Automobiles, Motorcycles, Gas Springs, Hydraulic Machinery, Construction Machinery and Refrigeration Industry. |
