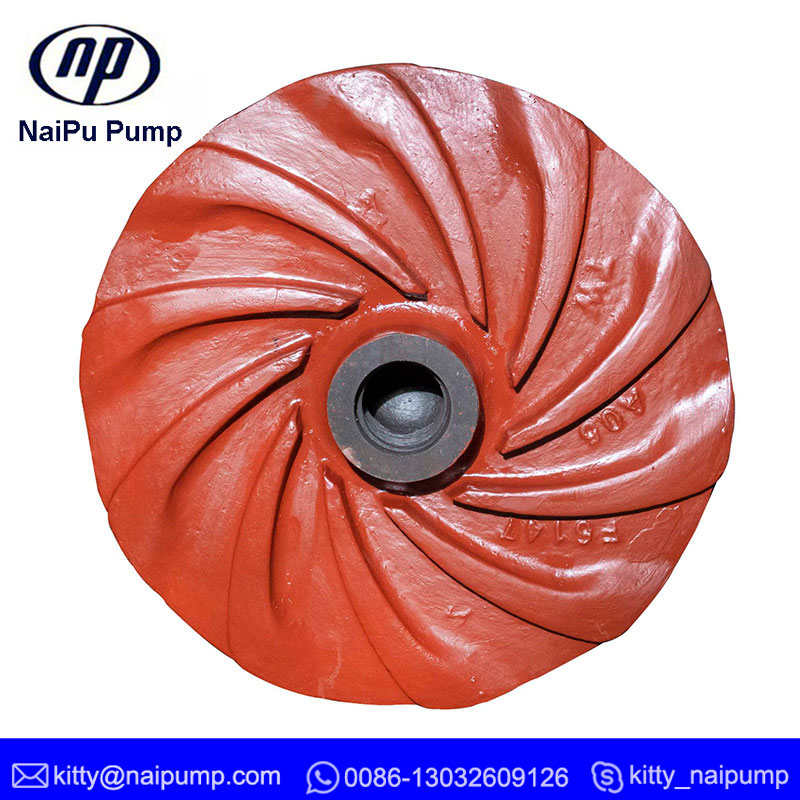

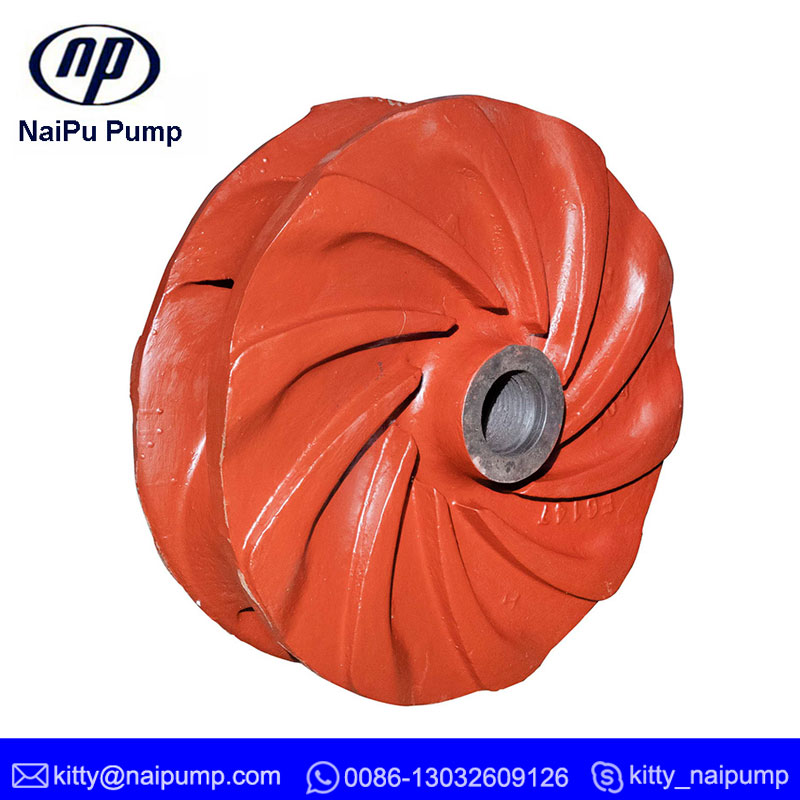

F6147A05 Slurry Pump Impeller for 8/6E Slurry Pump is the most important part in pump operation,which is a rotor,rotating component of a centrifugal pump.There are mainly three types of slurry pump impeller: Open,Semi-open and Closed. Vanes from 2-6.Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.When the slurry pump processing the solid mixture,the most worn parts are impellers.
The Materials of the impeller are NA05,NA49,NA33,NA61, Natural Rubber,Polyurethane ,Ceramic etc according to different working conditions.
Except the standard impellers, we can do OEM and ODM service if client provide us drawings or samples.
|
Parts Code |
Suitable for pump model |
Pump Type |
|
B1127 |
1.5/1B-NAH |
NAH Horizontal Slurry Pump |
|
B15127 |
2/1.5B-NAH |
|
|
C2147 |
3/2C-NAH |
|
|
D3147 |
4/3C-NAH, 4/3D-NAH |
|
|
D3058 |
4/3C-NAH, 4/3D-NAH |
|
|
D3021 |
4/3C-NAH, 4/3D-NAH |
|
|
E4147 |
6/4D-NAH, 6/4E-NAH |
|
|
E4056 |
6/4D-NAH, 6/4E-NAH |
|
|
E4058 |
6/4D-NAH, 6/4E-NAH |
|
|
F6147 |
8/6E-NAH, 8/6F-NAH, 8/6R-NAH |
|
|
F6056 |
8/6E-NAH, 8/6F-NAH, 8/6R-NAH |
|
|
F6058 |
8/6E-NAH, 8/6F-NAH, 8/6R-NAH |
|
|
F6145HE2 |
8/6E-NAH, 8/6F-NAH, 8/6R-NAH |
|
|
FAM8147 |
10/8F-NAH |
|
|
G8147 |
10/8ST-NAH |
|
|
FAM10147 |
12/10F-NAH |
|
|
G10147 |
12/10ST-NAH |
|
|
FAM12147 |
14/12F-NAH |
|
|
G12147 |
14/12ST-NAH |
|
|
32056 |
50B-L |
L Low Abrasive Horizontal Slurry Pumps |
|
43056 |
75C-L |
|
|
64056 |
100D-L |
|
|
86056 |
150E-L |
|
|
108056 |
200E-L |
|
|
F8147 |
10/8E-M, 10/8F-M, 10/8R-M |
M Medium Duty Slurry Pump |
|
F10147 |
12/10F-M, 12/10R-M |
|
|
CH1127 |
1.5/1C-HH |
HH High Head Slurry Pumps |
|
DH2147 |
3/2D-HH |
|
|
EH3147 |
4/3E-HH |
|
|
FH4147 |
6/4F-HH |
|
|
SP4206 |
40PV-SP |
SP Vertical Slurry Pumps |
|
SP65206 |
65QV-SP |
|
|
SP10206 |
100RV-SP |
|
|
SP15206A |
150SV-SP |
|
|
SP20206 |
200SV-SP |
|
|
DAF4127 |
4RV-AF |
AF Froth Slurry Pump |
|
BAF2127 |
2QV-AF |
|
|
DG4137 |
6/4D-G |
G Gravel Sand Pump |
|
EG6137 |
8/6E-G |
|
|
FG8137 |
10/8F-G |
|
|
FG10137 |
12/10G-G |
|
|
GG12137 |
14/12G-G |
ShiJiaZhuang NaiPu Pump Co.,ltd is a professional slurry pump manufacture in Shijiazhuang,China. With the accumulation and development of 20 years, we have formed a complete system of pump design, selection, application, manufacture, marketing and maintenance.
Our products are widely used in metallurgy, power plant, coal washing, mining, sewage water treatment, dredging and chemical and petroleum industries.
The Main Pump Model as follows:
NP-AH, NP-HH,NP- M Slurry Pump
NP-SP(R)Series vertical slurry Pump
NP-L lower Abrasive Slurry Pump
NP- AF Series Froth Pump
WS series Dredging Pump
NP-G series Gravel sand Pump
ZJQ submersible slurry Pump
ZJG slurry pump
ZG Series Slurry Pump
ZJW Feeding Pump
Slurry Pump spare parts.
OEM pump, parts and wear plate liner, casing
NAH series
L(R) ,M
HH
SP(R)
G
AF Series
1.5/1B-NAH(R)
20A-L
1.5/1 C-HH
40PV-SP(R)
6/4D-G
2QV-AF
2/1.5B-NAH(R)
50B-L(R)
3/2D-HH
65QV-SP(R)
8/6E-G
3QV-AF
3/2C-NAH(R)
75C-L
4/3E-HH
100RV-SP(R)
10/8F-G
6SV-AF
4/3C-NAH(R)
100 D-L
4/3X-HH
150SV-SP(R)
10/8S-G
8SV-AF
6/4D-NAH(R)
150E-L
6/4F-HH
200SV-SP
12/10G-G
2AHF
6/4E-NAH(R)
300S-L
6/4X-HH
250TV-SP
14/12G-G
3AHF
8/6E-NAH(R)
10/8 R-M
6S-H
14/12T-G
4AHF
8/6R-NAH(R)
10/8 E-M
8/6S-H
16/14 G-G
6AHF
10/8F-NAH(R)
12/10F-M
8/6X-H
16/14TU-GH
10/8X-NAH(R)
6S-HP
16/14H-GH
12/10ST-NAH(R)
8/6S-HP
18/16G-G
14/12ST-NAH(R)
8/6X-HP
18/16 TU-GH
16/14TU-NAH(R)
20/18G(TU)-NAH(R)

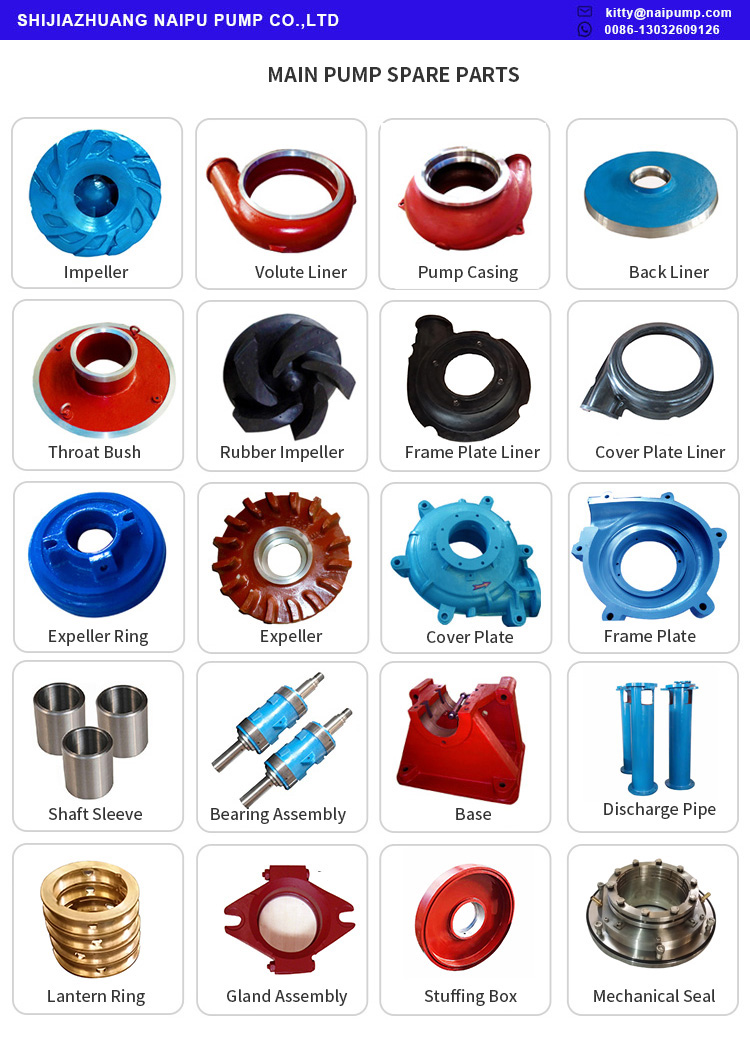

Main Slurry Pump Parts : Impeller , Volute Liner , Casing , ThroatBush, Frame Plate Liner Insert , Cover Plate , Frame Plate, Pump Liner Expeller , Expeller Ring ,Stuffing Box , Expeller , Pump Shaft , shaft sleeve, Shaft Spacer, Bearing Assembly , Base, Stuffing Box, Gland Assembly, Bearing Housing , Lantern Ring , pump discharge pipe , flange , and so on.
Shijiazhuang NaiPu Pump Co.,Ltd has its foundry workshop, machining workshop, assembly workshop, heat treatment equipment and advanced inspection tools.
Any requirement for Slurry sand pump and Spare parts , Welcome to contact me anytime.
