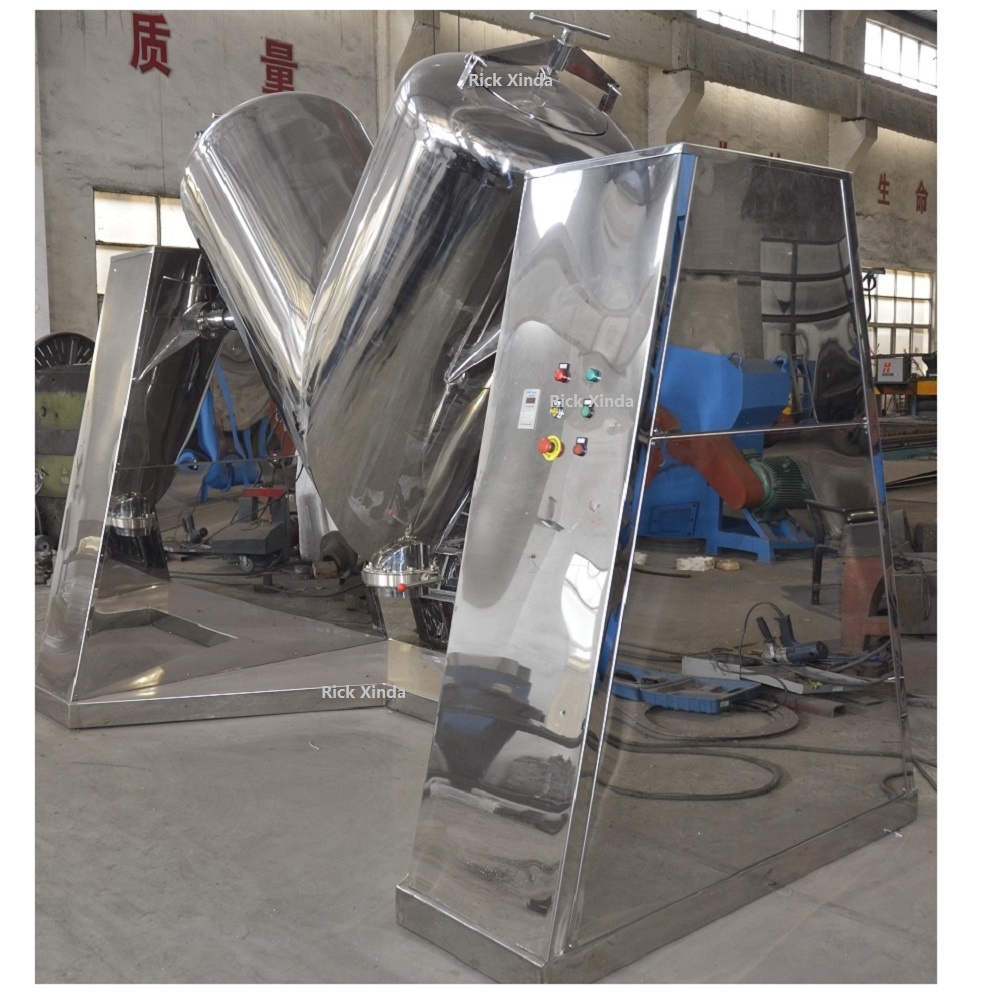

The Chemical mixing machine is used for blending dry granules powder materials in pharmacy, food, chemical industry.
Characteristics
I.Unique structure of mixing cylinder, high mixing efficiency, free of dead corner and even mixing.
II.The mixer is made of stainless steel both inside and outside with walls polished.
Note: Vacuum-feeding device should be equipped in addition.
Technical Data
| Model | 50 | 100 | 180 | 300 | 500 | 1000 | 1500 | 2000 |
| Capacity(kg/time) | 15 | 25 | 50 | 80 | 150 | 250 | 400 | 500 |
| Vacuum pump | W2 | W2 |
W3 (or) SK-1.5 |
W3 (or) SK-3 |
W3 (or) SK-3 |
W3 (or) SK-3 |
||
| Feeding time(min) | 4-6 | 6-9 | 6-10 | 12-18 | ||||
| Mixing tme(min) | 4-8 | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Total volume(m3) | 0.05 | 0.1 | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2 |
| Cylinder speed(r/min) | 20 | 16 | 15 | 15 | 12 | 12 | 12 | 10 |
| Motor power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
| Weight(kg) | 180 | 280 | 350 | 480 | 780 | 1050 | 1280 | 1700 |
| Rotation diameter(mm) | 680 | 900 | 1400 | 1600 | 1900 | 2400 | 2520 | 2900 |
| Overall size(L*W*H)(mm) |
1320*400 *1100 |
1470*720 *1350 |
1910*840 *1700 |
2210*1040 *1900 |
2500*1220 *2420 |
3200*1650 *2600 |
3190*1600 *3100 |
3800*1900 *3310 |
| Model | Capacity(kg/time) | Vacuum pamp | Feeding time(min) | Mxing time |
Tatal volume ( m3 ) |
Cylinder speed(r/min) | Motor power(kw) | Weight(kg) | Rotaion diameter(mm) | overall size(L*W*H)(mm) |
| 2500 | 650 | W4(or)SK-6 | 12-18 | 6-10 | 2.5 | 8 | 11 | 2300 | 3100 | 3990*1990*3790 |
