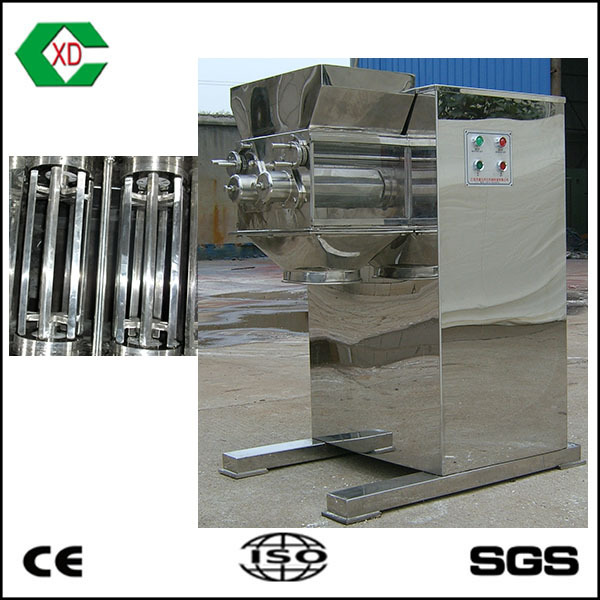

Food Medicine Double Cylinder Swing Granulator is depeloped on the basis of conventional swing granulator machine, can widely used for industries of pharmaceutical ,chemical and foodstuff. It can make the wet powder material into granule or crush dry lump material and granulate them quickly. It meets the GMP" Standard and is the ideal wet granulating machine.
The two cylinders swing to reciprocate in the same by the mechanical rotating, make the material into granules or crush it quickly. The machine has the characteristics of easy operation, high production, compact structure and small floor area. The machine is made of stainless steel sus304.
Technical Data
|
MODEL |
SYK-100B |
SYK-160B |
SYK-250B |
|
Capacity (kg/h) |
80-450 |
120-680 |
200-1000 |
|
motor power (kw) |
2.2 |
5.5 |
11 |
|
cylinder speed (r/min) |
55 |
55 |
40 |
|
swing angle (°) |
360 |
360 |
360 |
|
cylinder diameter (mm) |
Ф100x2 |
Ф160x2 |
Ф250x2 |
|
Weight (kg) |
380 |
650 |
950 |
|
Overall size (L×W×H) （mm） |
900×650×1100 |
1200×800×1300 |
1400×1050×1600 |
