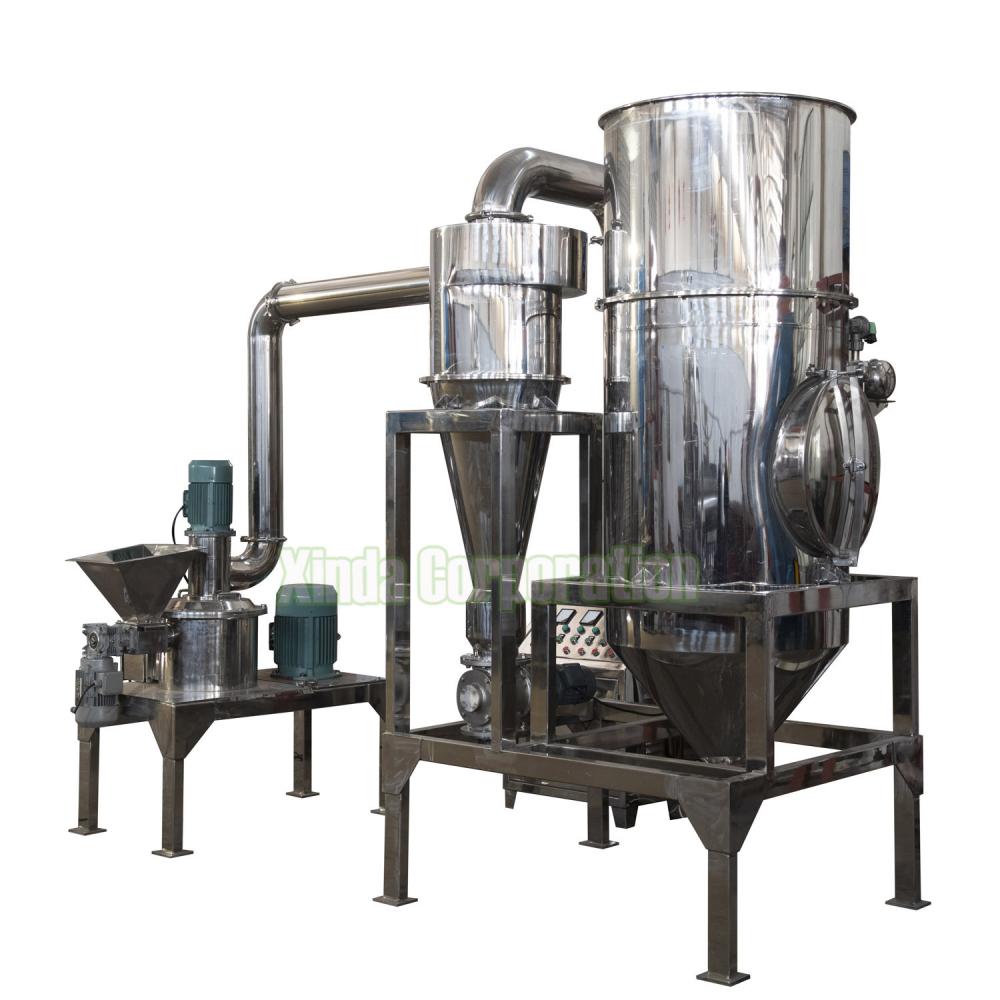

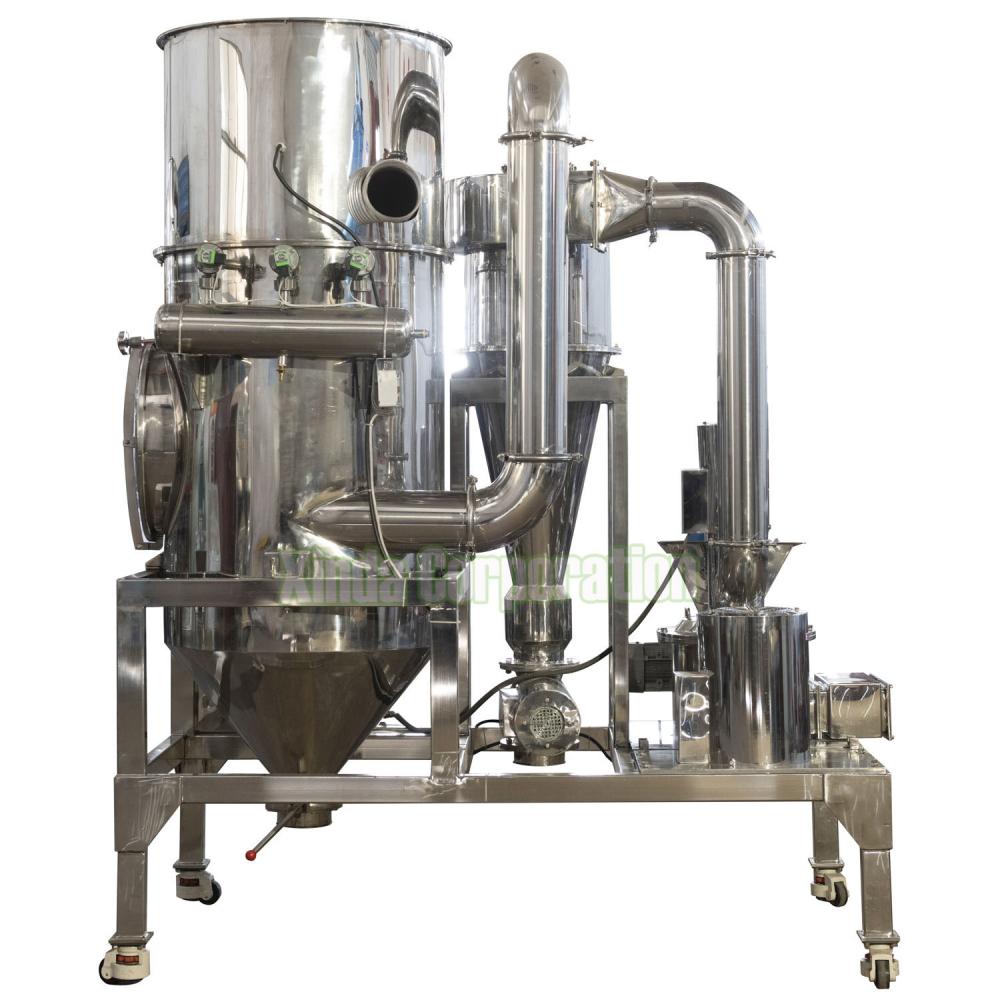

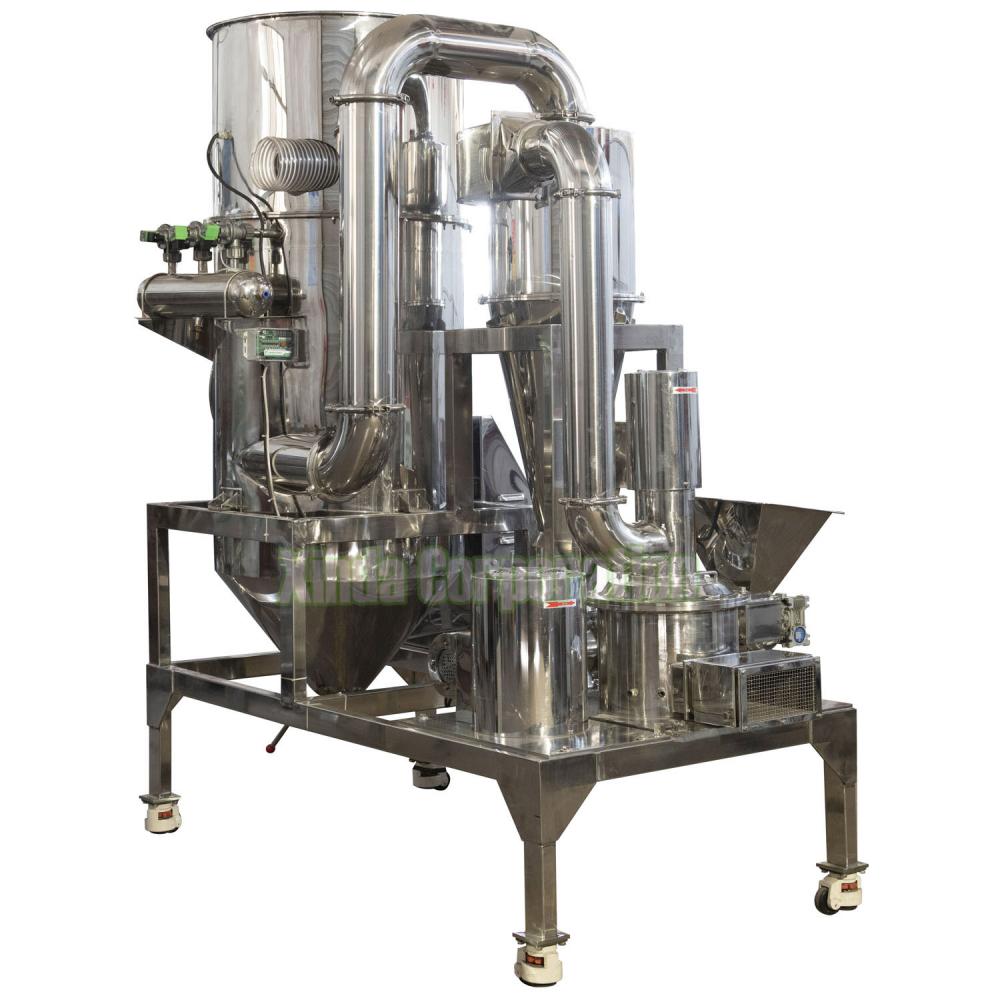

Ultra Fine Icing Sugar Powder Food Soybean Pulverizer is a high end and advanced powder pulverizer machine for sugar, grains and other food materials. The machine is composed of main motor, auxiliary motor and electrical control cabinet with the features of air classifying, impulse dust cleaning and cyclone continuously discharging.
This powder grinding machine meets the international advanced level and is suitable for the material grinding by the trade of and foodstuff etc.
Working principle:
Raw material is delivered to the grinding chamber via hopper by screw feeder and is crushed and sheared by the high speed cutters, then the material is moved into the cyclone separator and the drum dust filters by the negative pressure sucking The dust is collected and recycled via cloth bag or filter of dust absorption box .There is no dust flying during production,so as to improve the utilization and rease the production cost.
Specifications:
|
MODEL |
WFJ-15 |
WFJ-20 |
WFJ-30 |
WFJ-60 |
WFJ-80 |
WFJ-110 |
|
Capacity (kg/h) |
30-200 |
50-300 |
80-800 |
100-1200 |
150-2000 |
200-3000 |
|
Size of input granules （mm） |
≤10 |
≤10 |
≤10 |
≤12 |
≤15 |
≤20 |
|
Fineness of products (mesh) |
80-320 (adjustable) |
80-320 (adjustable) |
60-450 (adjustable) |
60-450 (adjustable) |
60-450 (adjustable) |
60-450 (adjustable) |
|
Total Power （kw） |
13.5 |
22 |
46 |
85 |
120 |
160 |
|
Main Shaft Speed (RPM) |
6000 |
4800 |
3800 |
3200 |
2800 |
2000 |
|
Weight (kg) |
900 |
1300 |
1800 |
3200 |
4200 |
6500 |
|
Overall size (L×W×H) （mm） |
2100×1250×2600 |
5600×1600×3300 |
6450×1800×3150 |
7500×2300×4530 |
8200×2500×4700 |
9600×2800×5200 |
