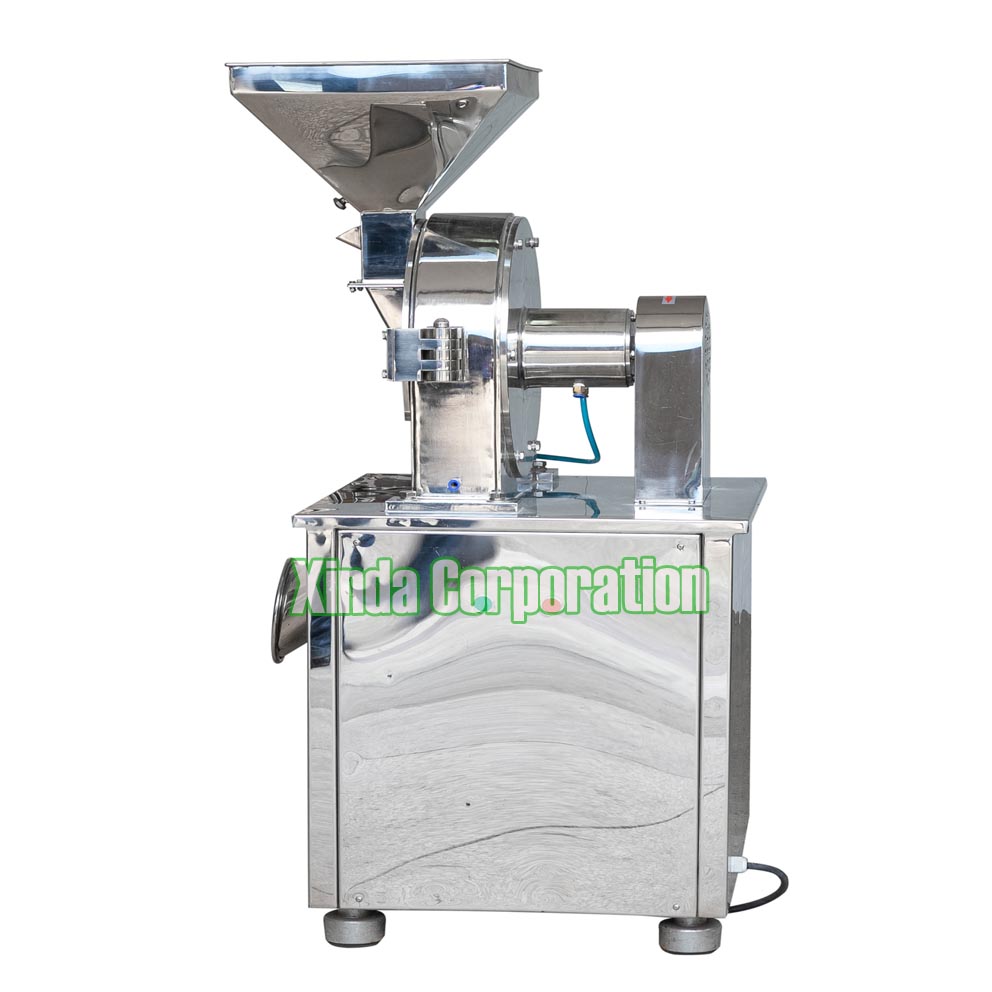

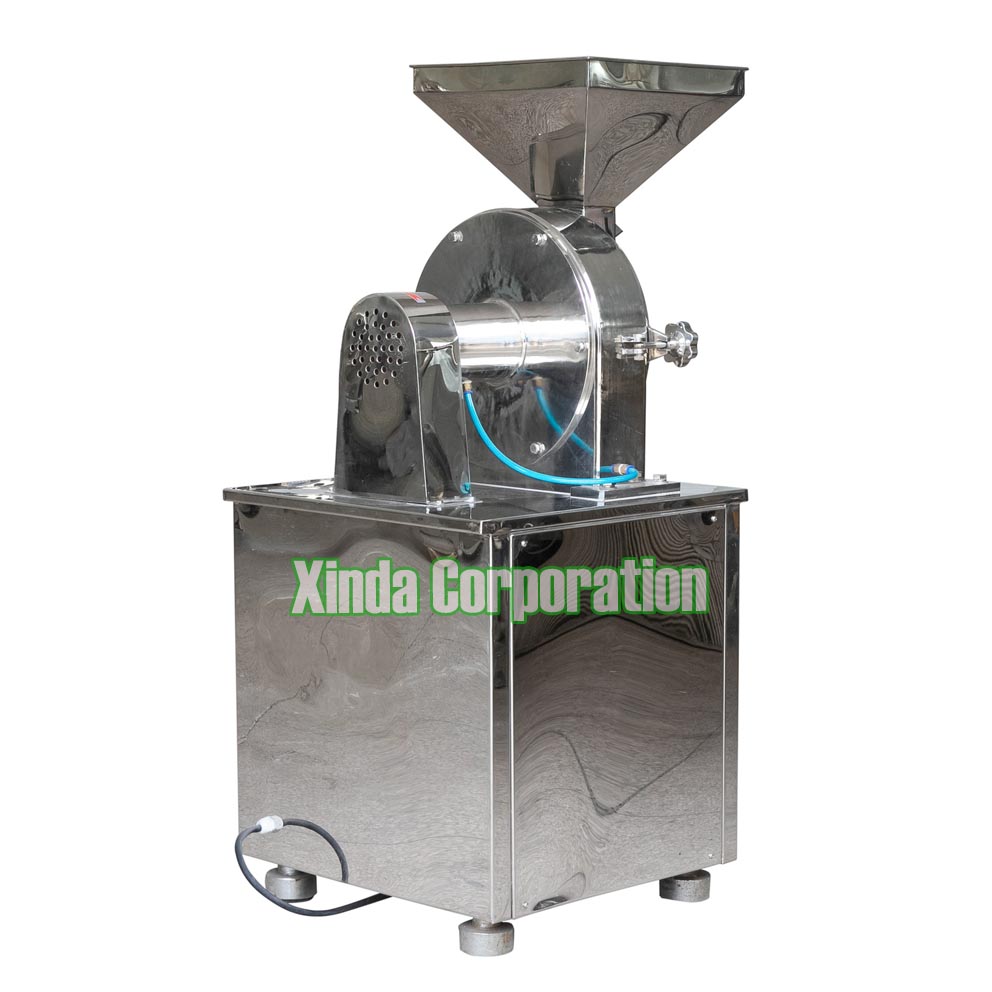

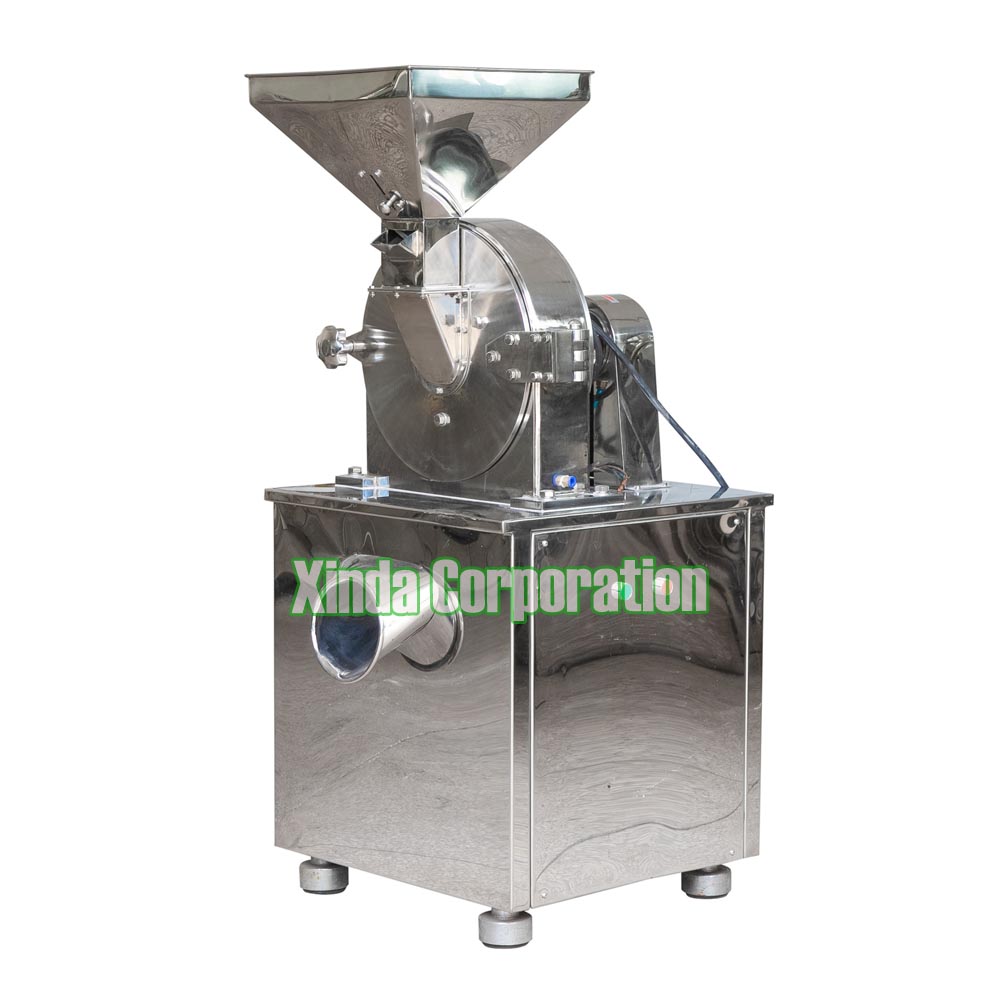

The crushing machine chamber is equipped with the wind wheel type high-speed rotary cutters so that the airflow in the chamber is strong enough to eliminate any heat in the chamber. It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.
The machine uses the wind wheel type high-speed rotary cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. The size of granules can be achieved by changing of the screen. The dust will be collected and recycled via cloth bag or filter of the dust box.
Specification:
|
MODEL |
FL 150 |
FL 250 |
FL 350 |
FL 500 |
|
Capacity (kg/h) |
20-80 |
30-200 |
50-300 |
80-500 |
|
Size of input granules (mm) |
< 10 |
< 10 |
< 12 |
< 15 |
|
Size of output granules |
12-120 |
12-120 |
12-120 |
12-120 |
|
crushing power (kw) |
2.2 |
5.5 |
7.5 |
11 |
|
Dust absorption power (kw) |
1.5 |
1.5 |
1.5 |
1.5 |
|
Speed of principal axis (r/min) |
3000 |
2900 |
2900 |
2800 |
|
Weight (kg) |
250 |
350 |
420 |
580 |
|
Overall size (L×W×H) (mm) |
1280×600×1450 |
1280×600×1550 |
1300×600×1650 |
1450×600×1780 |
If you are interested in the product, contact 2bvideo.com for more information for more information
