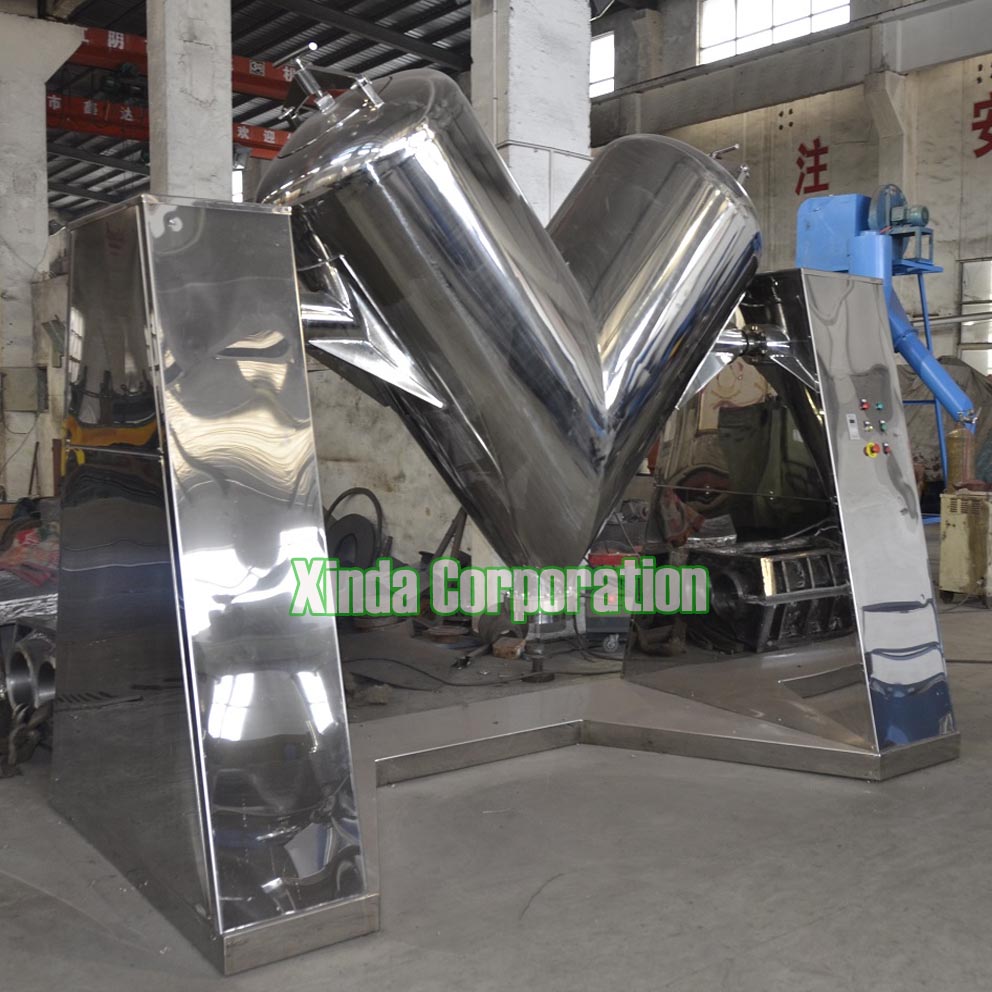

Food Coffee Milk Powder V Shaped Mixer has unique structure of v mixing cylinder, high mixing efficiency, free of dead corner and even mixing. The mixer is made of stainless steel, with inside and outside walls polished. The machine is an universal mixing equipment for all powder materials.
Features:
1. CE certified
2. Mirror Polished in stainless steel sus304
3. Solid built
4. Automatic Stop and mixing time pre set
Specification:
| Model | 180 | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 4000 |
| Capacity(kg/time) | 50 | 80 | 150 | 250 | 400 | 500 | 650 | 1000 |
| Vacuum pump | W2 | W2 | W3orSK-1.5 | W3orSK-3 | W3orSK-3 | W3orSK-3 | W4orSK-6 | W4orSK-6 |
| Feeding time(min) | 4-6 | 6-9 | 6-10 | 12-18 | 12-18 | 12-18 | ||
| Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Total volume(m³ ) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2 | 2.5 | 4 |
| Cylinder speed(r/min) | 15 | 15 | 12 | 12 | 12 | 10 | 8 | 6 |
| Motor power(kw) | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 |
| Weight(kg) | 350 | 480 | 780 | 1050 | 1280 | 1700 | 2300 | 3800 |
| Rotation diameter(mm) | 1400 | 1600 | 1900 | 2400 | 2520 | 2900 | 3100 | 3800 |
| Overall size(mm) | 1910*840*1700 | 2210*1040*1900 | 2500*1220*2420 | 3200*1650*2600 | 3190*1600*3100 | 3800*1900*3310 | 3800*1900*3790 | 4945*2200*4230 |
