The machine is designed for pulverizing various herbal spices materials such as ginger, nutmeg, black pepper,chili pepper etc to produce smooth fine spice herbal powdres for food spice, herbal medicine.

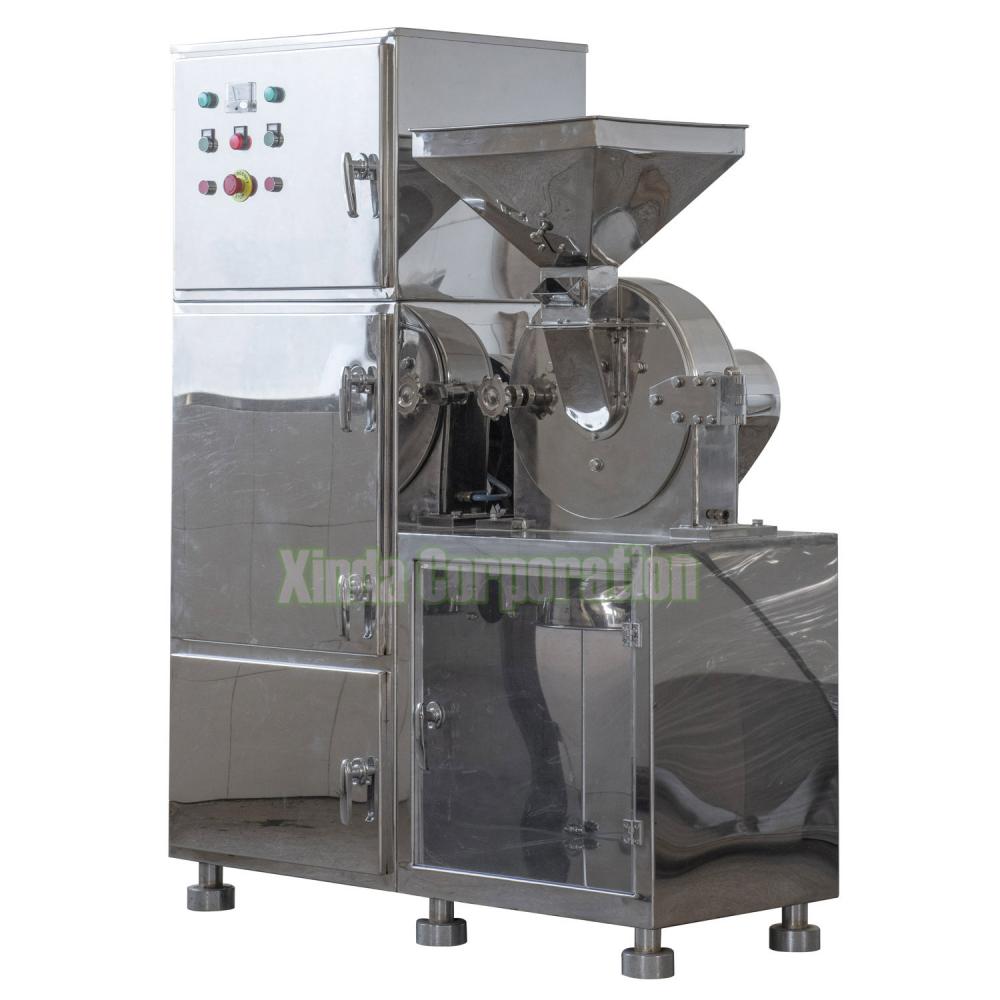

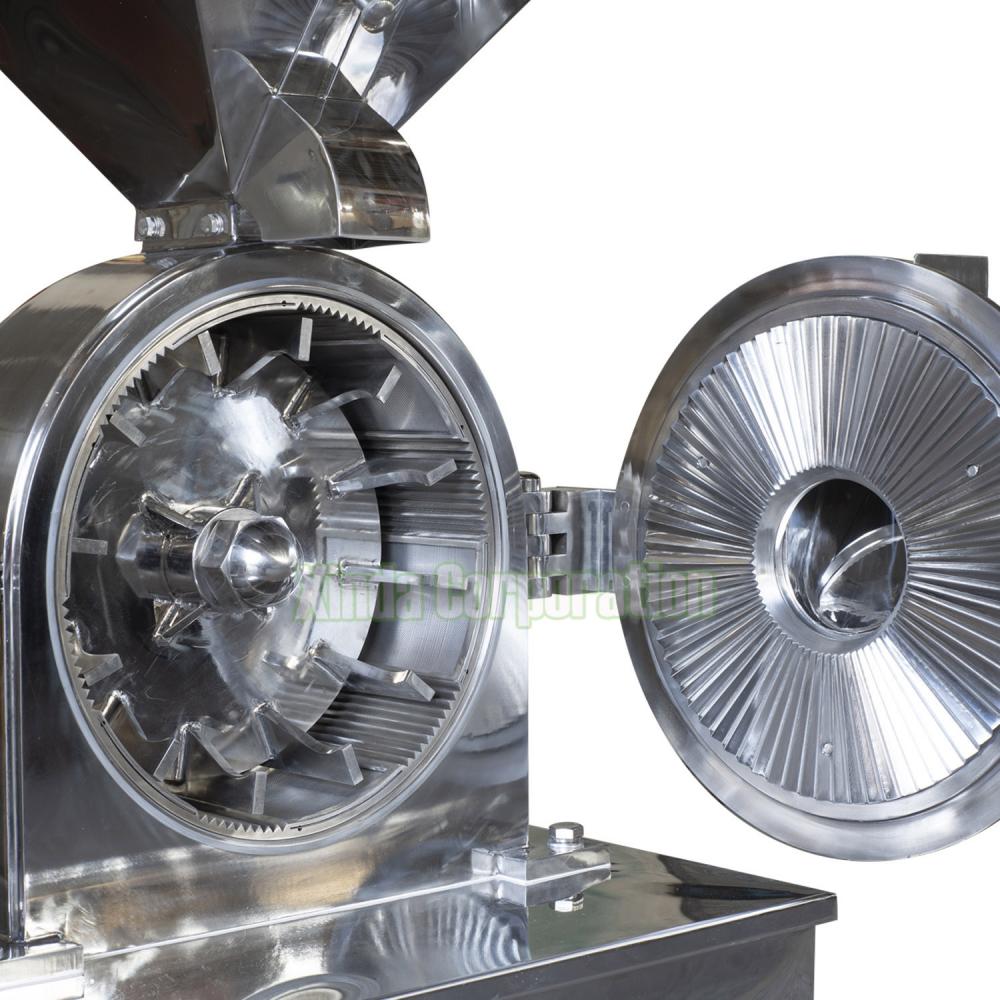

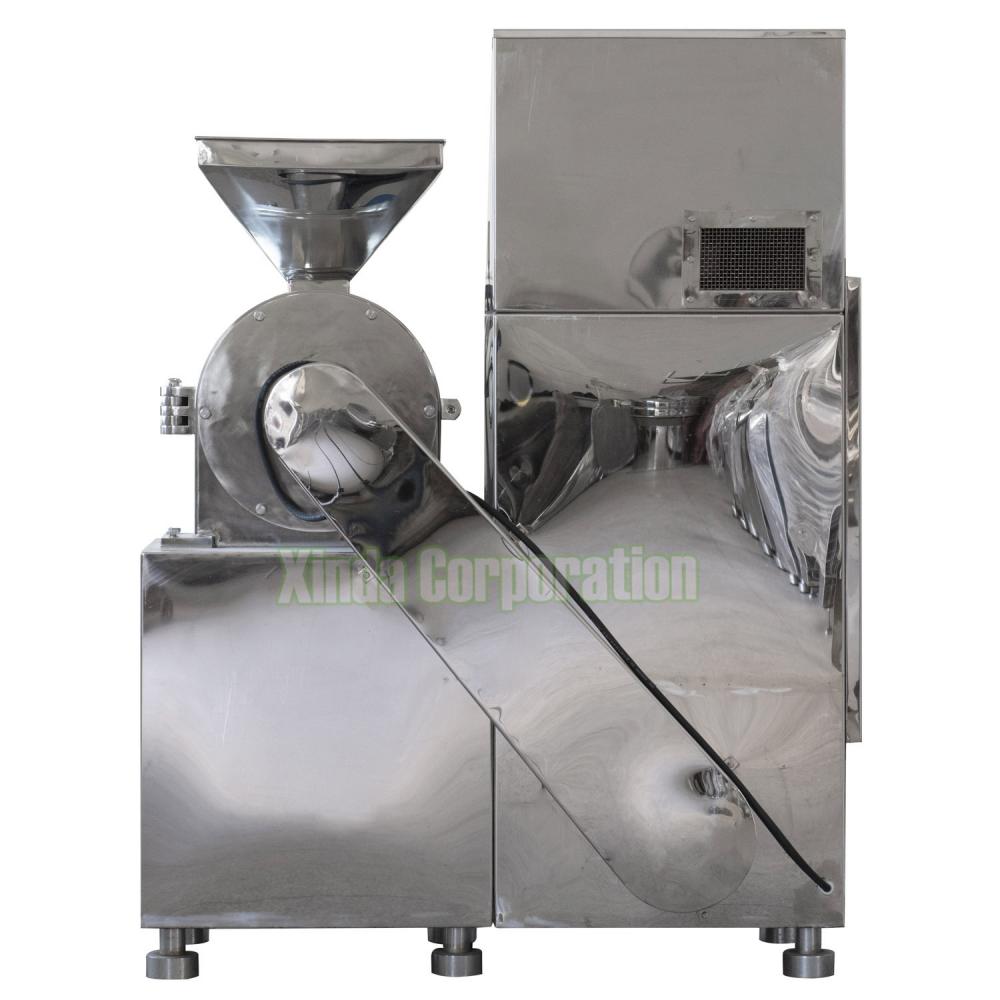

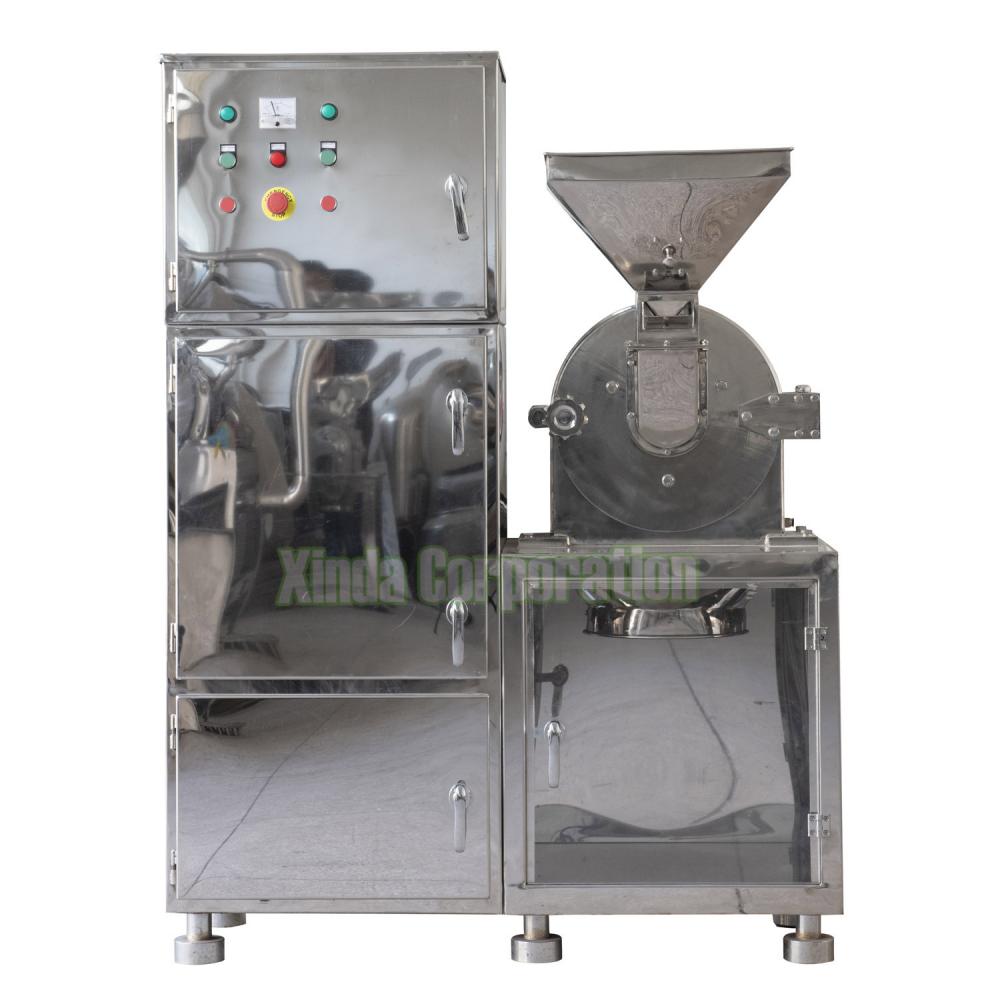

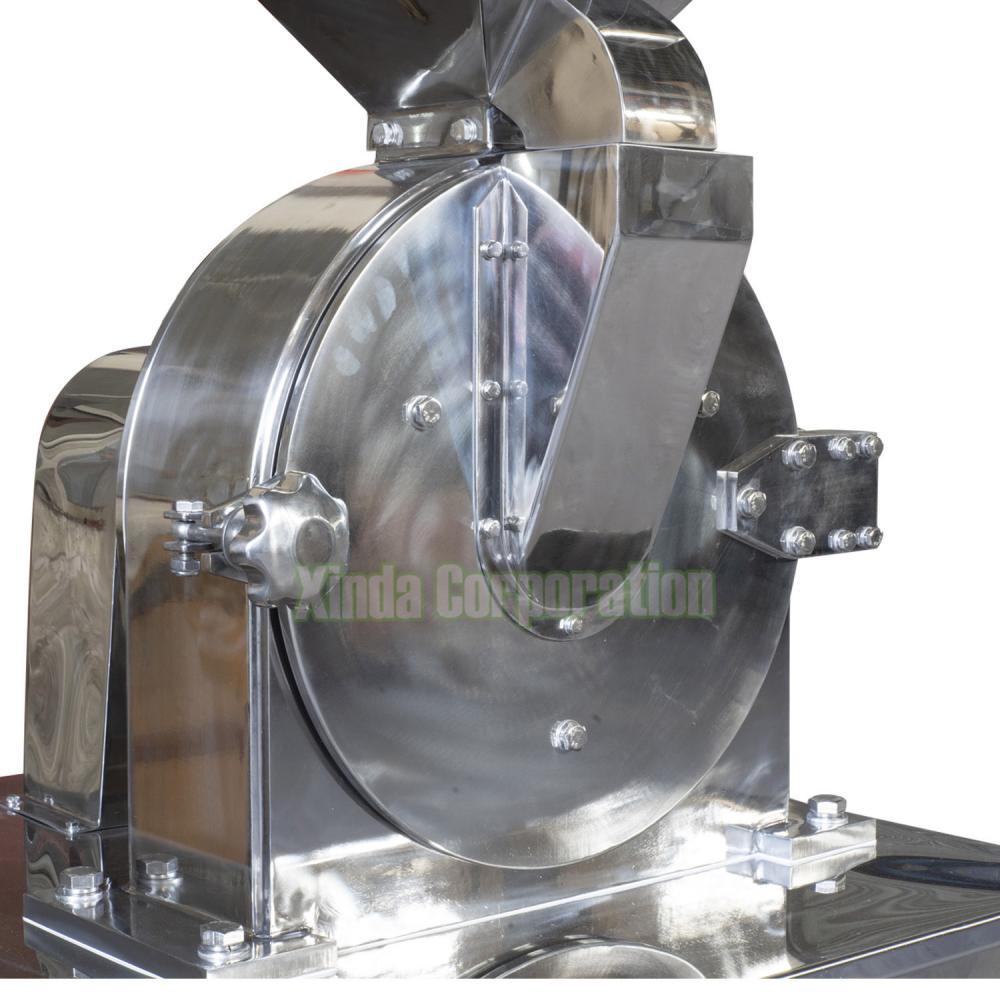

The machine is composed of grinding chamber, rotary blades, fixed teeth ring liner,machine base, motor, dust absorption cabinet, durm filter and Control panels. Materials is fed through hopper and then goes into grinding chamber and get crushed ground by high speed rotary blades agains the teethed ring liner. the output powder fineness is control by the surrouding screen nets. The whole machine is made in food grade stainless steel sus304, mirror polished. it is an ideal grinding machine, pulverizer for the industry.
| Model | 150B | 250B | 350B | 500B | |
| Capacity kg | 20-80 | 30-200 | 50-300 | 80-500 | |
| Size of input granule mm | <10 | <10 | <12 | <15 | |
| Size of output granules(Mesh) | 12-120 | 12-120 | 12-120 | 12-120 | |
| Crushing power kw | 2.2 | 5.5 | 11 | 22 | |
| Dust absorption power kw | 1.5 | 1.5 | 1.5 | 1.5 | |
| Speed of principal axis rpm | 3000 | 2900 | 2900 | 2800 | |
| Weight kg | 250 | 420 | 620 | 900 | |
| Overall size mm (L×W×H) | 1280×600×1450 | 1280×600×1550 | 1300×600×1650 | 1450×600×1850 |
